UGC DOR5985719
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$151.20 CAD - $151.20 CAD
$151.20 CAD
$151.20 CAD - $151.20 CAD
$151.20 CAD

Vendu en lots de : 1

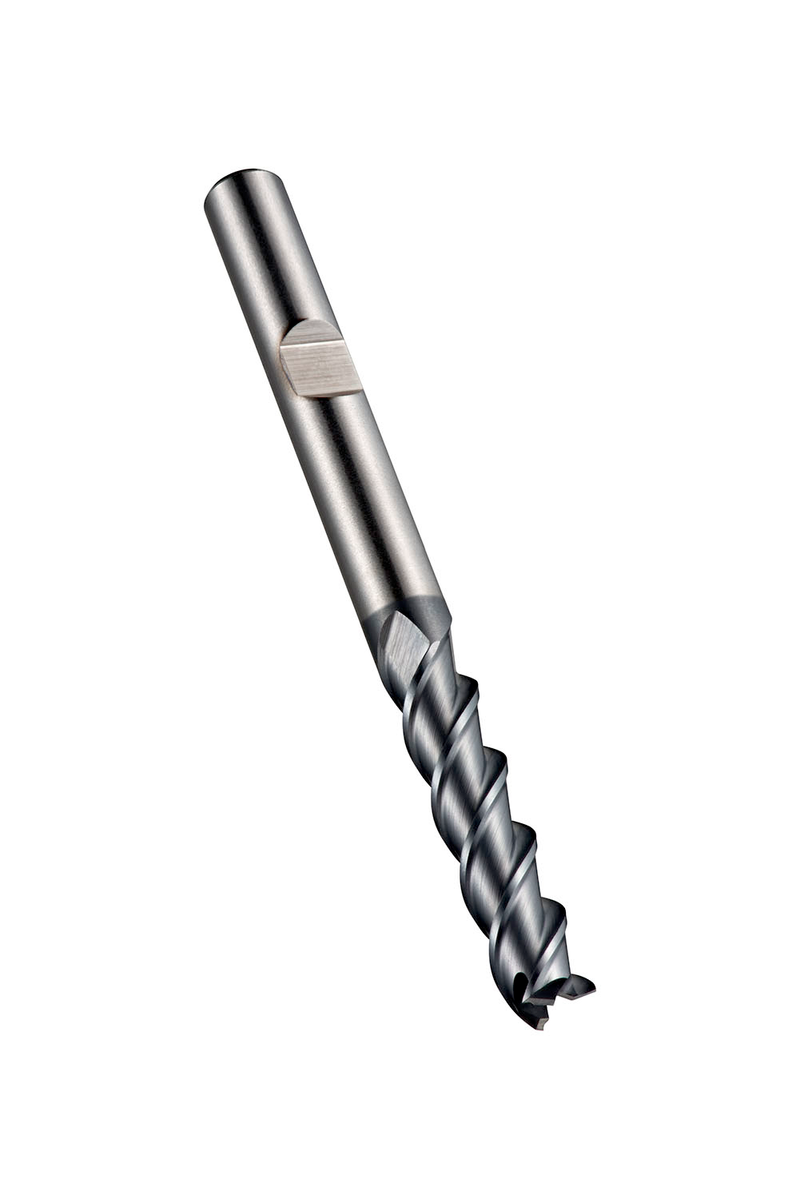

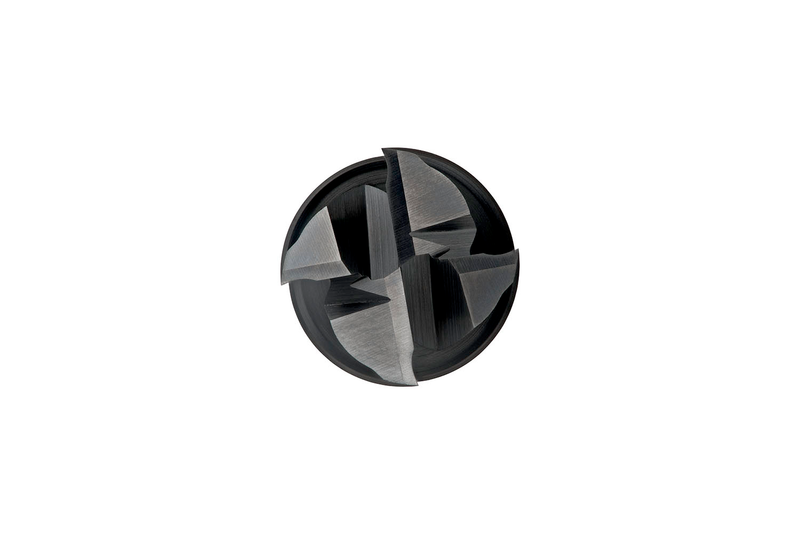

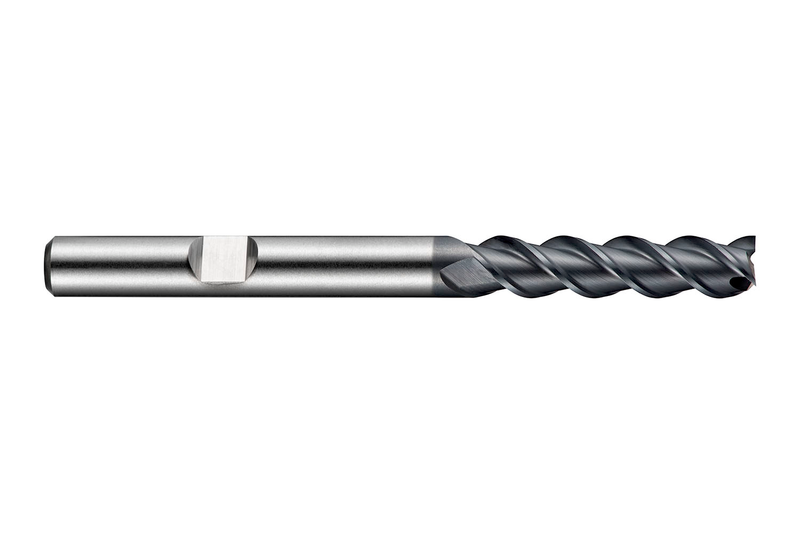

Fraise en bout longue série 4 dents, diamètre 14mm avec 53mm de longueur de coupe, 110mm de longueur totale et 64.5mm de dégagement avec collet, selon la norme DIN 844 L avec une queue Weldon 12mm, en HSS-E métallurgie des poudres avec revêtement Alcrona, hélice 45° et angle de dépouille 12° pour le fraisage d'épaulement et le fraisage de rainures dans les aciers non alliés, alliés et à outils, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C92014.0
GradeALCRONA
Product Number5985719
Product FamilyC920
Insert Geometry
Depth of Cut Max — in (APMX)2.0866"
Depth of Cut Max — mm (APMX)53.0 mm

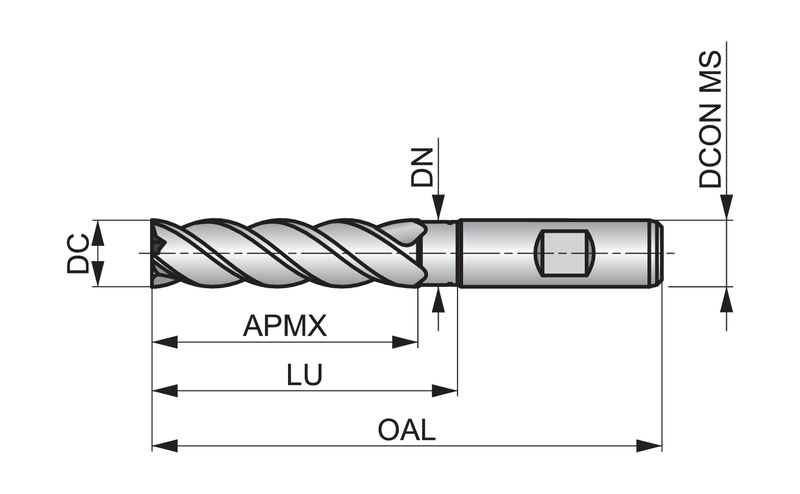

Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Usable Length — mm (LU)64.5 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)45.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number76156
EAN7320760076156
File Type Download
C92014.0 — Line Drawing PDF Download
