D763125.0X3.0
D763125.0X3.0
D763125.0X3.0

D763125.0X3.0

UGC DOR5985724
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$925.71 CAD - $925.71 CAD
$925.71 CAD
$925.71 CAD - $925.71 CAD
$925.71 CAD

Vendu en lots de : 1

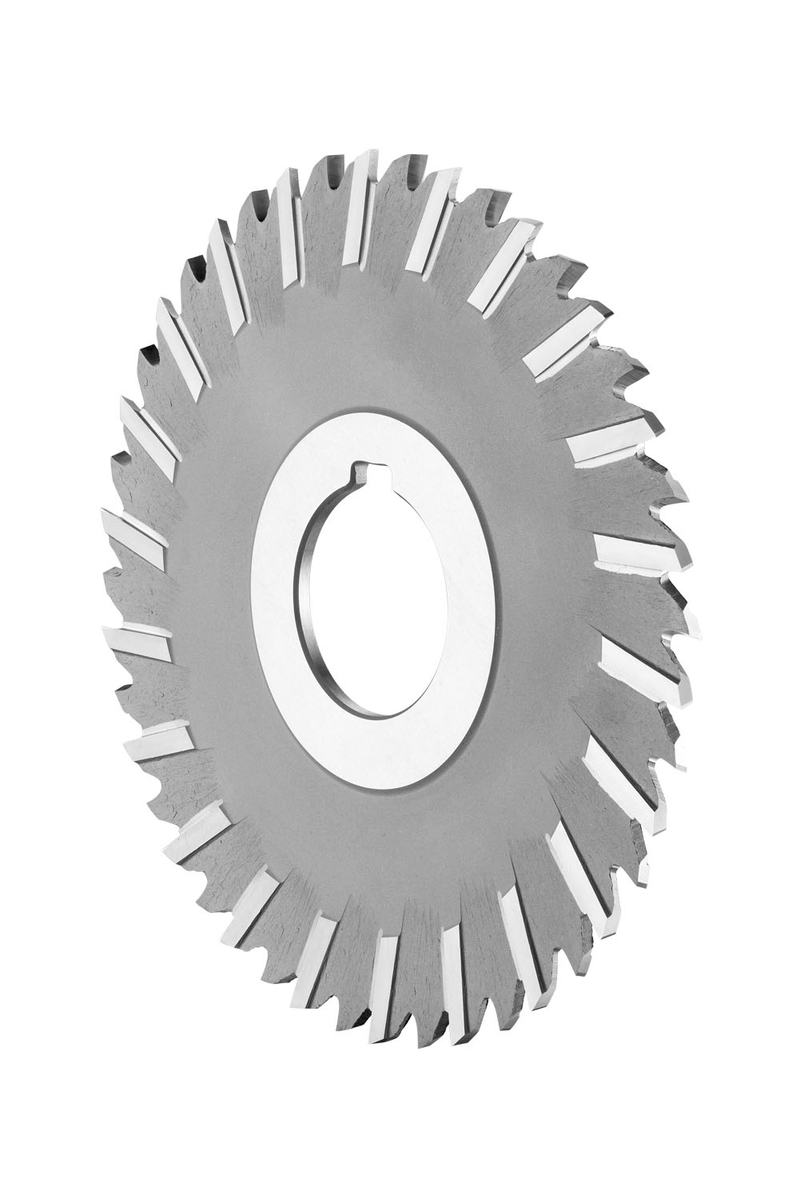

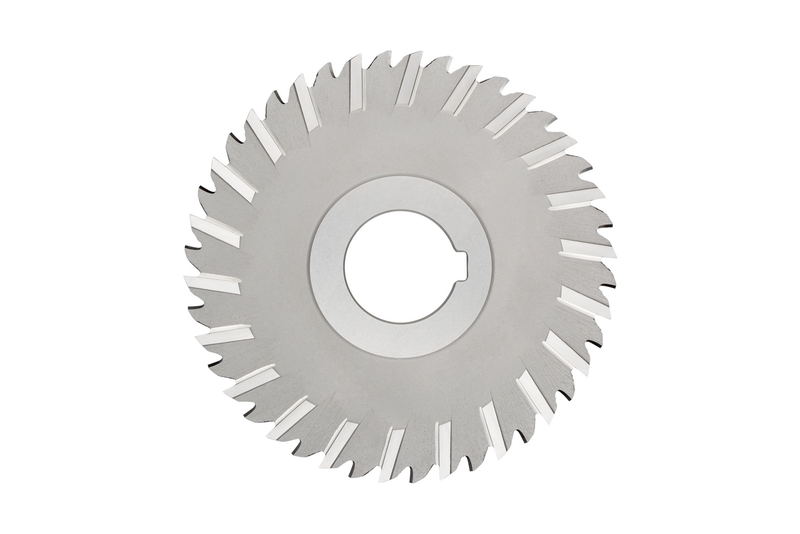

Fraise-scie à 44 dents, diamètre 125mm avec largeur de coupe 3mm, selon la norme DIN 885 A avec un alésage de 32mm avec rainure de clavette, en HSS-E à base de cobalt avec finition brillante, hélice de 15° et angle de dépouille de 10° pour le tronçonnage, l'entaillage peu profond et l'entaillage profond dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI)D763125,0X3,0
Product Name (ISO)D763125.0X3.0
GradeLumineux
Product Number5985724
Product FamilyD763
Dimensions
Cutting Diameter — in (DC)4.9213"
Cutting Diameter — mm (DC)125.0 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)44
Helix Angle (FHA)15.0°
Tool Information
StandardDIN 885 A
Reference Numbers
EDP Number78273
EAN7320760078273
File Type Download

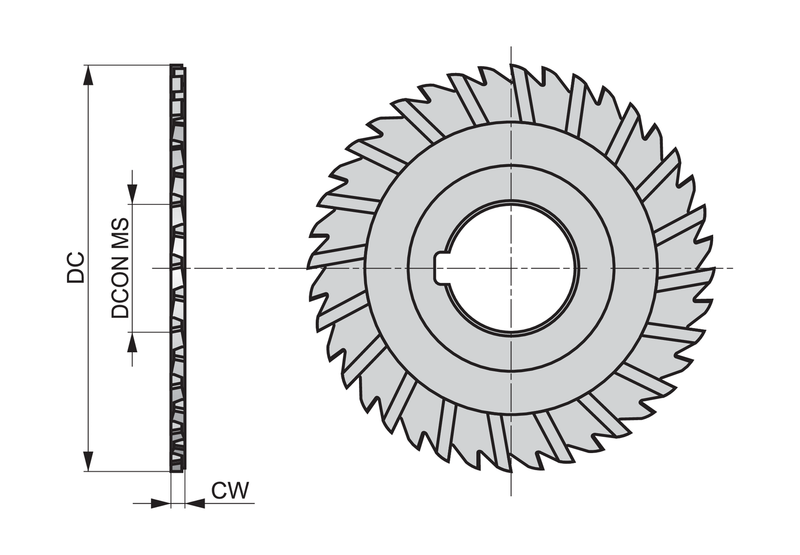

D763125.0X3.0 — Line Drawing PDF Download
