D76363.0X1.6
D76363.0X1.6
D76363.0X1.6

D76363.0X1.6

UGC DOR5985735
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$397.71 CAD - $397.71 CAD
$397.71 CAD
$397.71 CAD - $397.71 CAD
$397.71 CAD

Vendu en lots de : 1

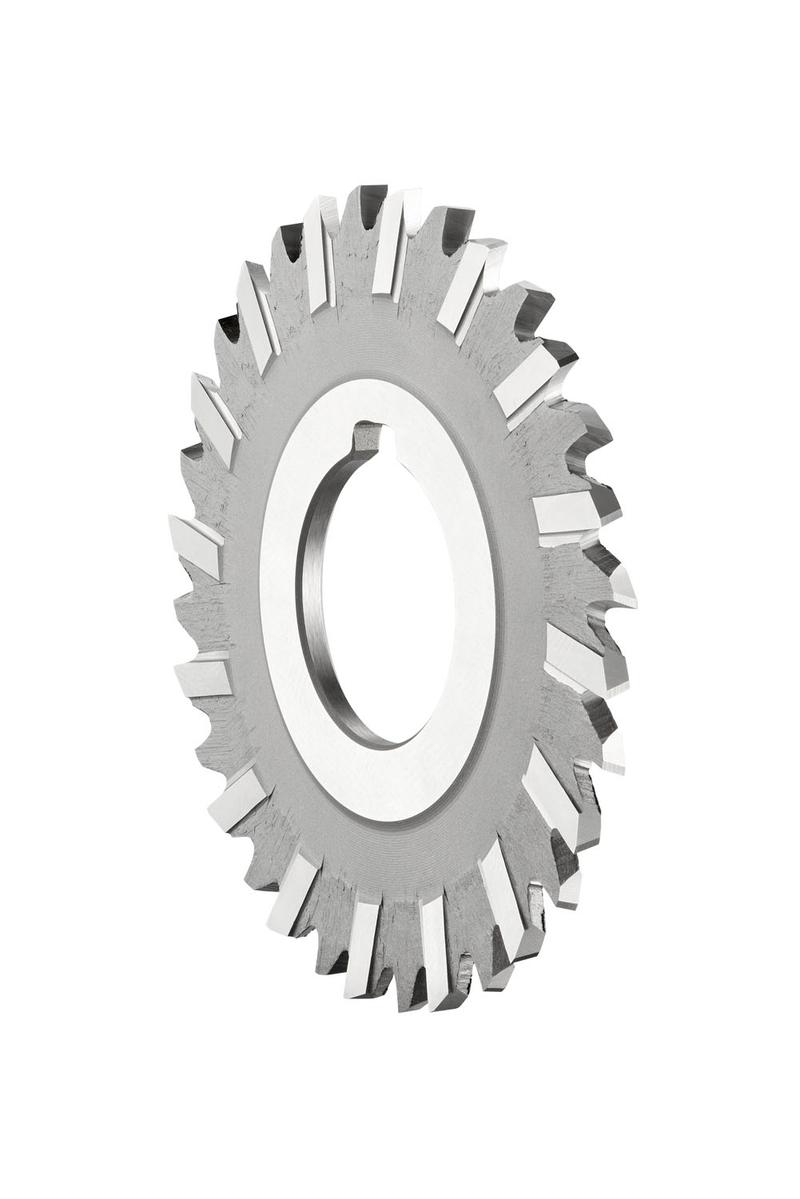

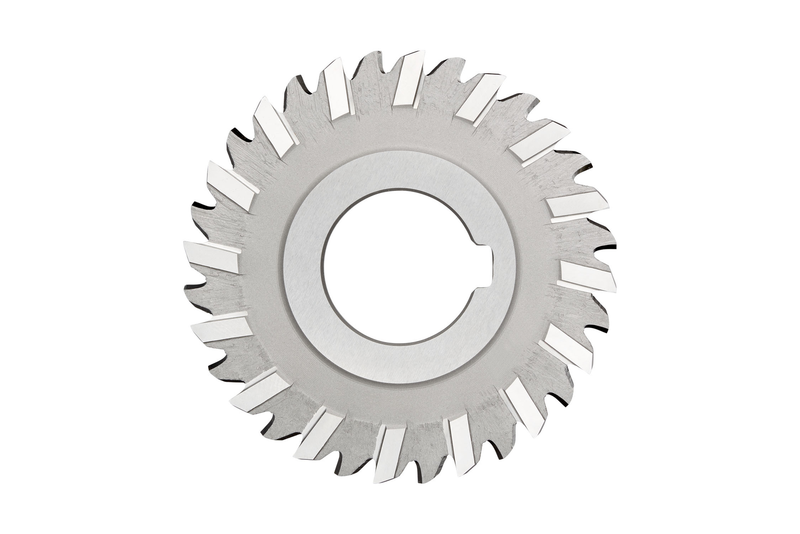

Fraise-scie à 32 dents, diamètre 63mm et largeur de coupe de 1,6mm, selon la norme DIN 885 A avec alésage de 22mm avec rainure de clavette, en HSS-E à base de cobalt avec finition brillante, hélice de 15° et angle de dépouille de 10° pour le tronçonnage, le rainurage peu profond et le rainurage profond dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D76363.0X1.6
GradeLumineux
Product Number5985735
Product FamilyD763
Dimensions
Cutting Diameter — in (DC)2.4803"
Cutting Diameter — mm (DC)63.0 mm
Connection Dia. — in (DCON)0.8661"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)32
Helix Angle (FHA)15.0°
Tool Information
StandardDIN 885 A
Reference Numbers
EDP Number78426
EAN7320760078426
File Type Download

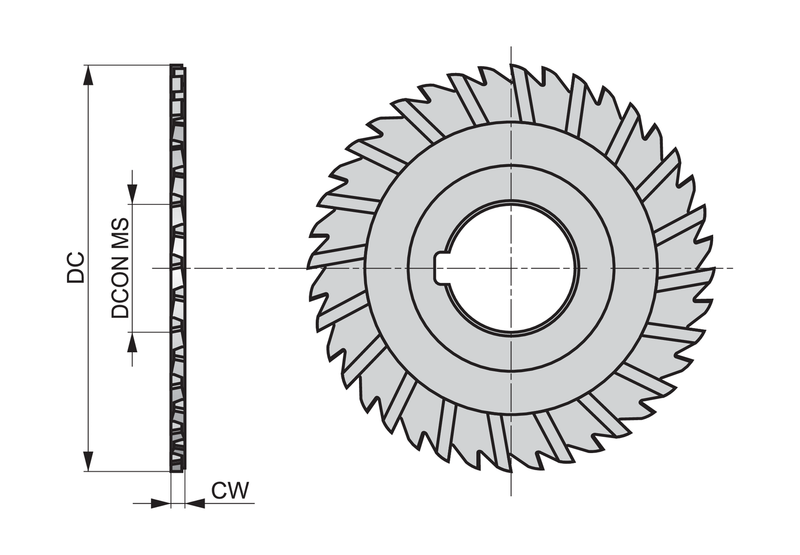

D76363.0X1.6 — Line Drawing PDF Download
