D76363.0X2.0
D76363.0X2.0
D76363.0X2.0

D76363.0X2.0

UGC DOR5985739
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$400.00 CAD - $400.00 CAD
$400.00 CAD
$400.00 CAD - $400.00 CAD
$400.00 CAD

Vendu en lots de : 1

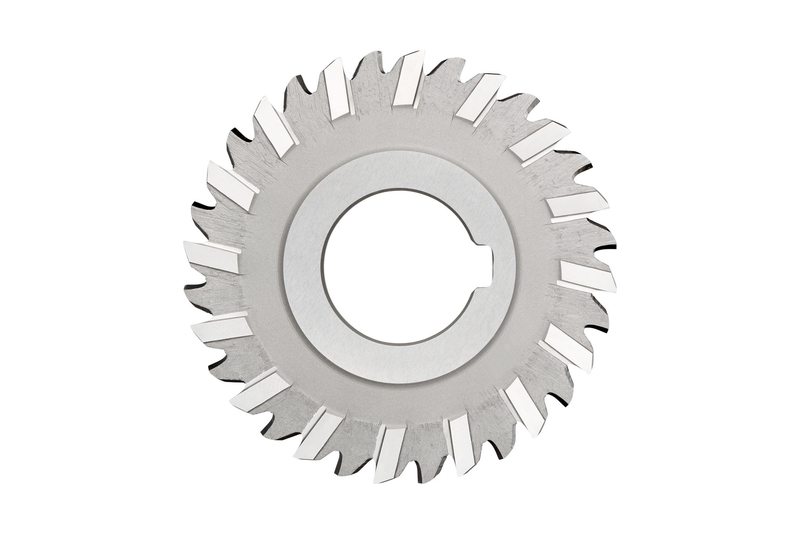

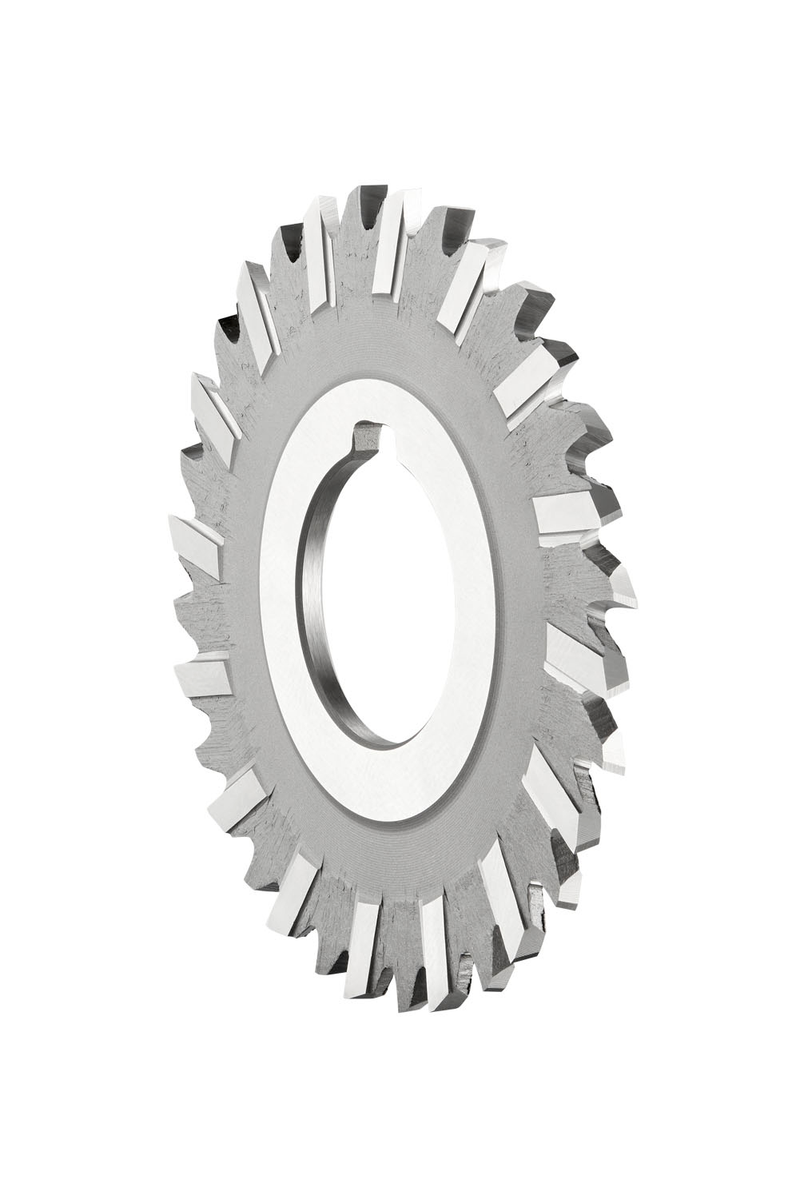

Fraise-scie à 32 dents, diamètre 63mm et largeur de coupe 2mm, conforme à la norme DIN 885 A avec alésage 22mm et rainure de clavette, HSS-E à base de cobalt avec finition brillante, hélice 15° et angle de dépouille 10° pour le tronçonnage, l'usinage de gorges peu profondes et profondes dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D76363.0X2.0
GradeLumineux
Product Number5985739
Product FamilyD763
Dimensions
Cutting Diameter — in (DC)2.4803"
Cutting Diameter — mm (DC)63.0 mm
Connection Dia. — in (DCON)0.8661"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)32
Helix Angle (FHA)15.0°
Tool Information
StandardDIN 885 A
Reference Numbers
EDP Number78433
EAN7320760078433
File Type Download

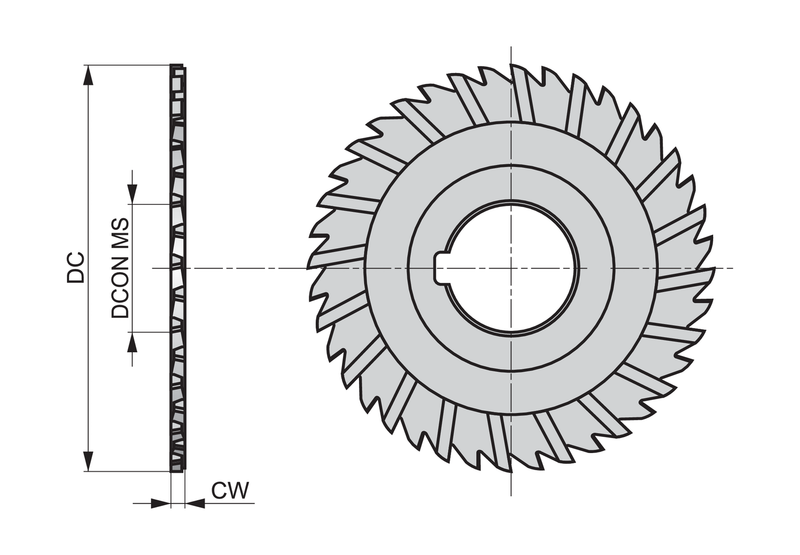

D76363.0X2.0 — Line Drawing PDF Download
