UGC DOR5985772
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$66.60 CAD - $66.60 CAD
$66.60 CAD
$66.60 CAD - $66.60 CAD
$66.60 CAD

Vendu en lots de : 1

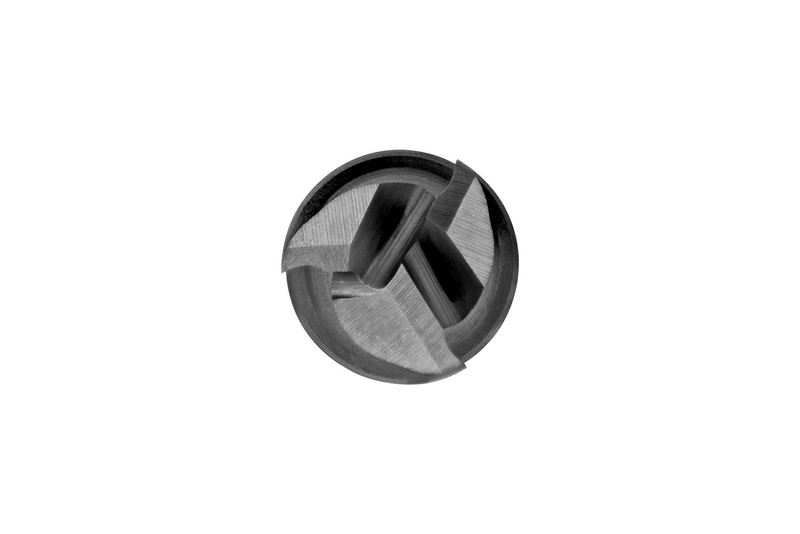

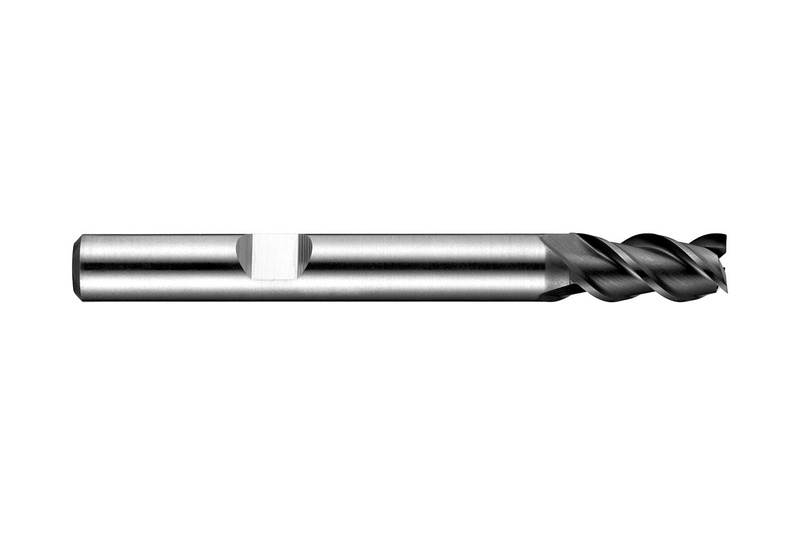

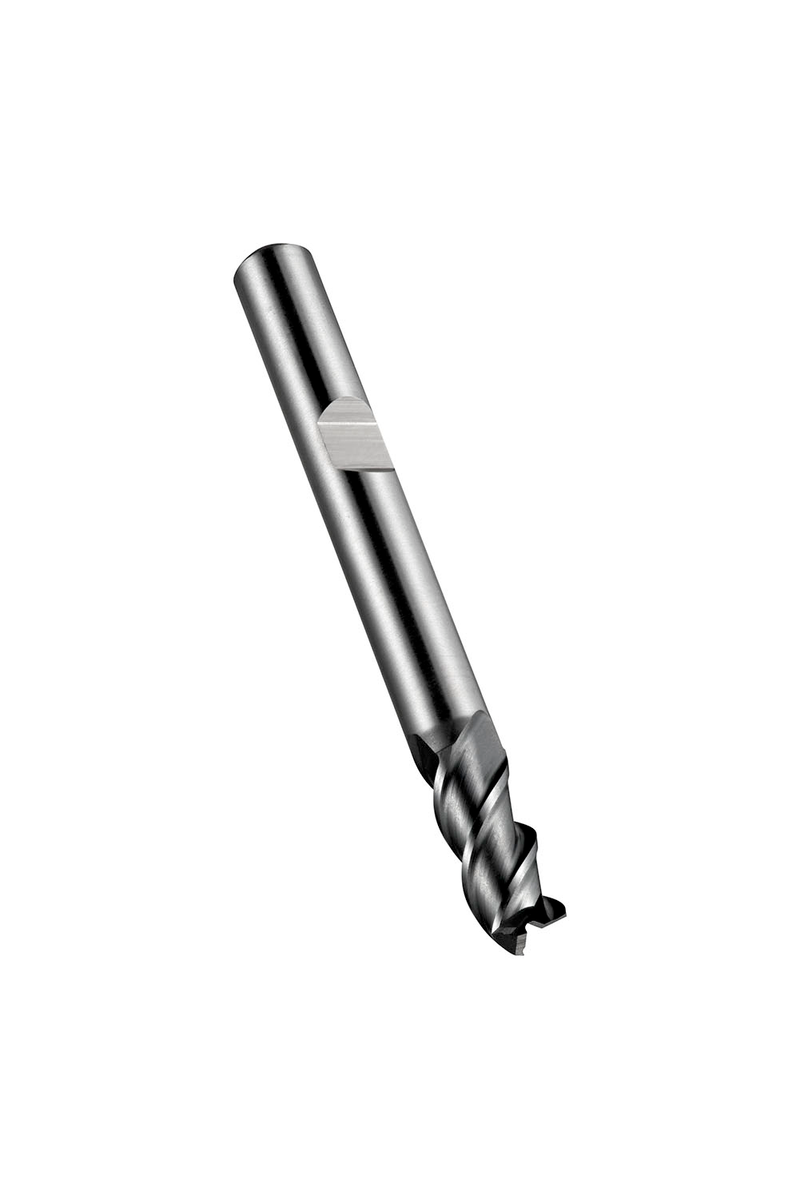

Fraise en bout série courte 3 dents, diamètre 6mm avec longueur de coupe 13mm et longueur totale 57mm, selon norme DIN 844 K avec queue Weldon 6mm, HSS-E métallurgie des poudres avec revêtement Alcrona, hélice 45° et angle de dépouille 12° pour le fraisage d'épaulement, le fraisage de rainures et l'interpolation hélicoïdale dans l'acier au carbone, l'acier allié et l'acier à outils, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C9076.0
GradeALCRONA
Product Number5985772
Product FamilyC907
Insert Geometry
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm

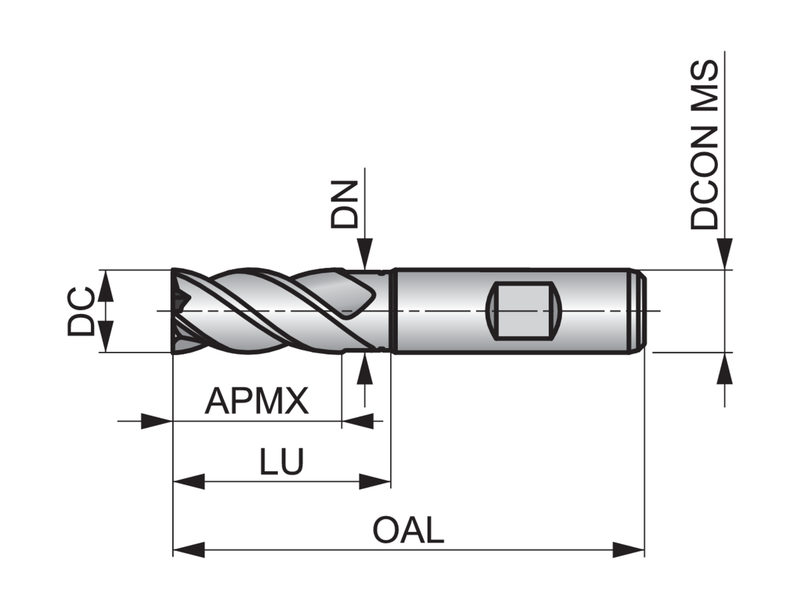

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)45.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number75968
EAN7320760075968
File Type Download
C9076.0 — Line Drawing PDF Download
