C83012.0X60
C83012.0X60
C83012.0X60
C83012.0X60

C83012.0X60

UGC DOR5985786
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$142.19 CAD - $142.19 CAD
$142.19 CAD
$142.19 CAD - $142.19 CAD
$142.19 CAD

Vendu en lots de : 1

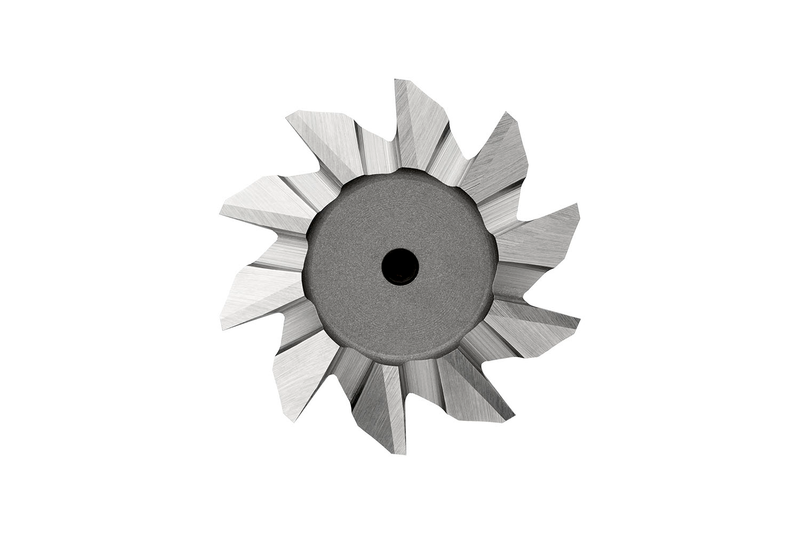

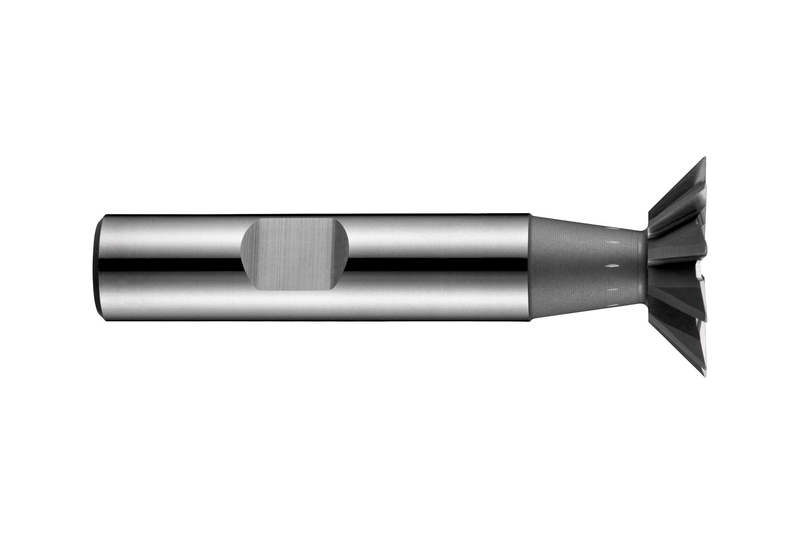

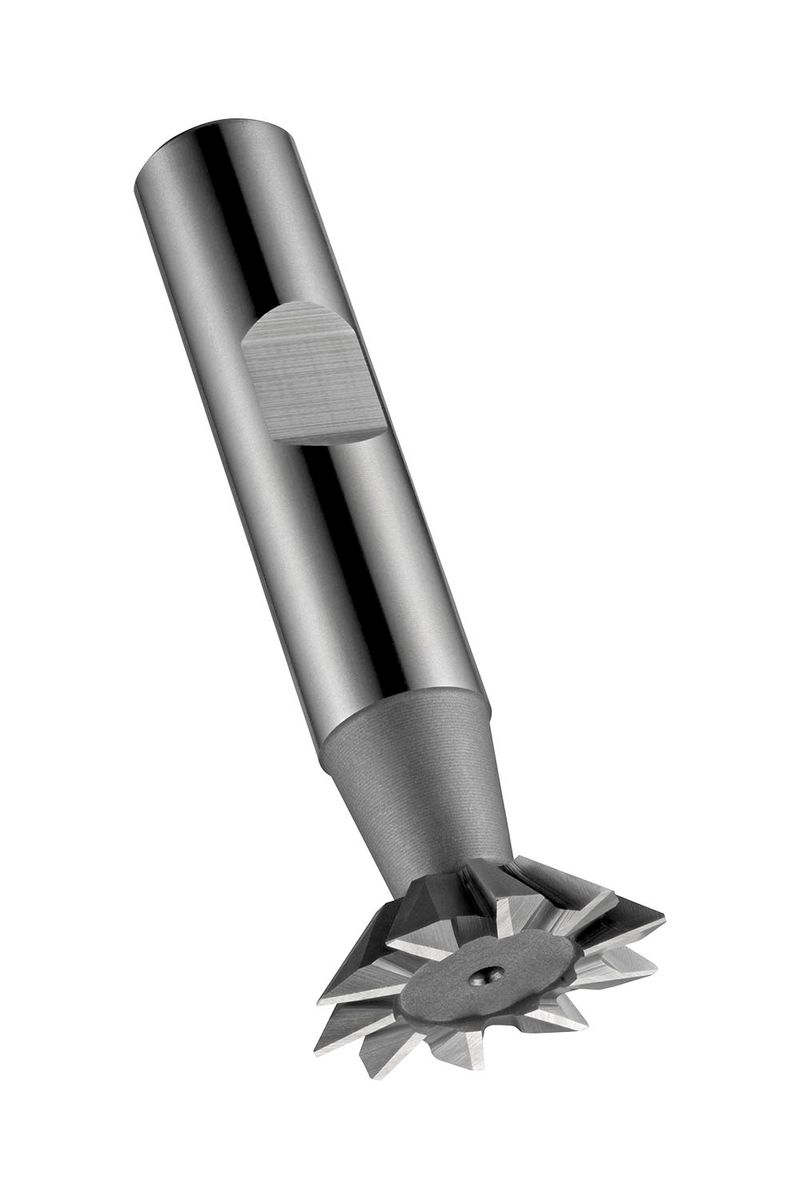

Fraise à queue d'aronde 60° à 10 dents, diamètre 12mm avec profondeur de coupe 5mm et longueur totale 54mm, selon la norme DIN 1833 C avec queue Weldon 10mm, HSS-E au cobalt avec finition brillante, hélice 0° et angle de dépouille 0° pour le fraisage de rainures en queue d'aronde dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C83012.0X60
GradeLumineux
Product Number5985786
Product FamilyC830

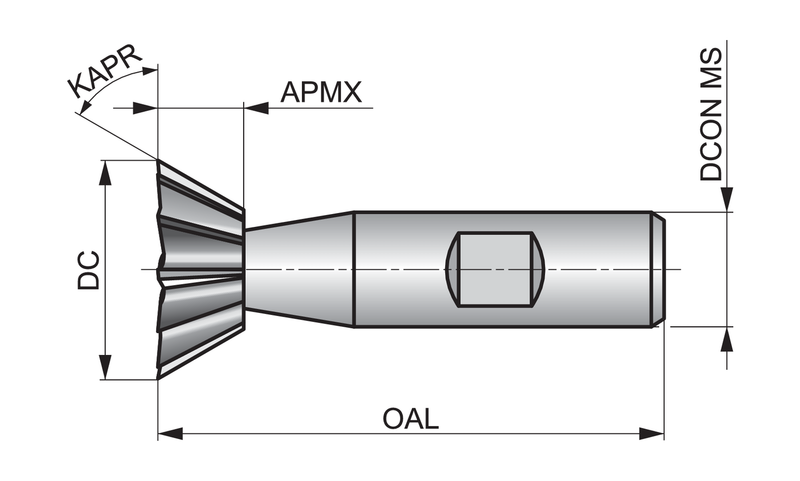

Insert Geometry
Depth of Cut Max — in (APMX)0.1969"
Depth of Cut Max — mm (APMX)5.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.126"
Overall Length — mm (OAL)54.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)10
Helix Angle (FHA)0.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 1833 C
Reference Numbers
EDP Number75005
EAN7320760075005
File Type Download
C83012.0X60 — Line Drawing PDF Download
