C83016.0X45
C83016.0X45
C83016.0X45
C83016.0X45

C83016.0X45

UGC DOR5985790
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$142.71 CAD - $142.71 CAD
$142.71 CAD
$142.71 CAD - $142.71 CAD
$142.71 CAD

Vendu en lots de : 1

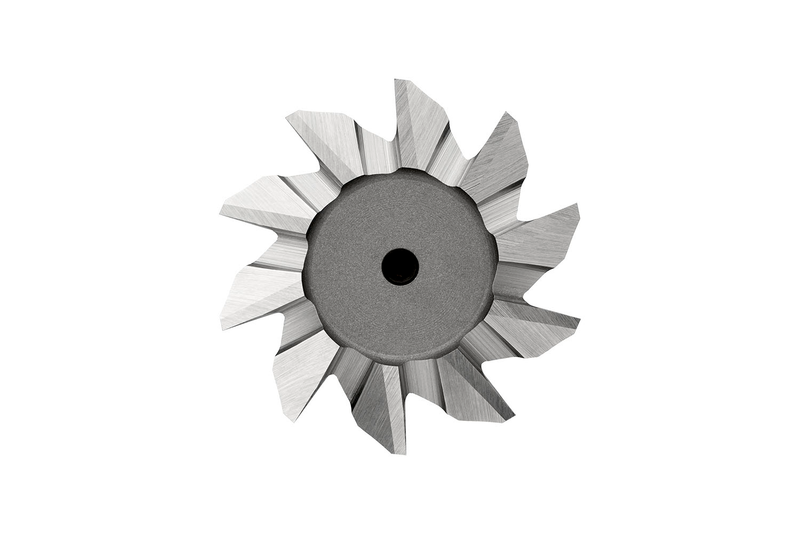

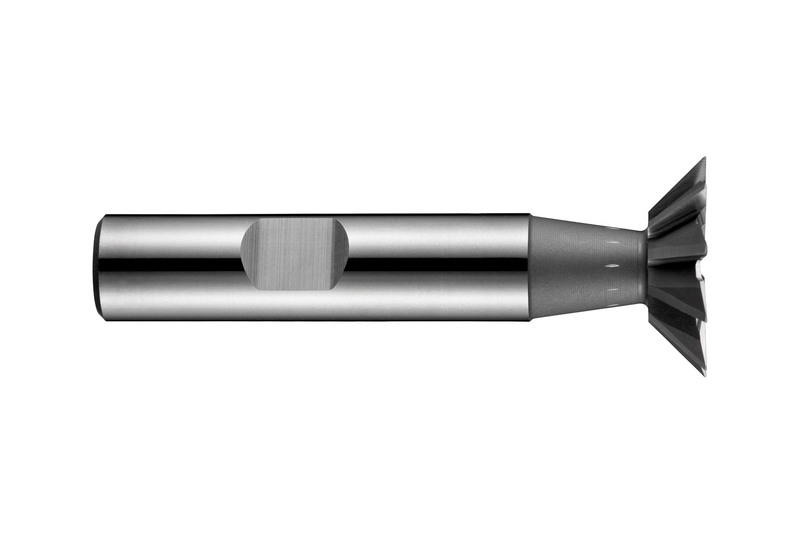

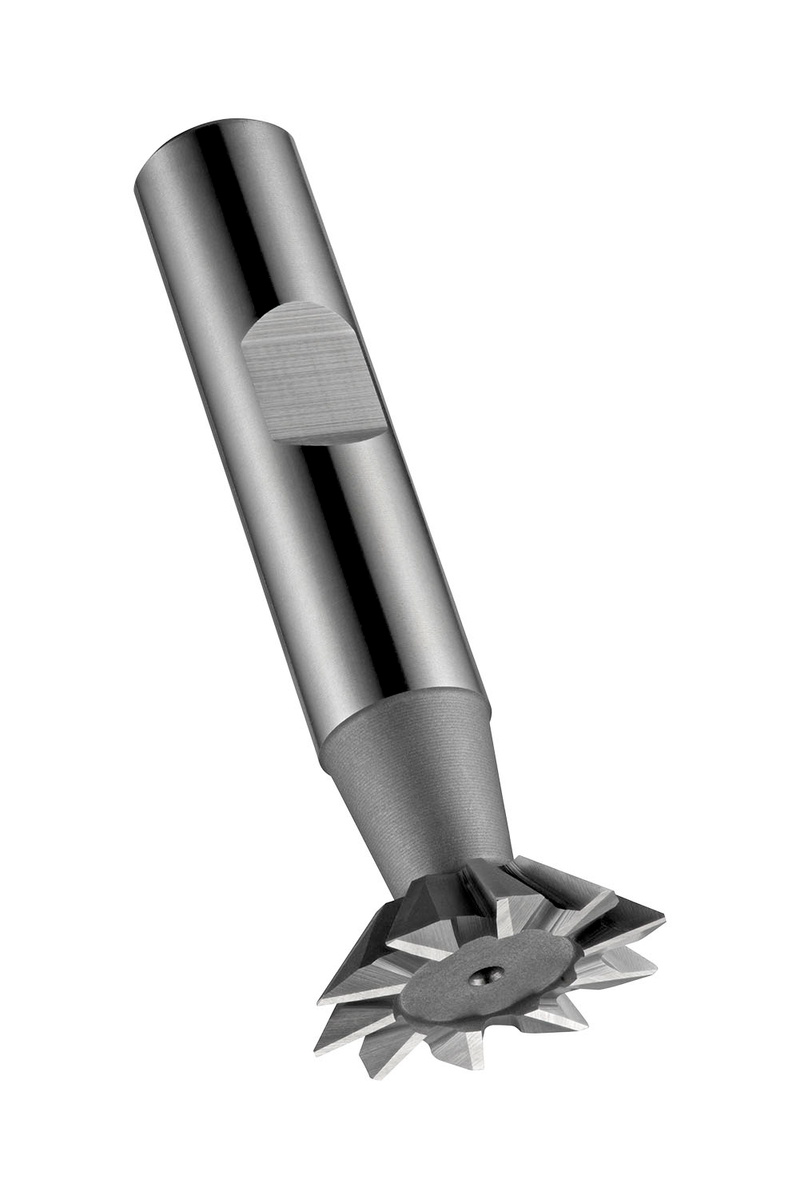

Fraise à queue d'aronde à 45° et 10 dents, diamètre 16mm avec une profondeur de coupe de 4mm et une longueur totale de 60mm, selon la norme DIN 1833 C avec une queue Weldon de 12mm, en HSS-E à base de cobalt avec finition brillante, hélice de 0° et angle de dépouille de 0° pour le fraisage de rainures en queue d'aronde dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C83016.0X45
GradeLumineux
Product Number5985790
Product FamilyC830
Insert Geometry

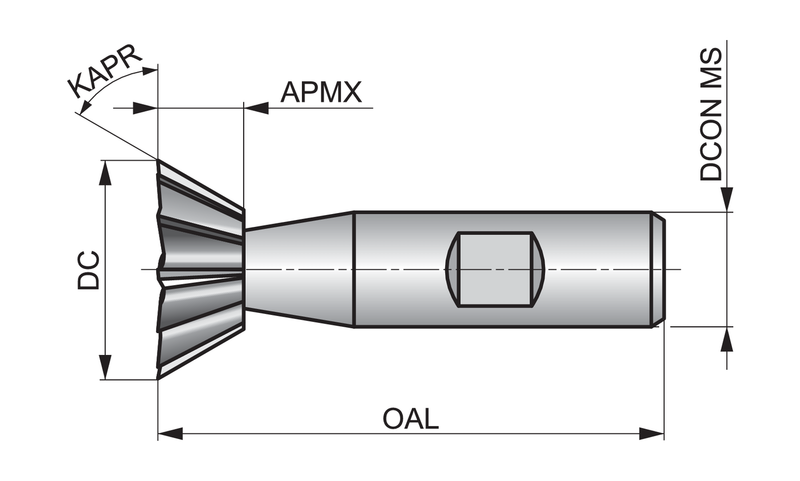

Depth of Cut Max — in (APMX)0.1575"
Depth of Cut Max — mm (APMX)4.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)10
Helix Angle (FHA)0.0°
Tool Information
ShankQueue à souder DIN 1835B
StandardDIN 1833 C
Reference Numbers
EDP Number75012
EAN7320760075012
File Type Download
C83016.0X45 — Line Drawing PDF Download
