UGC DOR5985796
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$142.19 CAD - $142.19 CAD
$142.19 CAD
$142.19 CAD - $142.19 CAD
$142.19 CAD

Vendu en lots de : 1

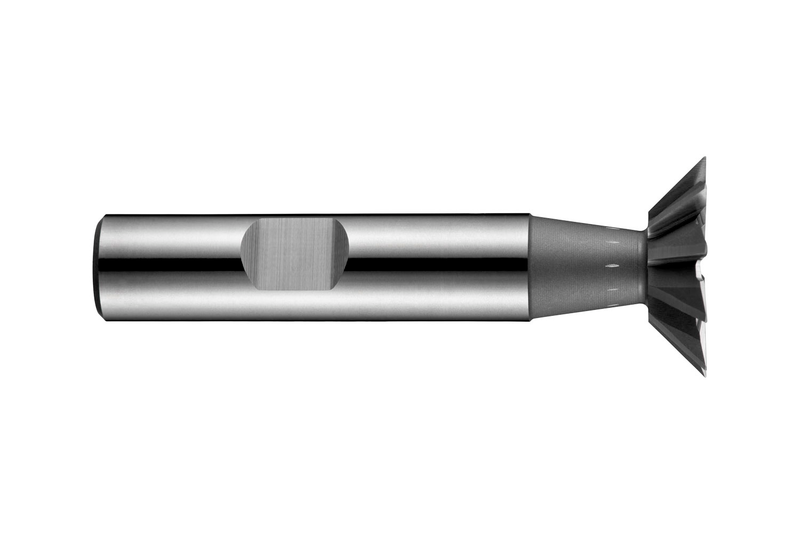

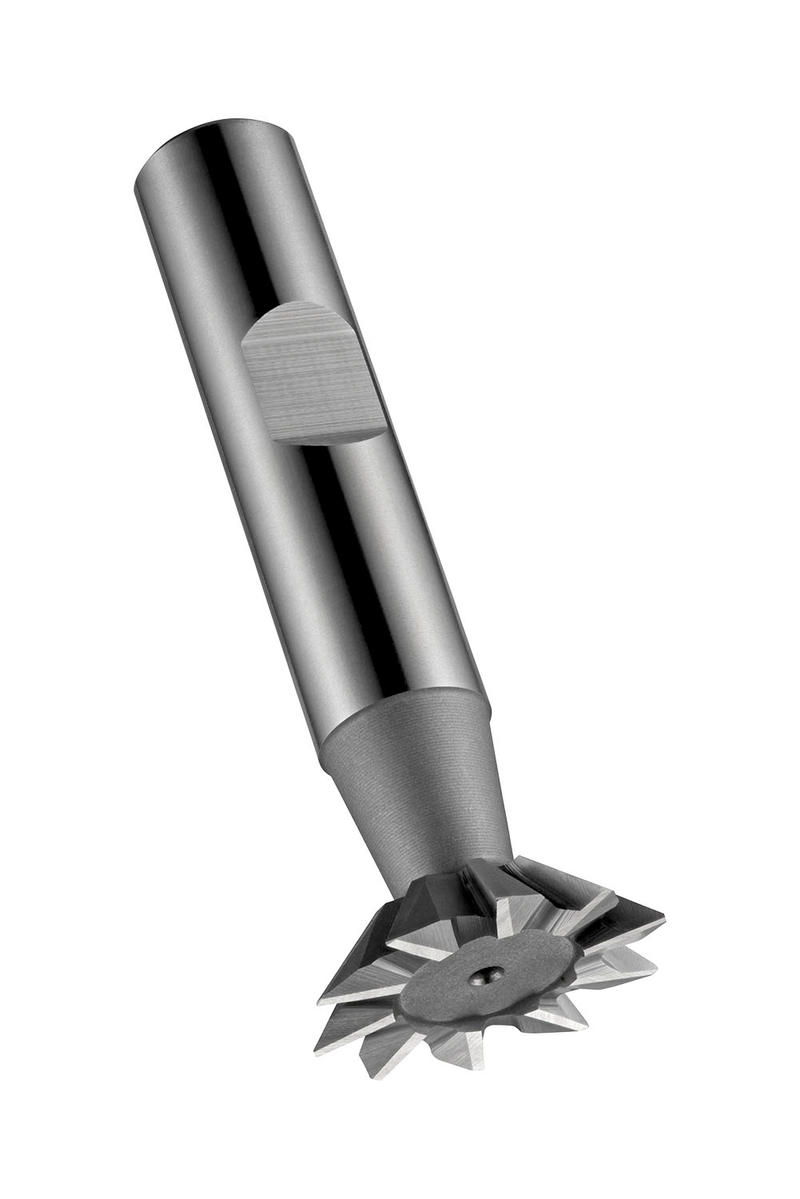

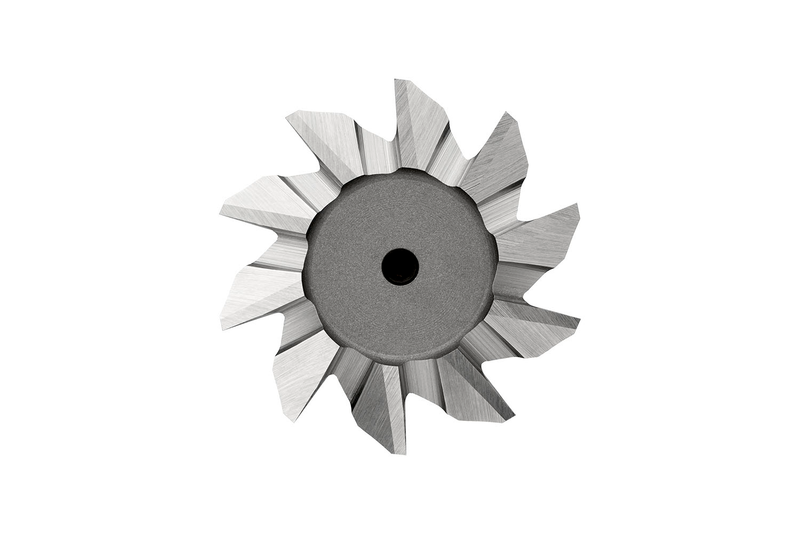

Fraise à queue d'aronde 60° à 10 dents, diamètre 16mm avec 6,3mm de profondeur de coupe et 60mm de longueur totale, selon la norme DIN 1833 C avec une queue Weldon de 12mm, en HSS-E à base de cobalt avec finition brillante, hélice 0° et angle de dépouille 0° pour le fraisage de rainures en queue d'aronde dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C83016.0X60
GradeLumineux
Product Number5985796
Product FamilyC830
Insert Geometry
Depth of Cut Max — in (APMX)0.248"
Depth of Cut Max — mm (APMX)6.3 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)10
Helix Angle (FHA)0.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 1833 C
Reference Numbers
EDP Number75029
EAN7320760075029
File Type Download

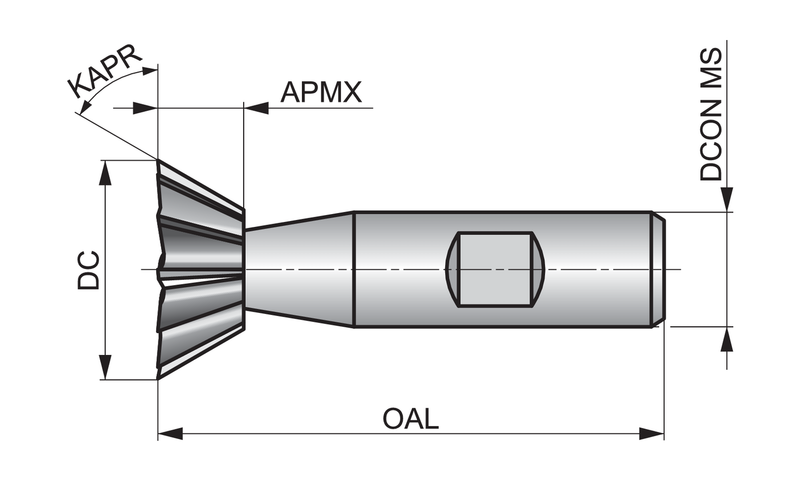

C83016.0X60 — Line Drawing PDF Download
