C83020.0X45
C83020.0X45
C83020.0X45
C83020.0X45

C83020.0X45

UGC DOR5985801
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$181.30 CAD - $181.30 CAD
$181.30 CAD
$181.30 CAD - $181.30 CAD
$181.30 CAD

Vendu en lots de : 1

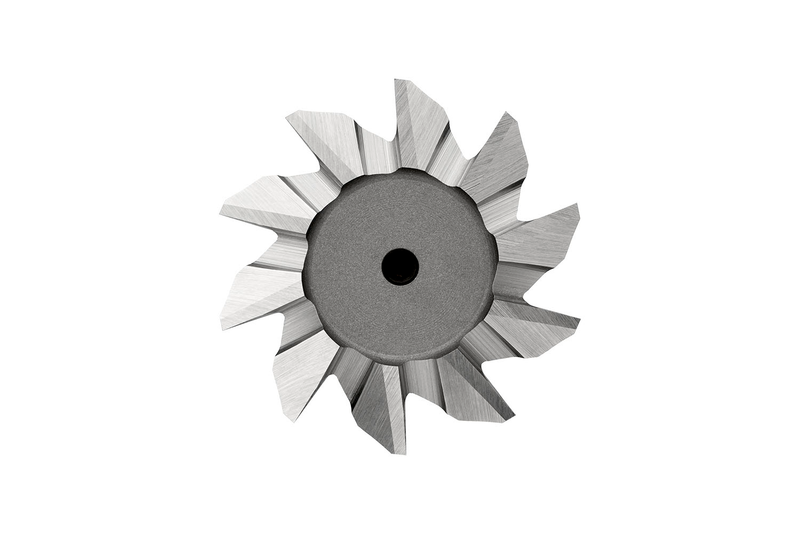

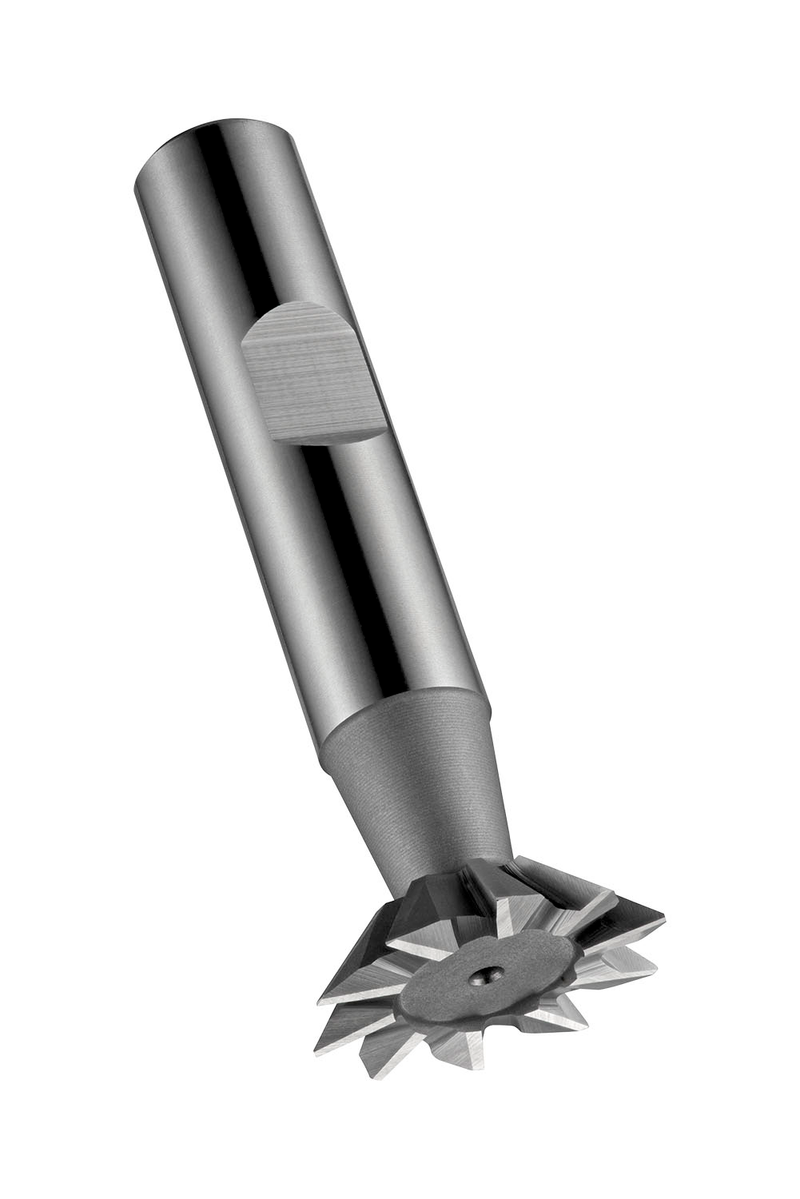

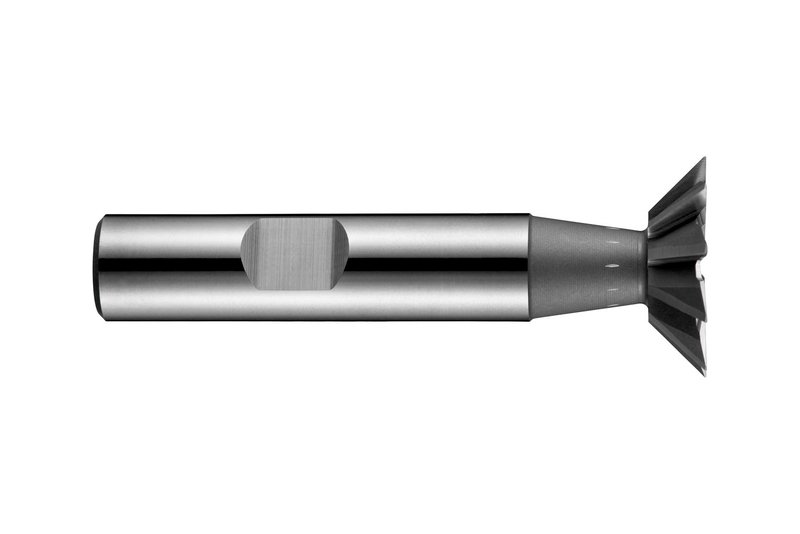

Fraise à queue d'aronde 45° à 10 dents, diamètre 20mm avec profondeur de coupe 5mm et longueur totale 63mm, selon la norme DIN 1833 C avec queue Weldon 12mm, en HSS-E cobalt avec finition brillante, hélice 0° et angle de dépouille 0° pour le fraisage de rainures en queue d'aronde dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C83020.0X45
GradeLumineux
Product Number5985801
Product FamilyC830
Insert Geometry
Depth of Cut Max — in (APMX)0.1969"
Depth of Cut Max — mm (APMX)5.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)10
Helix Angle (FHA)0.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 1833 C
Reference Numbers
EDP Number75036
EAN7320760075036
File Type Download

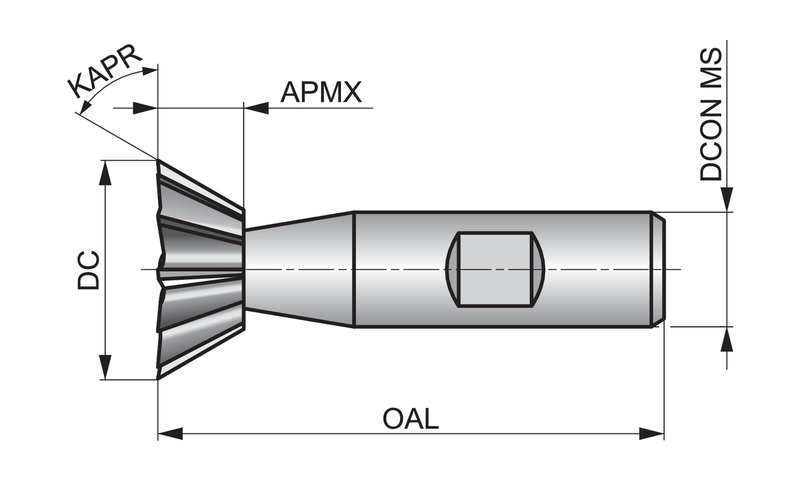

C83020.0X45 — Line Drawing PDF Download
