D74750.0X.3
D74750.0X.3
D74750.0X.3

D74750.0X.3

UGC DOR5985805
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$43.54 CAD - $43.54 CAD
$43.54 CAD
$43.54 CAD - $43.54 CAD
$43.54 CAD

Vendu en lots de : 5

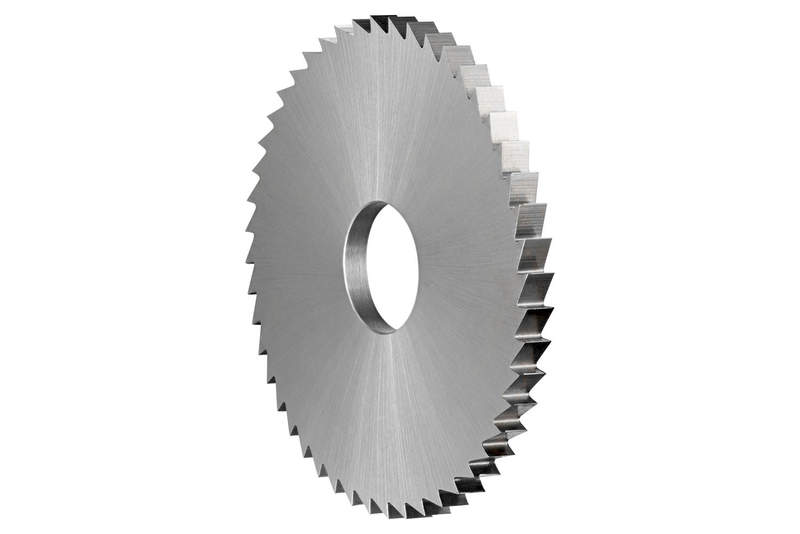

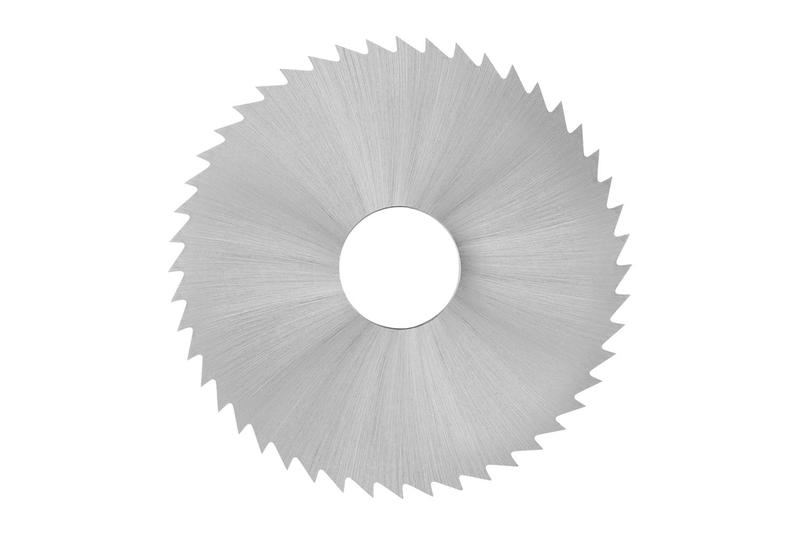

Fraise-scie à refendre en HSS, pas fin et 128 dents, diamètre 50 mm, épaisseur 0,3 mm, selon la norme DIN 1837, alésage 13 mm, finition brillante et angle de coupe positif de 5° pour le sciage à tronçonner, le sciage de tubes et l'entaillage peu profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D74750.0X.3
GradeLumineux
Product Number5985805
Product FamilyD747
Dimensions
Cutting Diameter — in (DC)1.9685"
Cutting Diameter — mm (DC)50.0 mm
Connection Dia. — in (DCON)0.5118"
Connection Dia. — mm (DCON)13.0 mm
Number of Flutes (NOF)128
Tool Information
StandardDIN 1837
Reference Numbers
EDP Number284650
EAN7320760284650
File Type Download

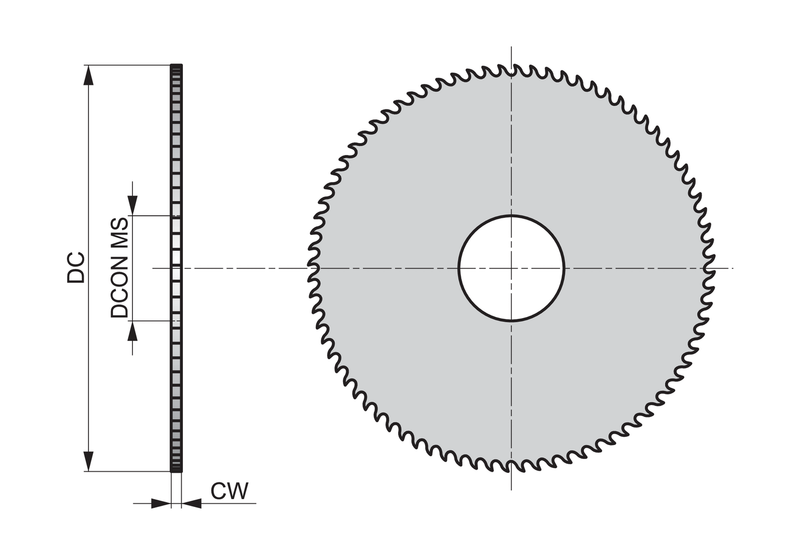

D74750.0X.3 — Line Drawing PDF Download
