UGC DOR5985817
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$222.53 CAD - $222.53 CAD
$222.53 CAD
$222.53 CAD - $222.53 CAD
$222.53 CAD

Vendu en lots de : 1

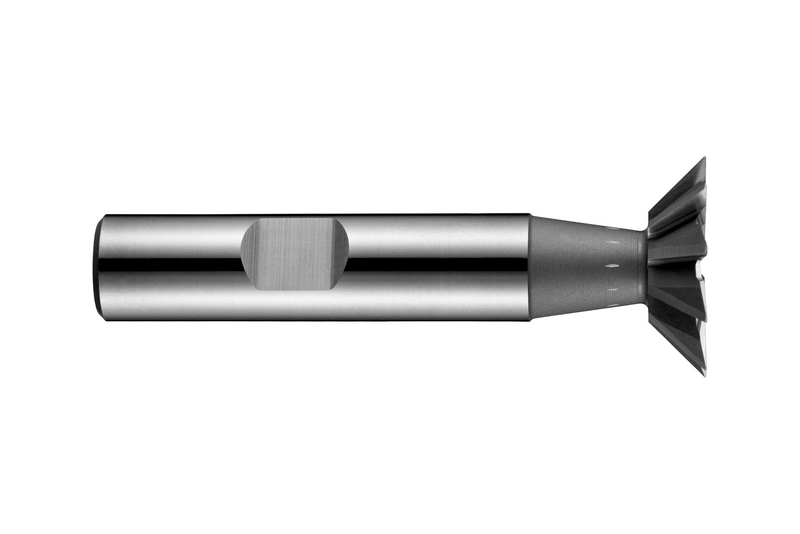

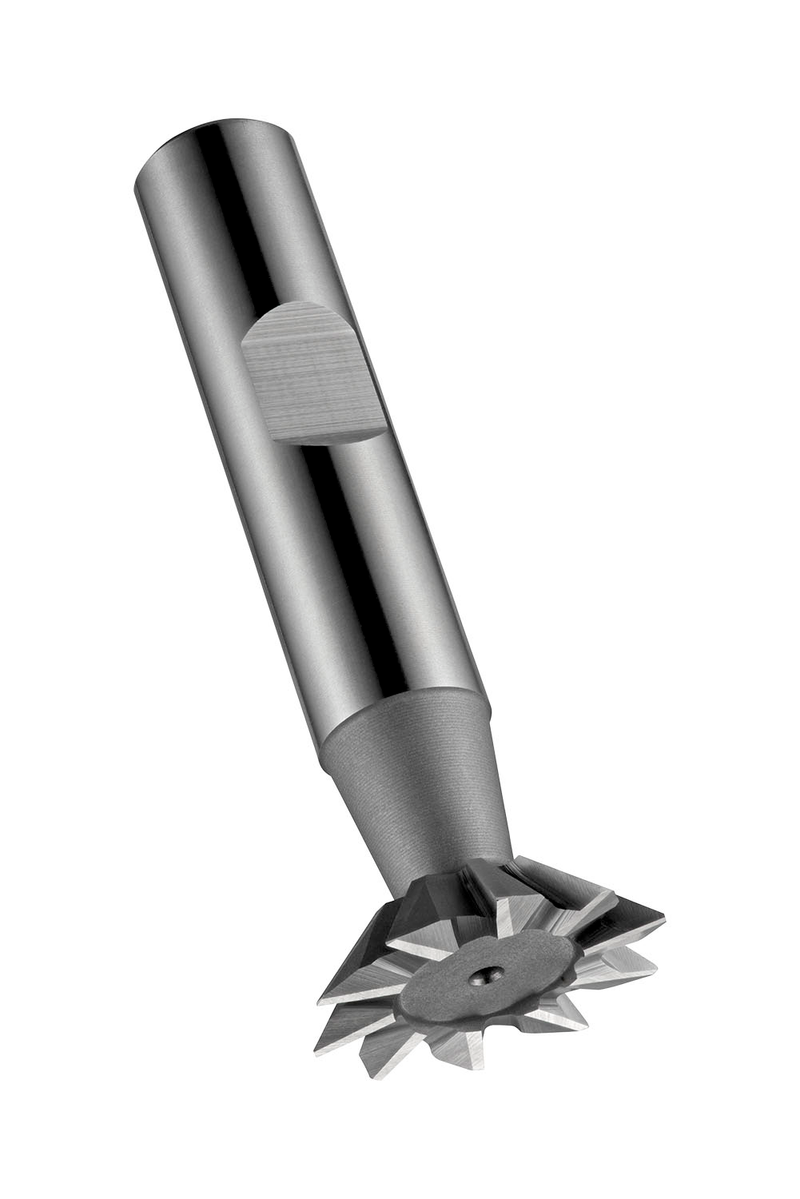

Fraise à queue d'aronde à 60° à 10 dents, diamètre 25mm, profondeur de coupe 10mm et longueur totale 67mm, selon la norme DIN 1833 C avec une queue Weldon de 12mm, en HSS-E à base de cobalt avec finition brillante, hélice de 0° et angle de dépouille de 0° pour le fraisage de rainures en queue d'aronde dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C83025.0X60
GradeLumineux
Product Number5985817
Product FamilyC830
Insert Geometry
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — in (DC)0.9843"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)2.6378"
Overall Length — mm (OAL)67.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm

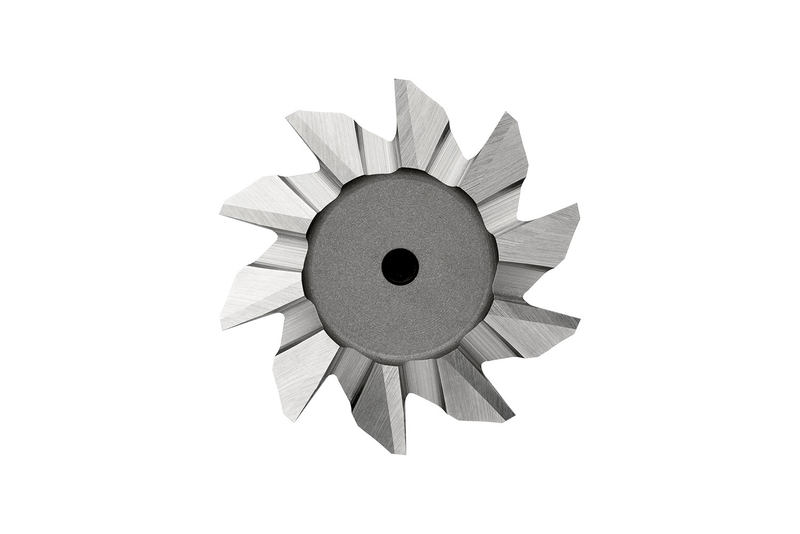

Number of Flutes (NOF)10
Helix Angle (FHA)0.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 1833 C
Reference Numbers
EDP Number75067
EAN7320760075067
File Type Download

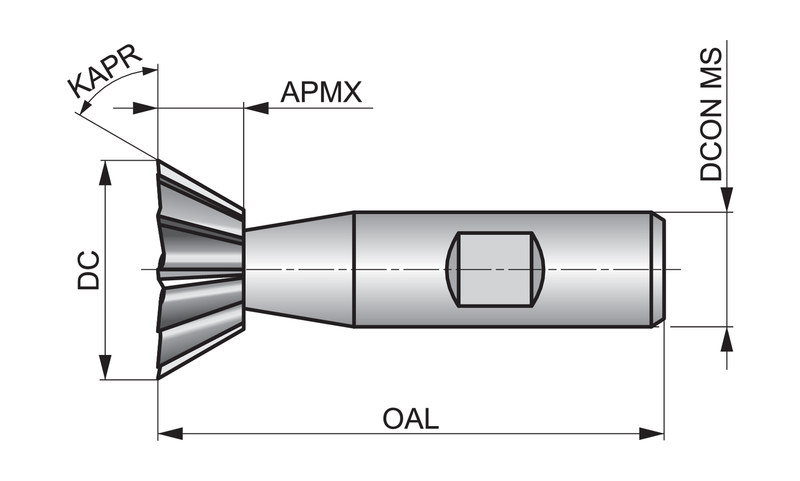

C83025.0X60 — Line Drawing PDF Download
