UGC DOR5985820
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$78.00 CAD - $78.00 CAD
$78.00 CAD
$78.00 CAD - $78.00 CAD
$78.00 CAD

Vendu en lots de : 1

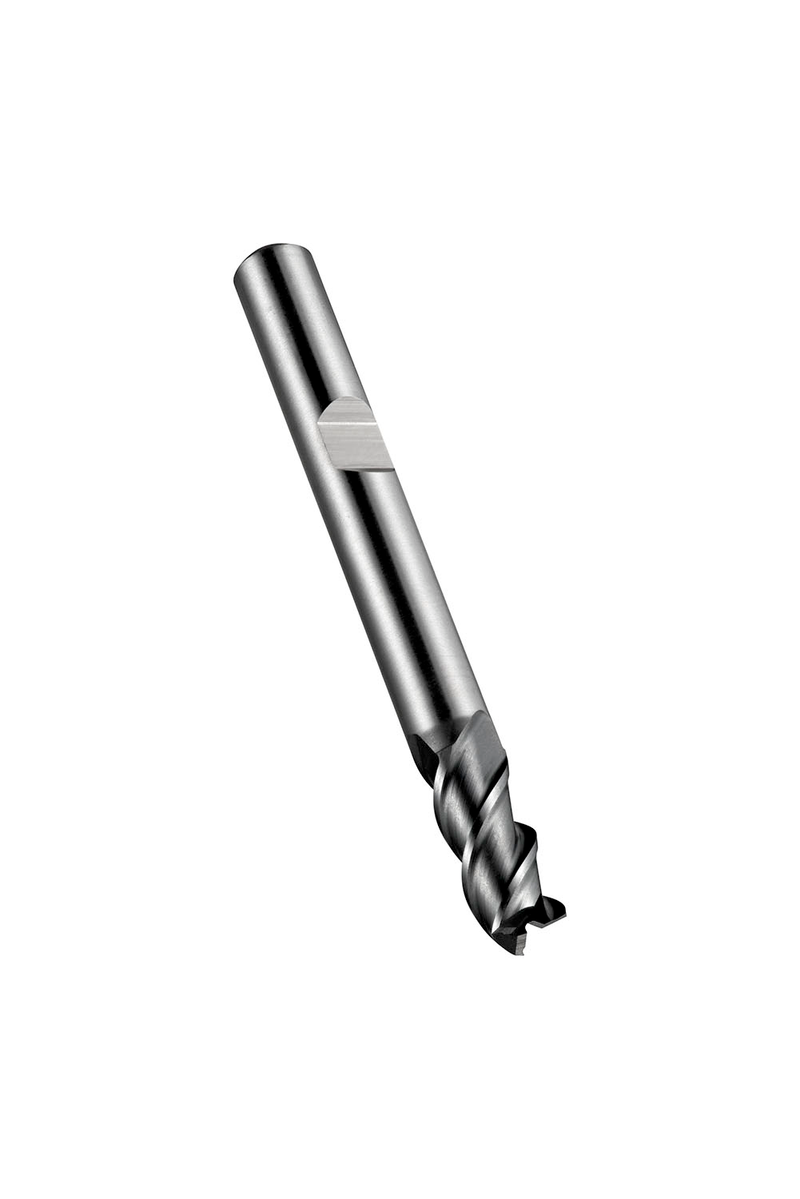

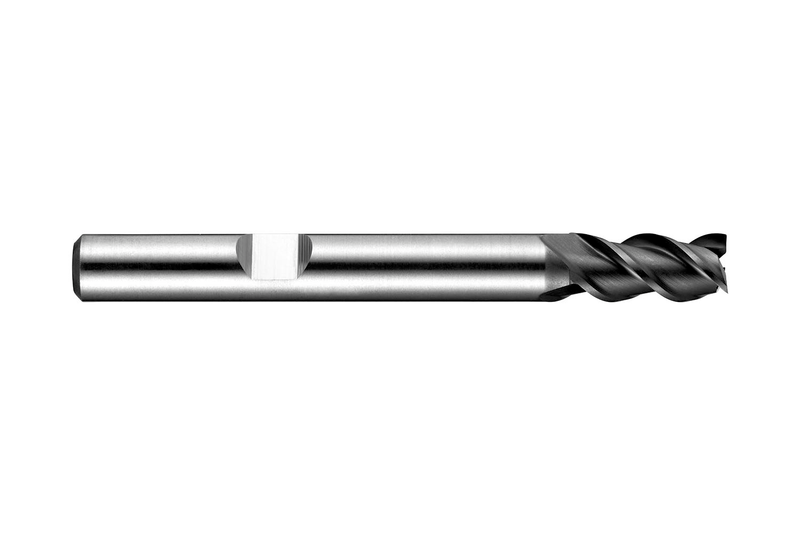

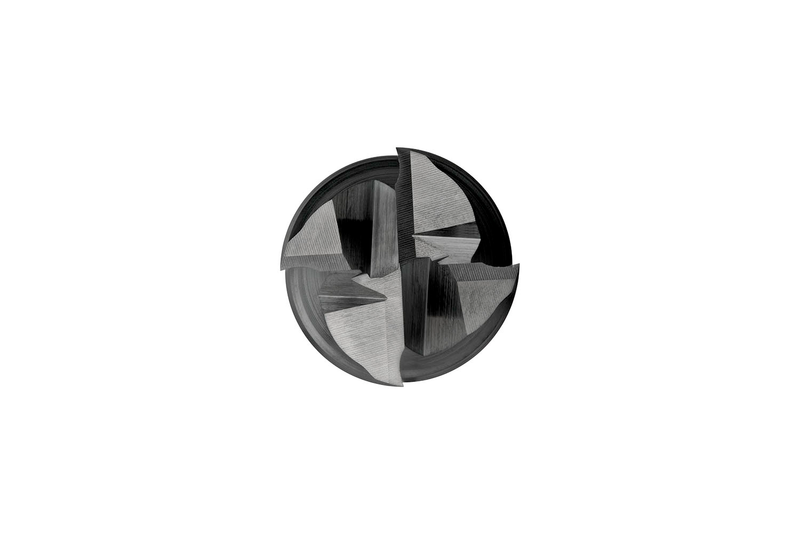

Fraise en bout courte 4 dents, diamètre 8 mm, longueur de coupe 19 mm et longueur totale 69 mm, selon la norme DIN 844 K avec un corps Weldon de 10 mm, en HSS-E métallurgie des poudres avec revêtement Alcrona, hélice 45° et angle de dépouille 12° pour le fraisage d'épaulements, le fraisage de rainures et le surfaçage en acier au carbone, allié et à outils, en acier inoxydable, en fonte, en cuivre ou en alliages de cuivre et en alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C9078.0
GradeALCRONA
Product Number5985820
Product FamilyC907
Insert Geometry
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm

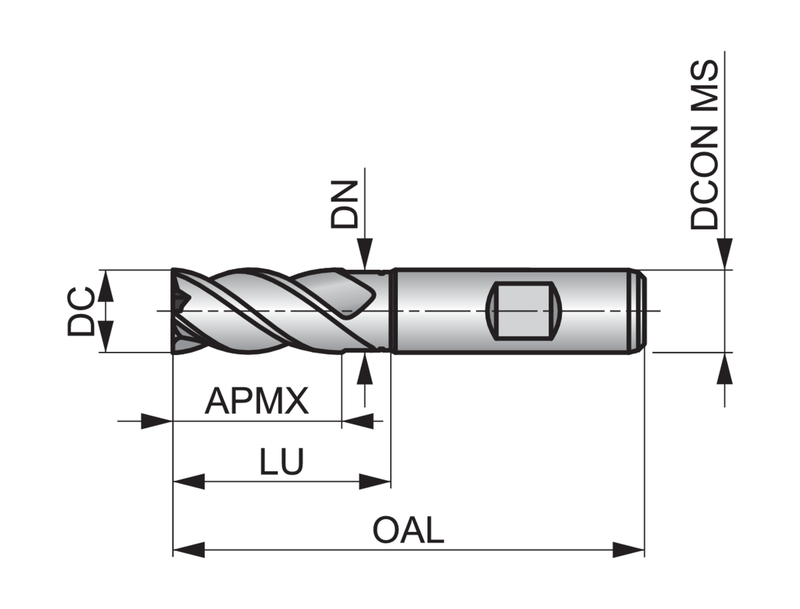

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.7165"
Overall Length — mm (OAL)69.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)45.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number75975
EAN7320760075975
File Type Download
C9078.0 — Line Drawing PDF Download
