D752300.0X2.5X160
D752300.0X2.5X160
D752300.0X2.5X160

D752300.0X2.5X160

UGC DOR5985821
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$364.57 CAD - $364.57 CAD
$364.57 CAD
$364.57 CAD - $364.57 CAD
$364.57 CAD

Vendu en lots de : 1

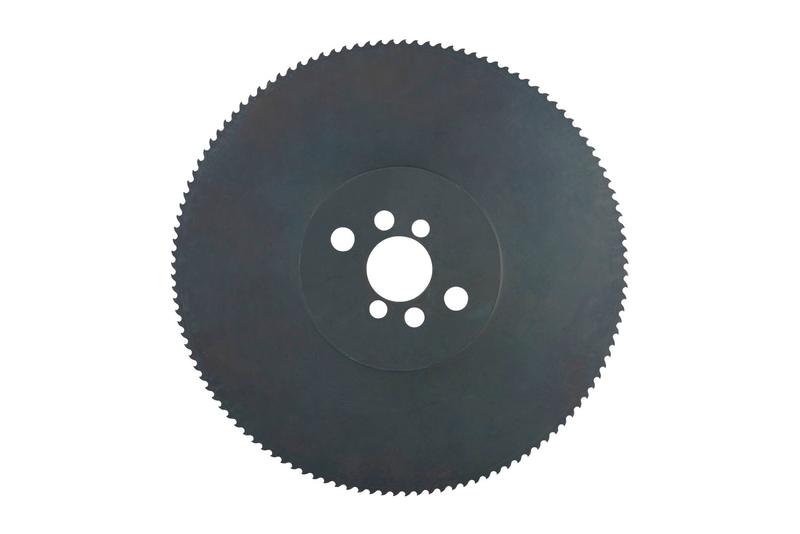

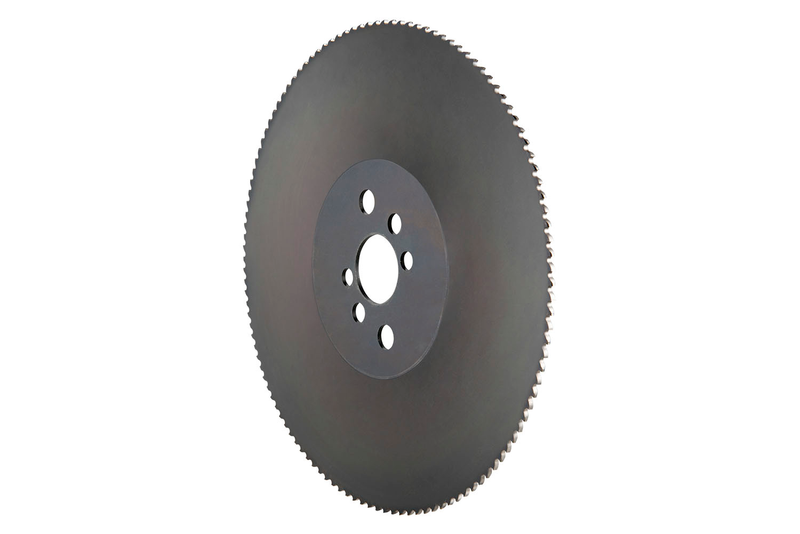

Scie circulaire à refendre en HSS, pas grossier, 160 dents, diamètre 300 mm, largeur de coupe 2,5 mm, selon la norme DORMER avec alésage 32 mm et trous d'entraînement standard, finition à la vapeur, et angle de coupe de 18° pour le tronçonnage, le rainurage peu profond et le rainurage profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)D752300,0X2,5X160
Product Name (ISO)D752300.0X2.5X160
GradeTrempé à la vapeur
Product Number5985821
Product FamilyD752

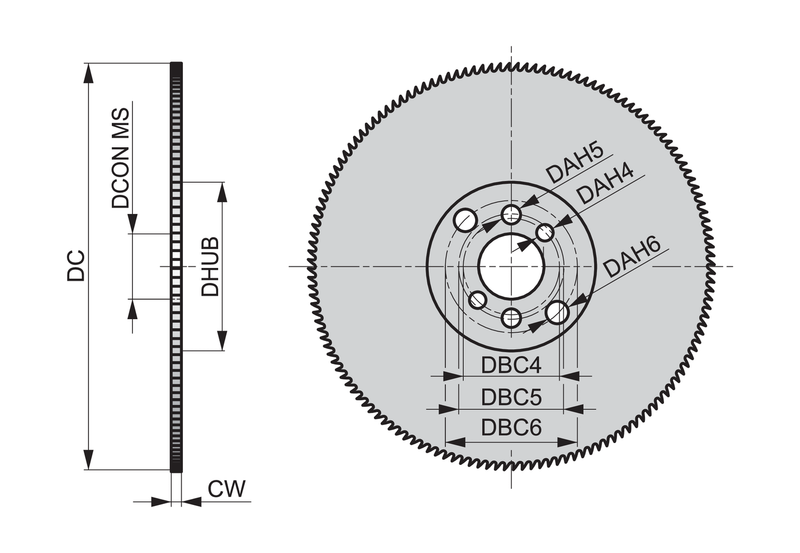

Dimensions
Cutting Diameter — in (DC)11.811"
Cutting Diameter — mm (DC)300.0 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)160
Tool Information
StandardNorme de travail
Reference Numbers
EDP Number285947
EAN7320760285947
File Type Download
D752300.0X2.5X160 — Line Drawing PDF Download
