C83032.0X45
C83032.0X45
C83032.0X45
C83032.0X45

C83032.0X45

UGC DOR5985822
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$316.09 CAD - $316.09 CAD
$316.09 CAD
$316.09 CAD - $316.09 CAD
$316.09 CAD

Vendu en lots de : 1

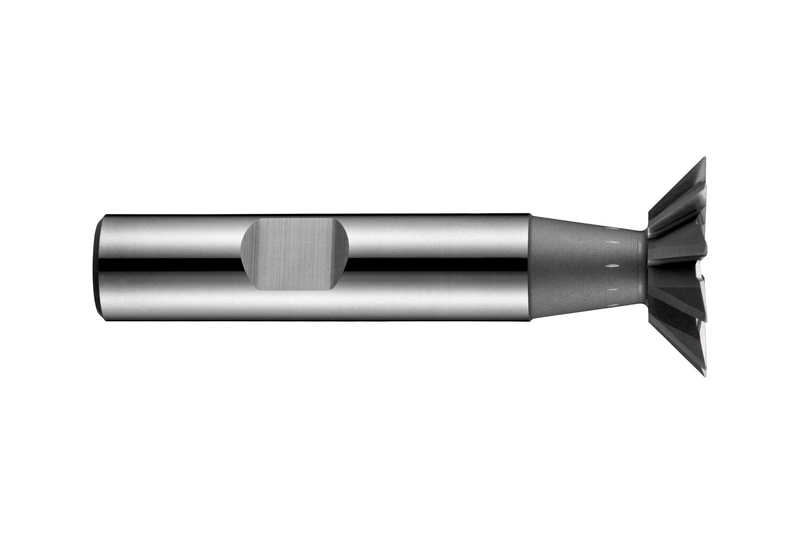

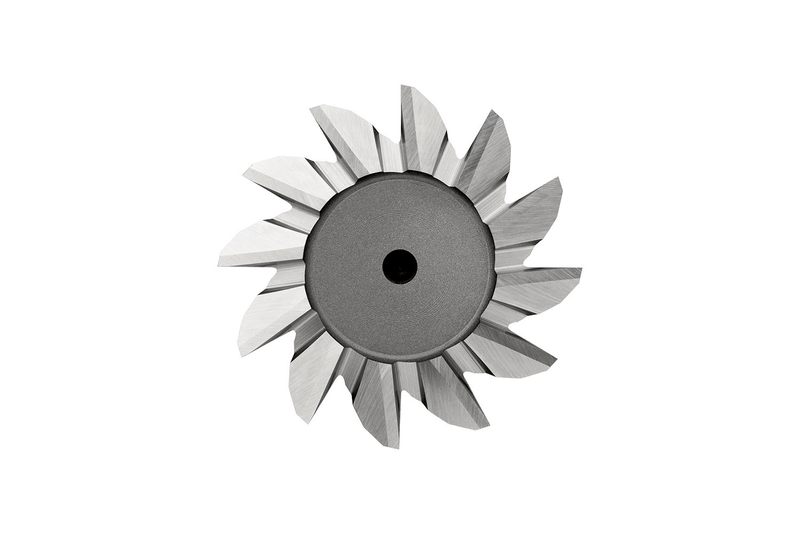

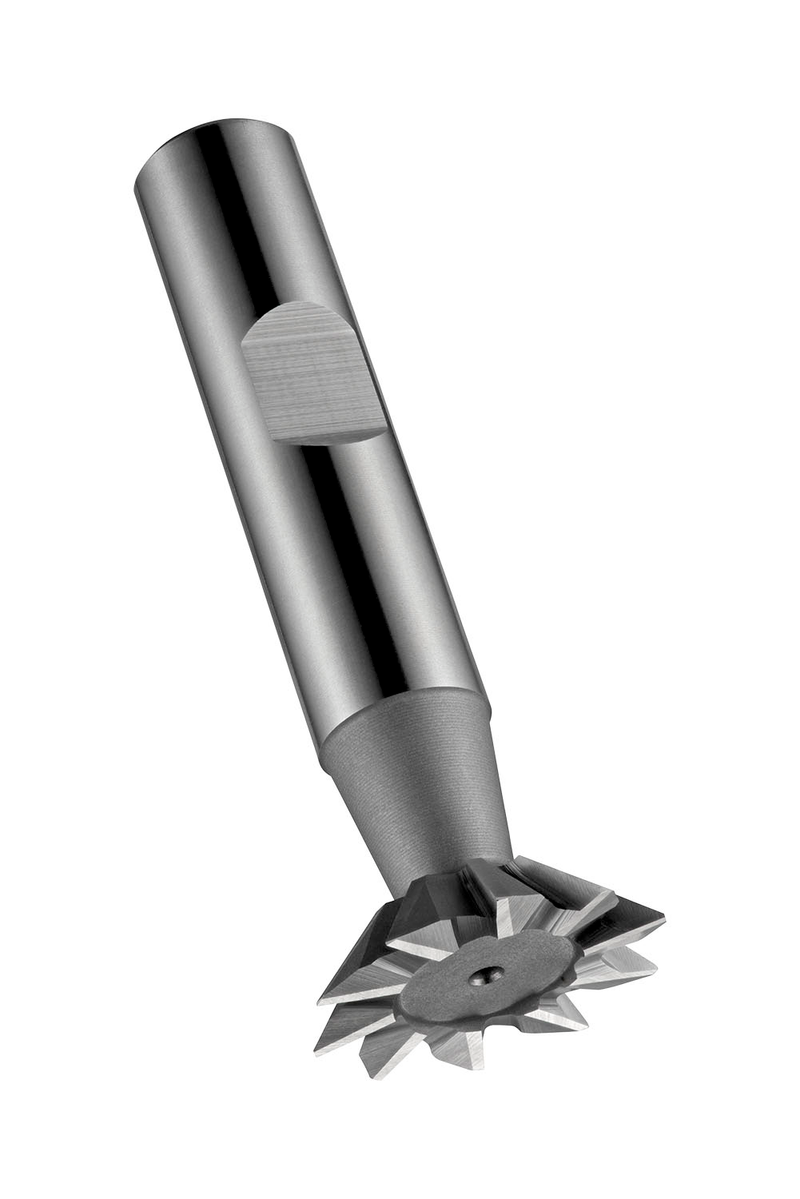

Fraises à queue d'aronde 45° à 12 dents, diamètre 32 mm avec profondeur de coupe de 8 mm et longueur totale de 71 mm, selon la norme DIN 1833 C avec queue Weldon de 16 mm, en HSS-E cobalt avec finition brillante, hélice de 0° et angle de dépouille de 0° pour le fraisage de rainures en queue d'aronde dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C83032.0X45
GradeLumineux
Product Number5985822
Product FamilyC830
Insert Geometry
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm

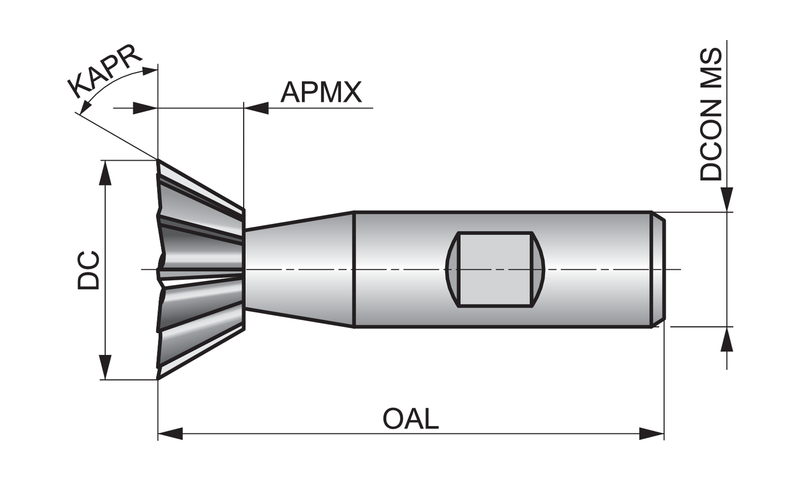

Dimensions
Cutting Diameter — in (DC)1.2598"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)2.7953"
Overall Length — mm (OAL)71.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)12
Helix Angle (FHA)0.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 1833 C
Reference Numbers
EDP Number75074
EAN7320760075074
File Type Download
C83032.0X45 — Line Drawing PDF Download
