UGC DOR5985825
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$133.80 CAD - $133.80 CAD
$133.80 CAD
$133.80 CAD - $133.80 CAD
$133.80 CAD

Vendu en lots de : 1

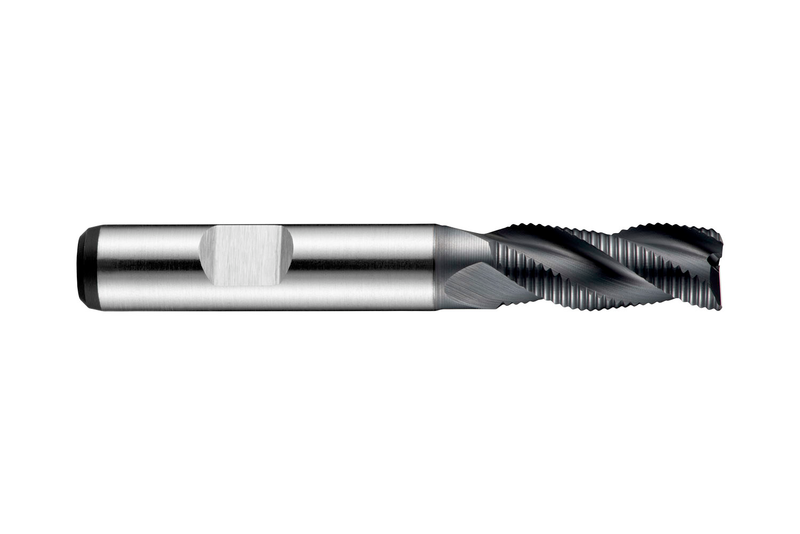

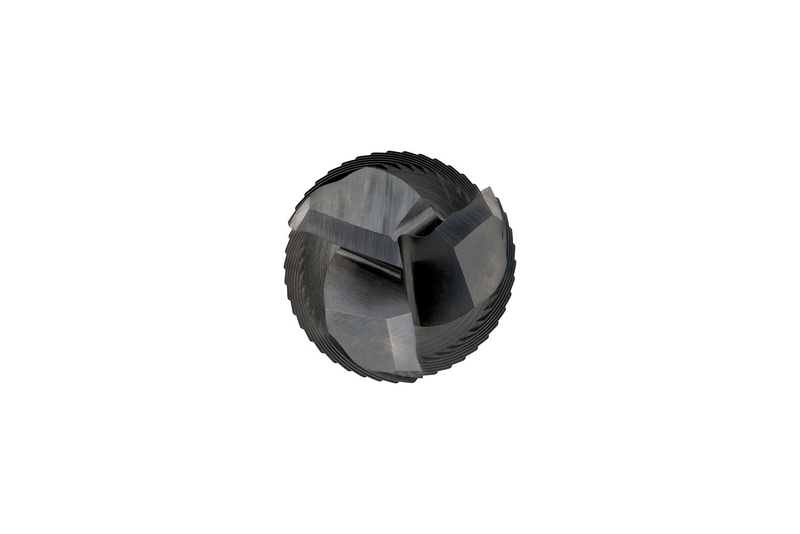

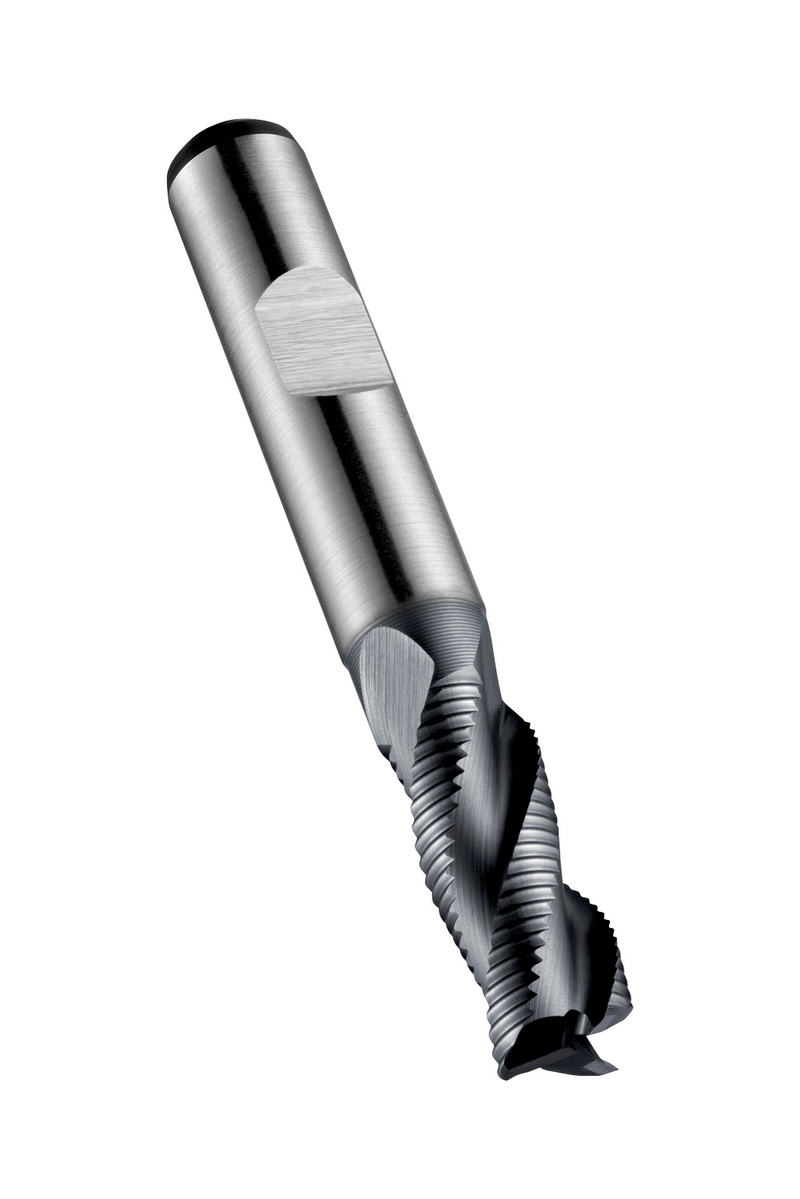

Fraise d’ébauche courte à 3 dents, profil asymétrique HRA à pas fin, diamètre 11 mm, longueur de coupe 22 mm, longueur totale 79 mm, selon la norme DIN 844 K avec queue Weldon 12 mm, HSS-E métallurgie des poudres avec revêtement Alcrona, hélice 35° et angle de dépouille 12° pour le fraisage d'épaulements, le fraisage de rainures et l'usinage en ramping dans les aciers alliés et les aciers à outils, les aciers inoxydables, la fonte, le cuivre ou les alliages de cuivre et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C92211.0
GradeALCRONA
Product Number5985825
Product FamilyC922

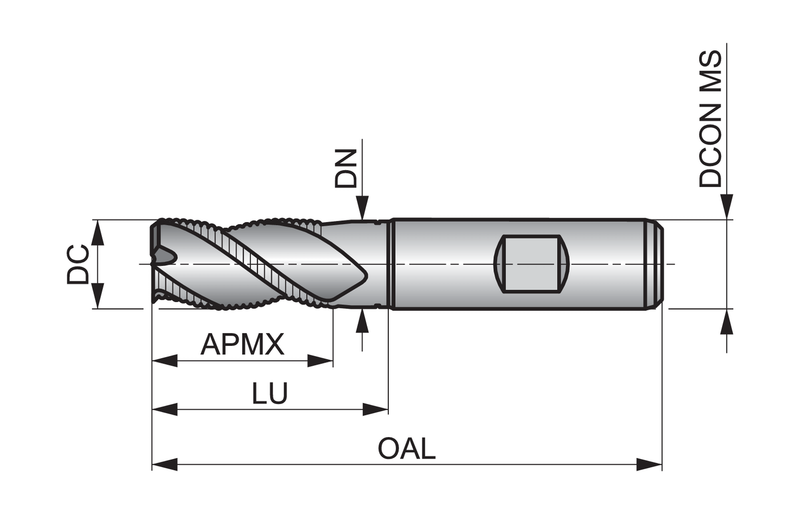

Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.4331"
Cutting Diameter — mm (DC)11.0 mm
Overall Length — in (OAL)3.1102"
Overall Length — mm (OAL)79.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)35.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number76378
EAN7320760076378
File Type Download
C92211.0 — Line Drawing PDF Download
