D74763.0X1.6
D74763.0X1.6
D74763.0X1.6

D74763.0X1.6

UGC DOR5985874
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.20 CAD - $55.20 CAD
$55.20 CAD
$55.20 CAD - $55.20 CAD
$55.20 CAD

Vendu en lots de : 5

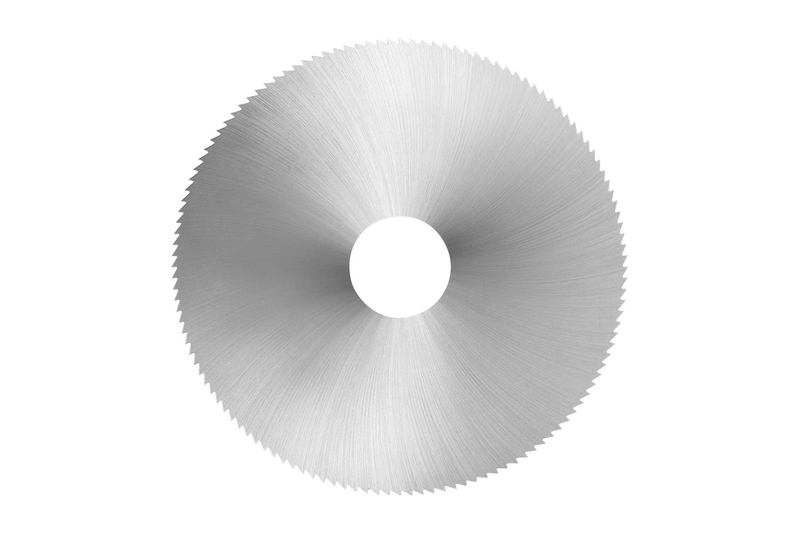

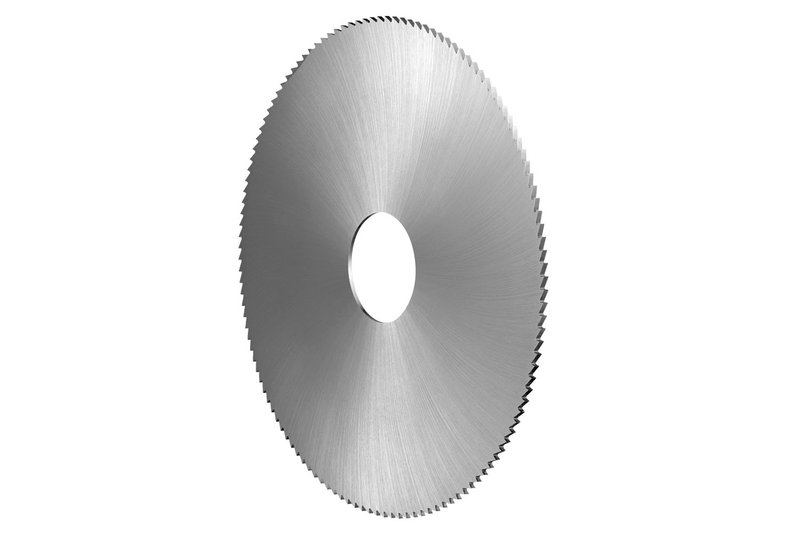

Scie à refendre en métal à denture fine, 80 dents, diamètre 63 mm, épaisseur de coupe 1,6 mm, selon la norme DIN 1837, avec alésage de 16 mm, en acier rapide (HSS) avec finition brillante et angle de coupe de 5° pour le tronçonnage, le sciage de tubes et le rainurage peu profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D74763.0X1.6
GradeLumineux
Product Number5985874
Product FamilyD747
Dimensions
Cutting Diameter — in (DC)2.4803"
Cutting Diameter — mm (DC)63.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)80
Tool Information
StandardDIN 1837
Reference Numbers
EDP Number284889
EAN7320760284889
File Type Download

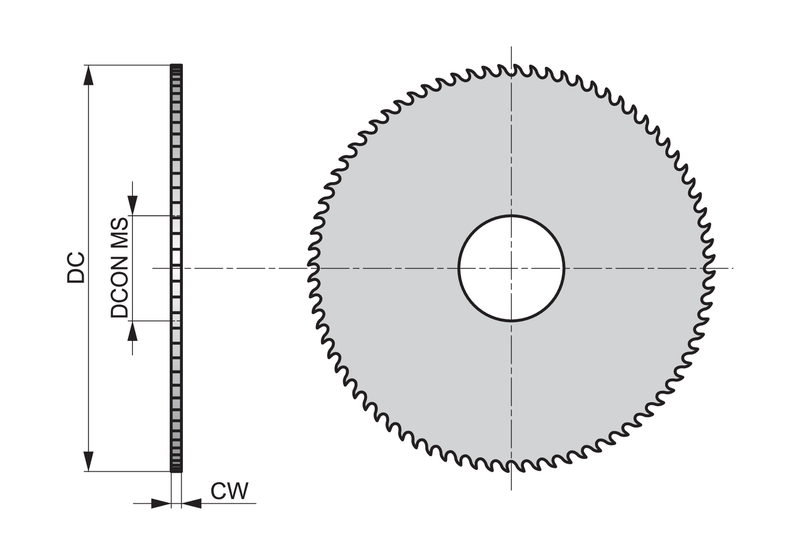

D74763.0X1.6 — Line Drawing PDF Download
