D74763.0X4.0
D74763.0X4.0
D74763.0X4.0

D74763.0X4.0

UGC DOR5985882
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$103.43 CAD - $103.43 CAD
$103.43 CAD
$103.43 CAD - $103.43 CAD
$103.43 CAD

Vendu en lots de : 1

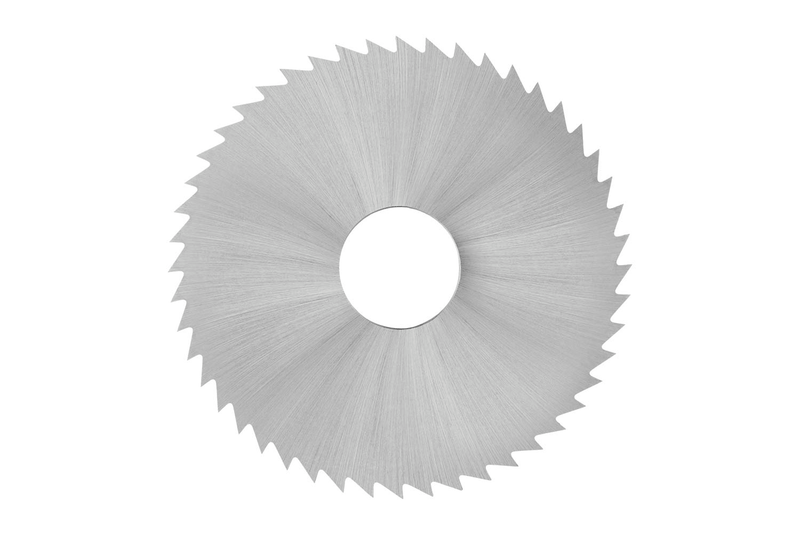

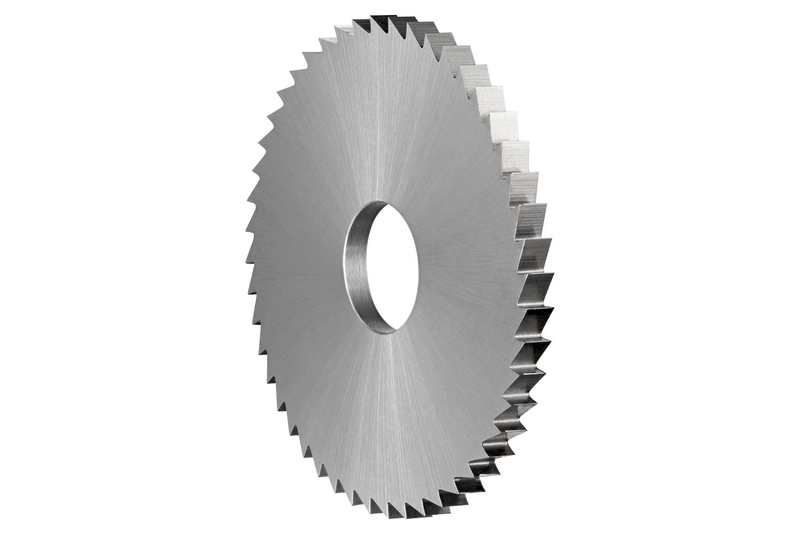

Scie à refendre en acier rapide à pas fin et 64 dents, diamètre 63 mm avec une largeur de coupe de 4 mm, conforme à la norme DIN 1837 avec un alésage de 16 mm, HSS à finition brillante, et angle de dépouille de 5° pour le tronçonnage, la découpe de tubes et le rainurage peu profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D74763.0X4.0
GradeLumineux
Product Number5985882
Product FamilyD747

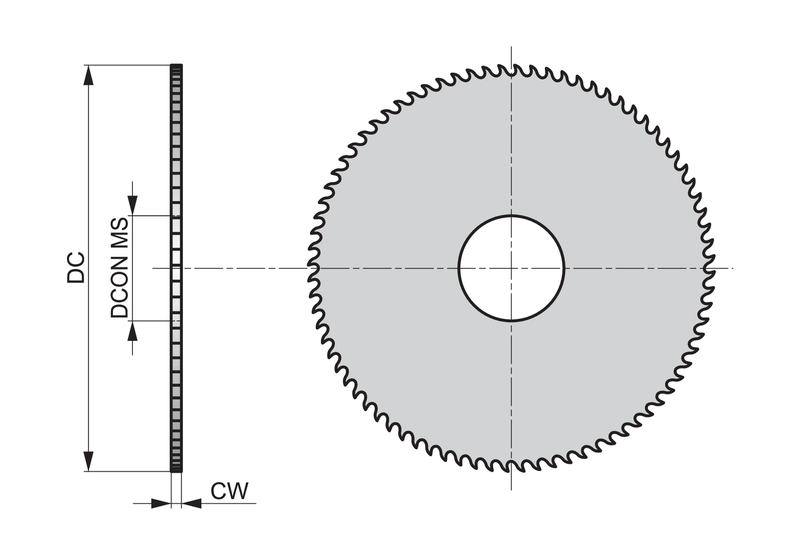

Dimensions
Cutting Diameter — in (DC)2.4803"
Cutting Diameter — mm (DC)63.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)64
Tool Information
StandardDIN 1837
Reference Numbers
EDP Number284926
EAN7320760284926
File Type Download
D74763.0X4.0 — Line Drawing PDF Download
