D747100.0X1.5
D747100.0X1.5
D747100.0X1.5

D747100.0X1.5

UGC DOR5985907
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$84.57 CAD - $84.57 CAD
$84.57 CAD
$84.57 CAD - $84.57 CAD
$84.57 CAD

Vendu en lots de : 1

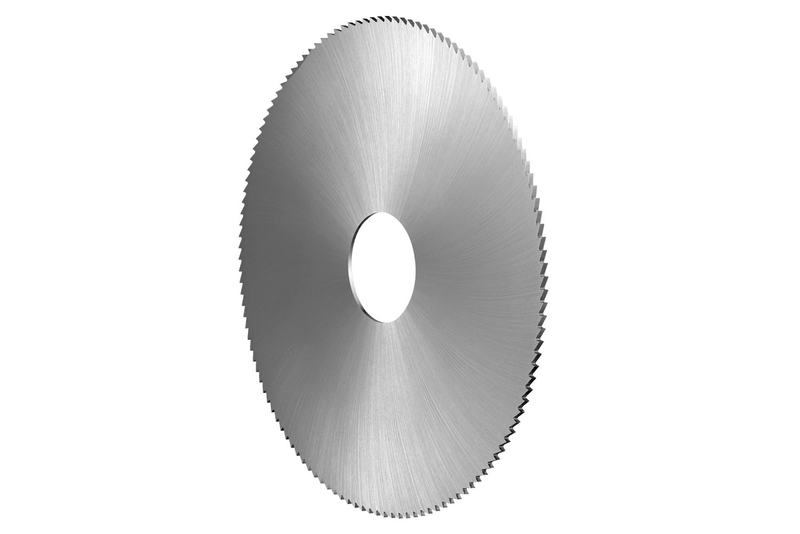

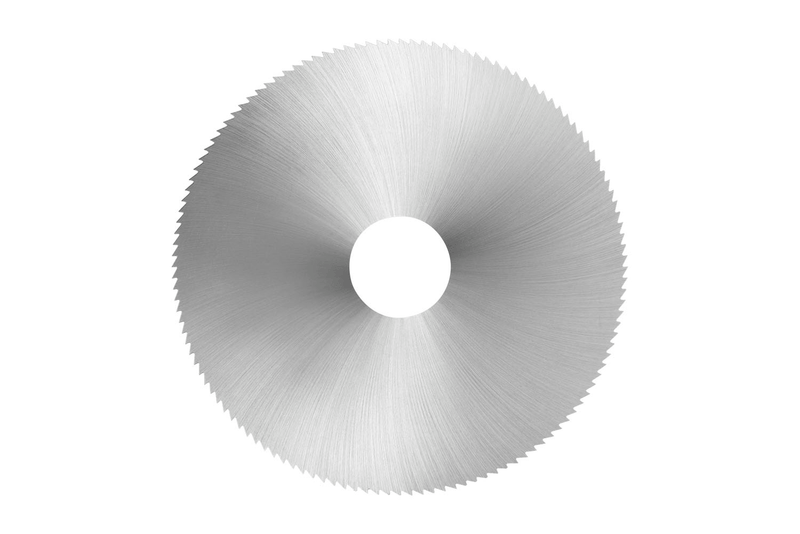

Scie à refendre en acier rapide à denture fine et 100 dents, diamètre 100 mm avec largeur de coupe de 1,5 mm, selon la norme DIN 1837 avec un alésage de 22 mm, HSS avec finition brillante et angle de coupe de 5° pour le tronçonnage, le sciage de tubes et le rainurage peu profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)D747100.0X1.5
Product Name (ISO)D747100,0X1,5
GradeLumineux
Product Number5985907
Product FamilyD747
Dimensions
Cutting Diameter — in (DC)3.937"
Cutting Diameter — mm (DC)100.0 mm
Connection Dia. — in (DCON)0.8661"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)100
Tool Information
StandardDIN 1837
Reference Numbers
EDP Number285145
EAN7320760285145
File Type Download

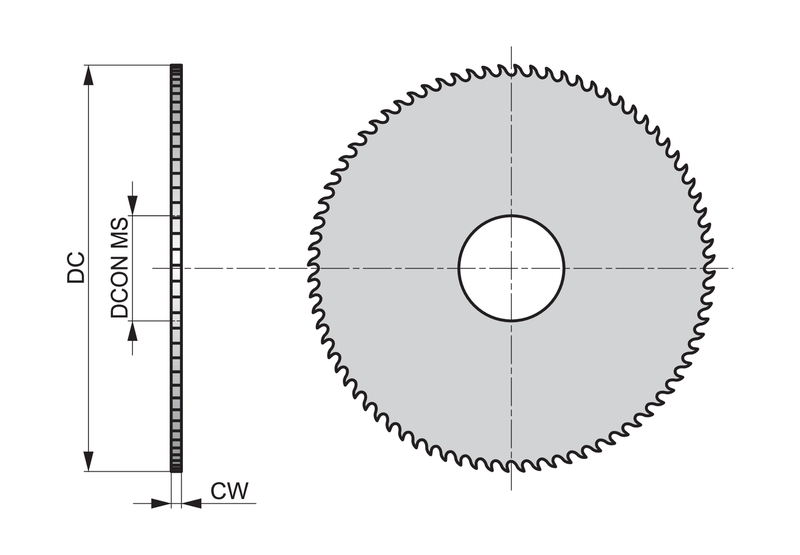

D747100.0X1.5 — Line Drawing PDF Download
