D747100.0X2.0
D747100.0X2.0
D747100.0X2.0

D747100.0X2.0

UGC DOR5985913
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$94.29 CAD - $94.29 CAD
$94.29 CAD
$94.29 CAD - $94.29 CAD
$94.29 CAD

Vendu en lots de : 1

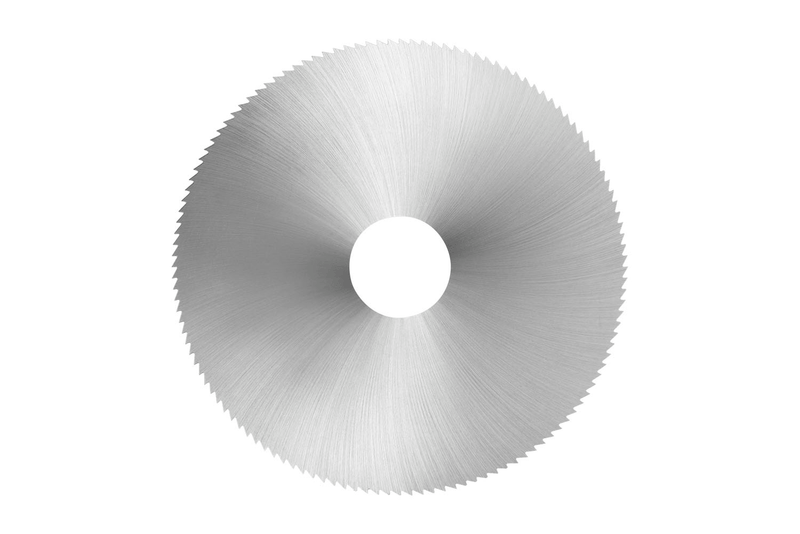

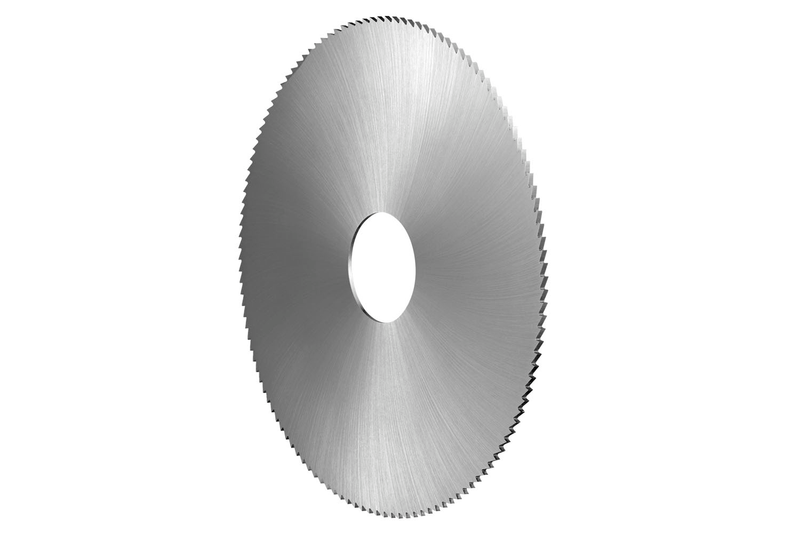

Fraise-scie à refendre en métal à pas fin et 100 dents, diamètre 100mm avec largeur de coupe de 2mm, selon la norme DIN 1837 avec alésage de 22mm, HSS avec finition brillante, et angle de dépouille de 5° pour le sciage de tronçonnage, le sciage de tubes et le rainurage peu profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)D747100.0X2.0
Product Name (ISO)D747100,0X2,0
GradeLumineux
Product Number5985913
Product FamilyD747

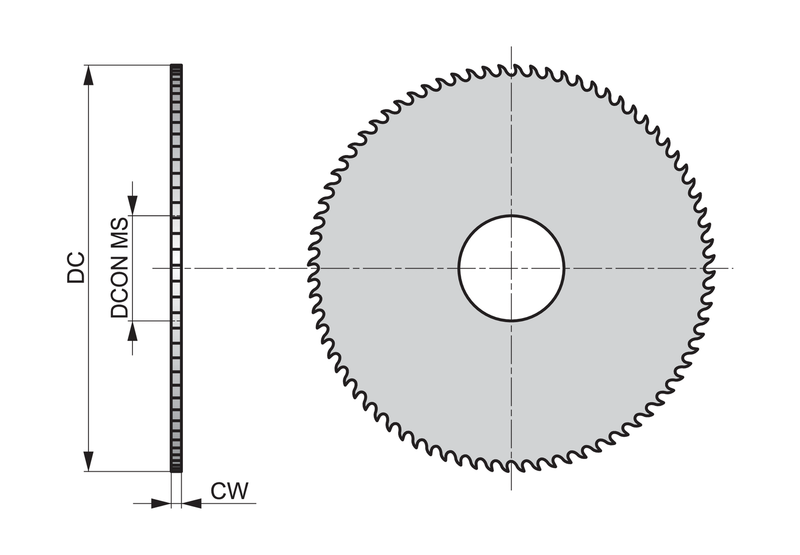

Dimensions
Cutting Diameter — in (DC)3.937"
Cutting Diameter — mm (DC)100.0 mm
Connection Dia. — in (DCON)0.8661"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)100
Tool Information
StandardDIN 1837
Reference Numbers
EDP Number285169
EAN7320760285169
File Type Download
D747100.0X2.0 — Line Drawing PDF Download
