D747100,0X2,5
D747100,0X2,5
D747100,0X2,5

D747100,0X2,5

UGC DOR5985916
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$104.00 CAD - $104.00 CAD
$104.00 CAD
$104.00 CAD - $104.00 CAD
$104.00 CAD

Vendu en lots de : 1

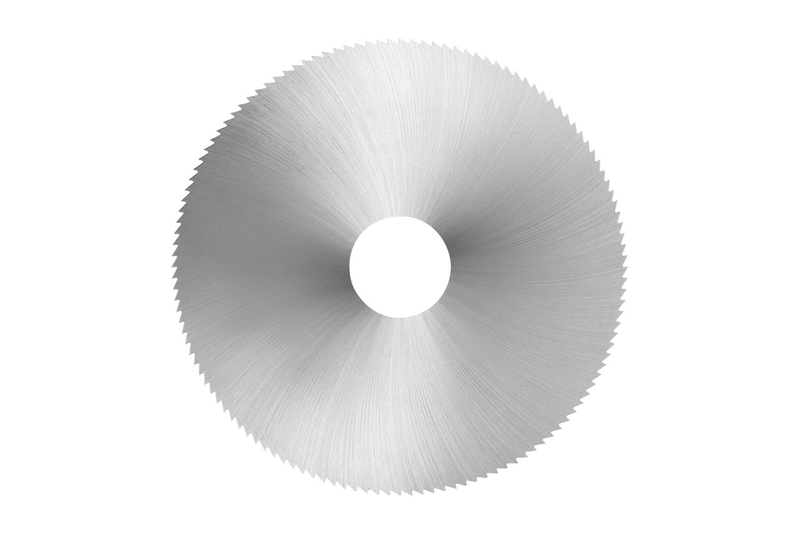

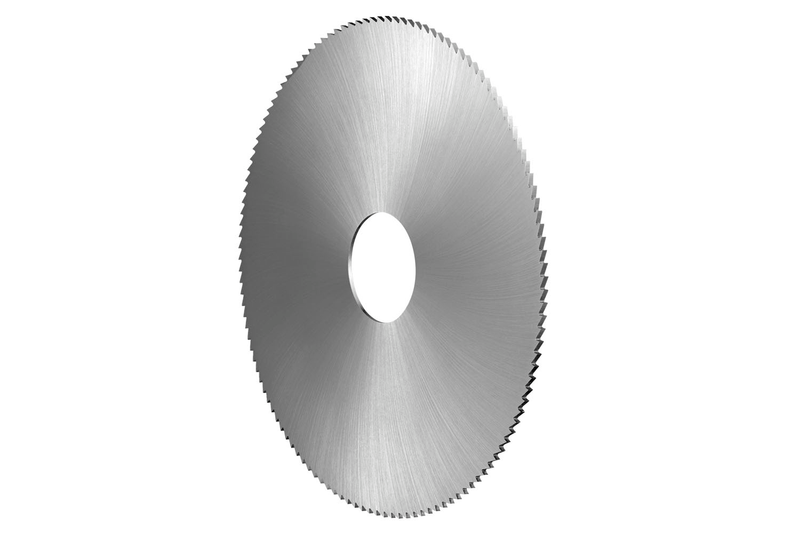

Scie à refendre les métaux à denture fine et 100 dents, diamètre 100 mm avec une largeur de coupe de 2,5 mm, conforme à la norme DIN 1837 avec un alésage de 22 mm, en HSS avec finition brillante et angle de coupe de 5° pour le tronçonnage, le sciage de tubes et le rainurage peu profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D747100.0X2.5
GradeLumineux
Product Number5985916
Product FamilyD747

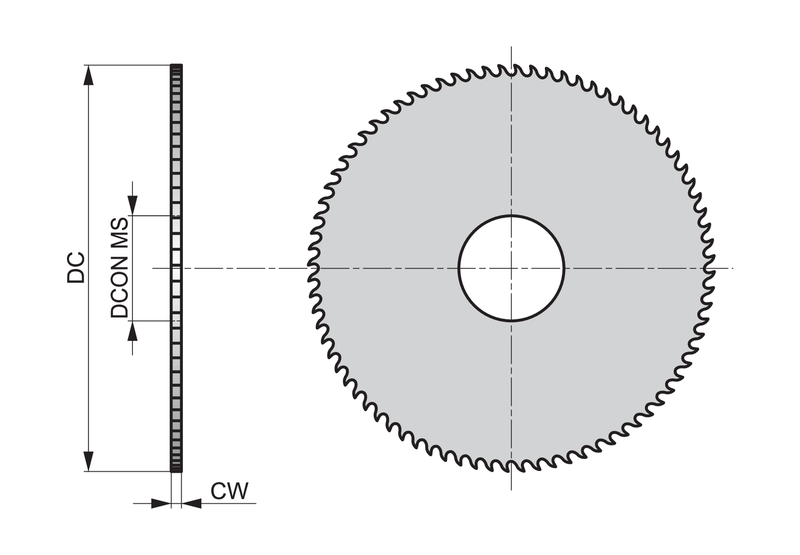

Dimensions
Cutting Diameter — in (DC)3.937"
Cutting Diameter — mm (DC)100.0 mm
Connection Dia. — in (DCON)0.8661"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)100
Tool Information
StandardDIN 1837
Reference Numbers
EDP Number285176
EAN7320760285176
File Type Download
D747100,0X2,5 — Line Drawing PDF Download
