D74580.0X1.6
D74580.0X1.6
D74580.0X1.6

D74580.0X1.6

UGC DOR5985925
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$68.00 CAD - $68.00 CAD
$68.00 CAD
$68.00 CAD - $68.00 CAD
$68.00 CAD

Vendu en lots de : 1

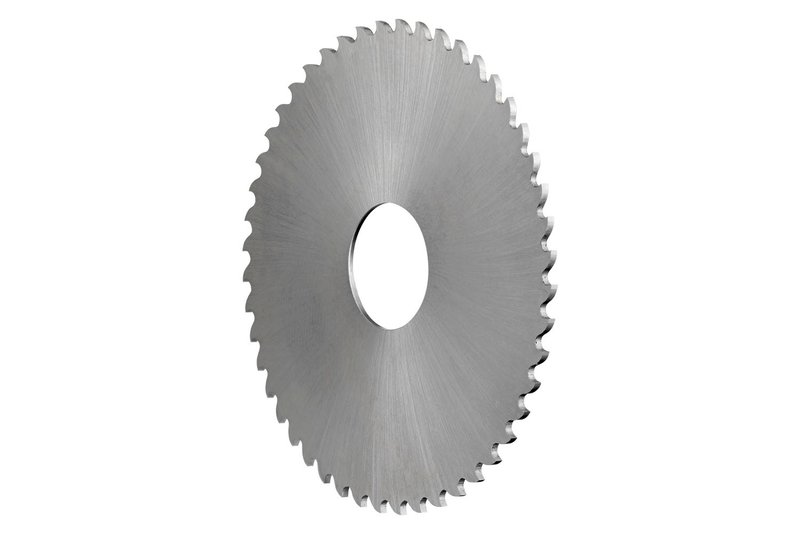

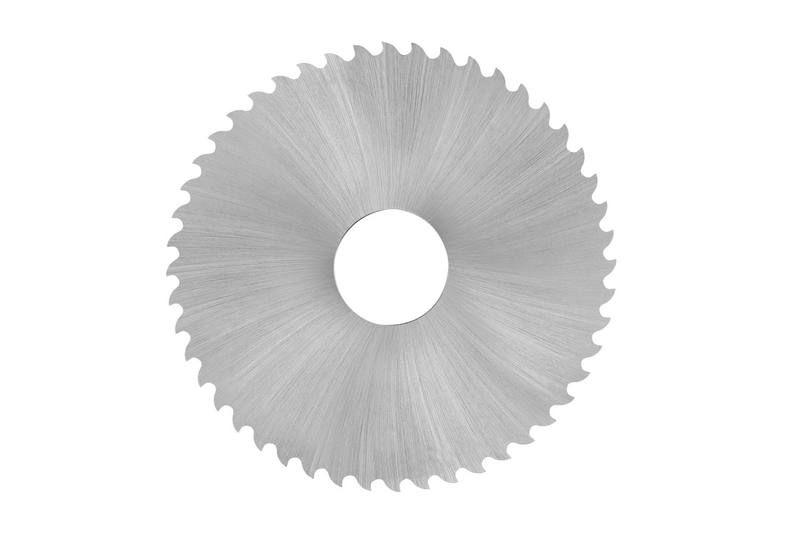

Scie à refendre les métaux à denture grossière et 48 dents, diamètre 80 mm avec une largeur de coupe de 1,6 mm, selon la norme DIN 1838 avec un alésage de 22 mm, HSS avec finition brillante et angle de coupe de 15° pour le tronçonnage, l'entaillage peu profond et l'entaillage profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D74580.0X1.6
GradeLumineux
Product Number5985925
Product FamilyD745
Dimensions
Cutting Diameter — in (DC)3.1496"
Cutting Diameter — mm (DC)80.0 mm
Connection Dia. — in (DCON)0.8661"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)48
Tool Information
StandardDIN 1838
Reference Numbers
EDP Number283820
EAN7320760283820
File Type Download

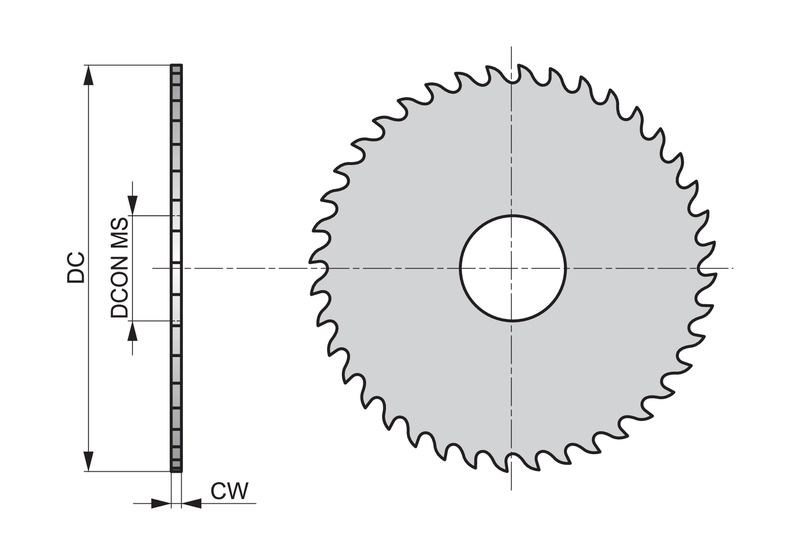

D74580.0X1.6 — Line Drawing PDF Download
