D750225.0X2.0
D750225.0X2.0
D750225.0X2.0

D750225.0X2.0

UGC DOR5985943
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$182.86 CAD - $182.86 CAD
$182.86 CAD
$182.86 CAD - $182.86 CAD
$182.86 CAD

Vendu en lots de : 1

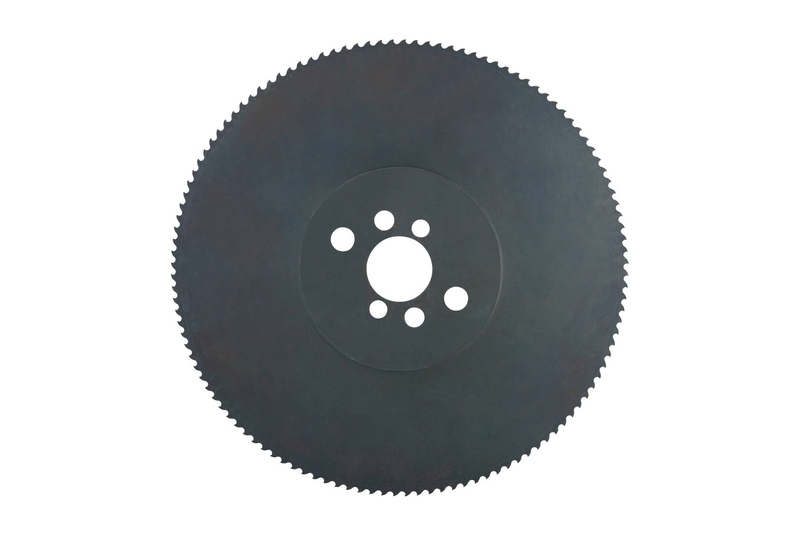

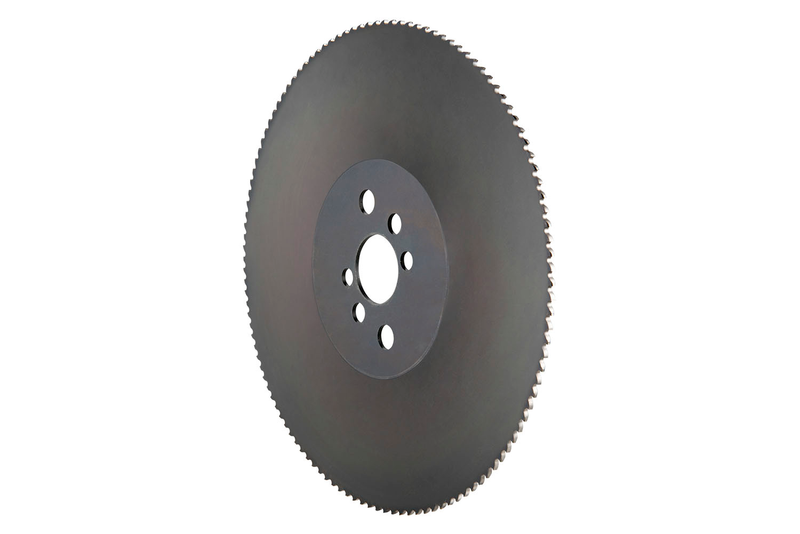

Scie à refendre les métaux à denture grossière et 140 dents, diamètre 225mm avec 2mm de largeur de coupe, selon la norme DORMER avec un alésage de 32mm et des trous d'entraînement standard, HSS avec finition trempée à la vapeur, et angle de coupe de 18° pour le tronçonnage, le sciage de tubes et le rainurage peu profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)D750225.0X2.0
Product Name (ISO)D750225,0X2,0
GradeTrempé à la vapeur
Product Number5985943
Product FamilyD750
Dimensions
Cutting Diameter — in (DC)8.8583"
Cutting Diameter — mm (DC)225.0 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)140
Tool Information
StandardNorme de travail
Reference Numbers
EDP Number285688
EAN7320760285688
File Type Download

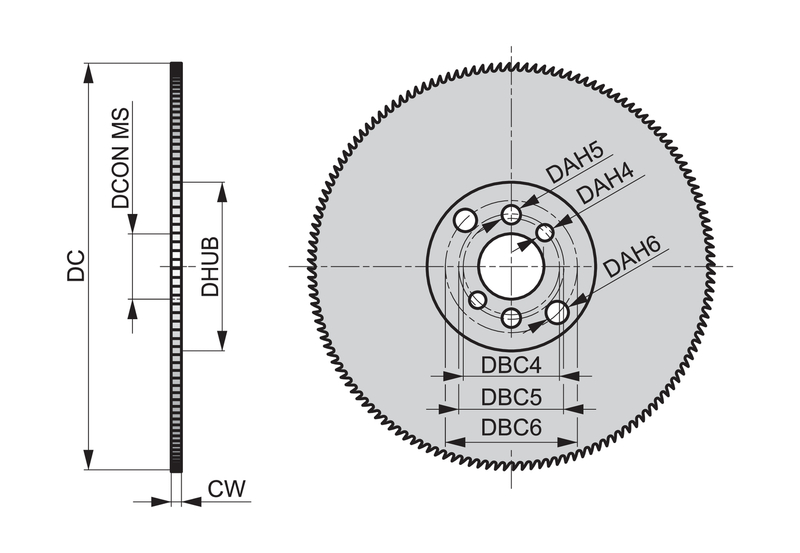

D750225.0X2.0 — Line Drawing PDF Download
