C82210.5X2.0
C82210.5X2.0
C82210.5X2.0

C82210.5X2.0

UGC DOR5985951
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$193.46 CAD - $193.46 CAD
$193.46 CAD
$193.46 CAD - $193.46 CAD
$193.46 CAD

Vendu en lots de : 1

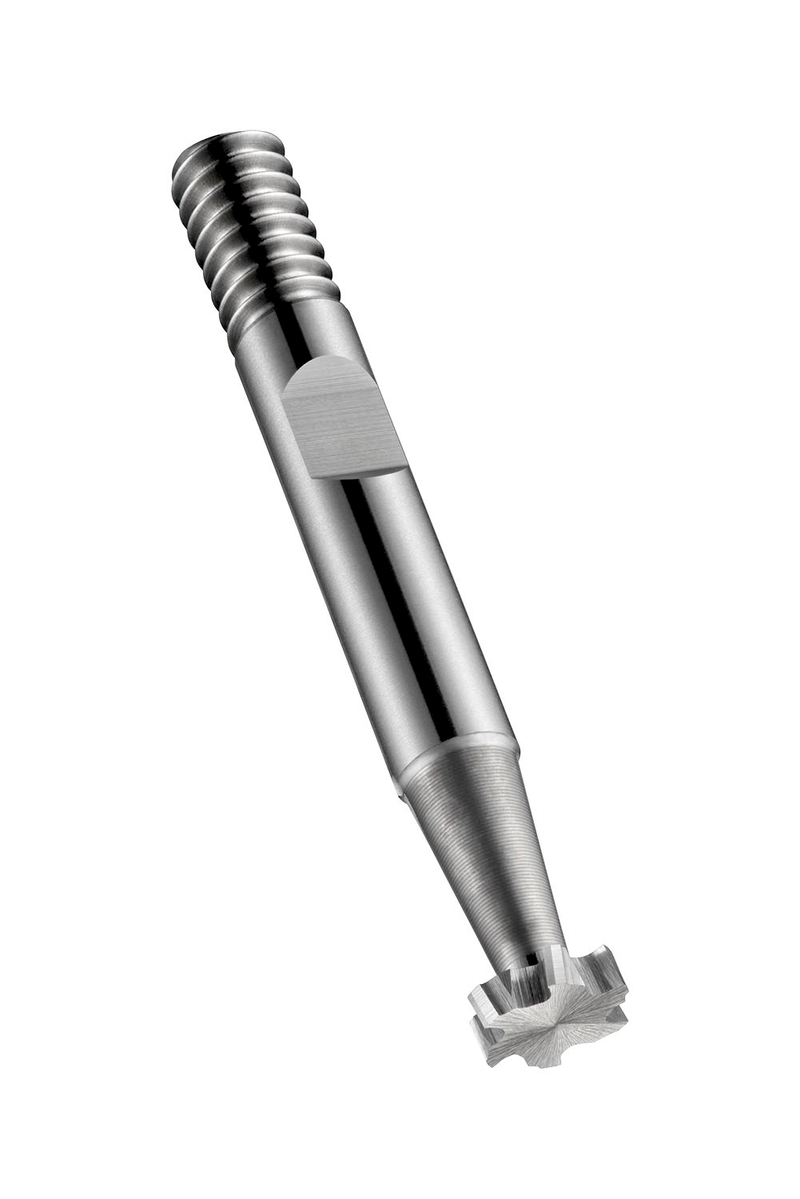

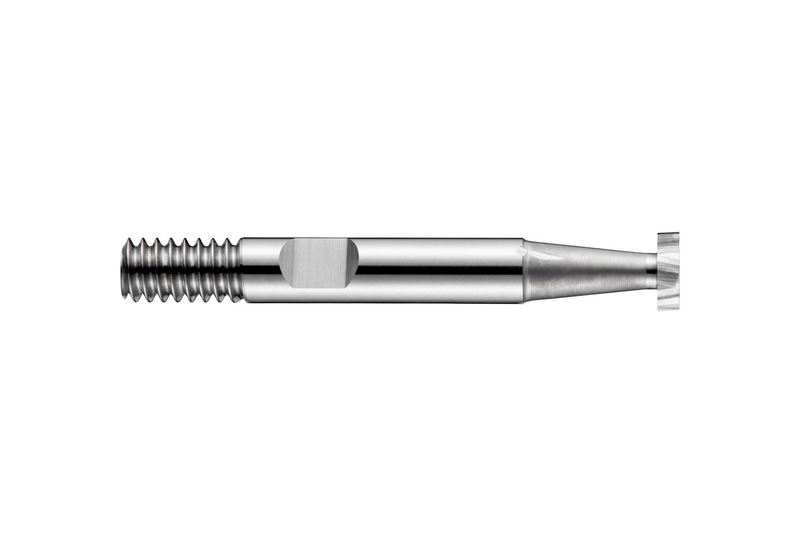

Fraise-scie Woodruff à 8 dents, diamètre 10,5 mm, largeur de coupe 2 mm et longueur totale 50 mm, selon la norme DIN 850 avec une queue combinée de 6 mm avec méplat Weldon et filetage, HSS-E à base de cobalt avec finition brillante, hélice de 10° et angle de coupe de 10° pour le fraisage de rainures de clavette dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C82210.5X2.0
GradeLumineux
Product Number5985951
Product FamilyC822
Insert Geometry
Depth of Cut Max — in (APMX)0.0787"
Depth of Cut Max — mm (APMX)2.0 mm

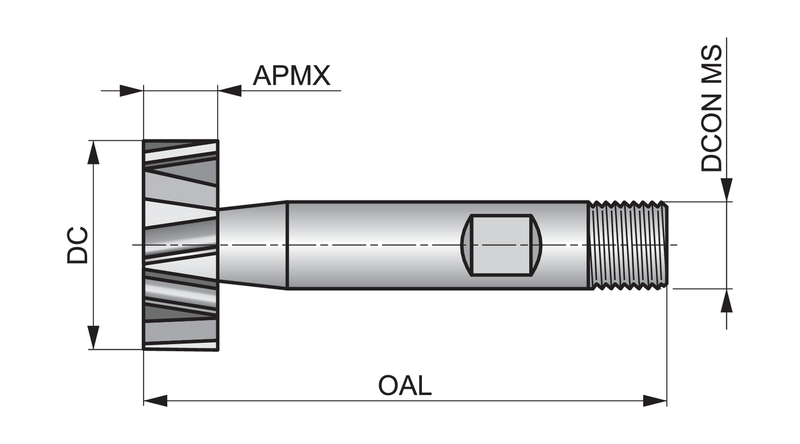

Dimensions
Cutting Diameter — in (DC)0.4134"
Cutting Diameter — mm (DC)10.5 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)8
Helix Angle (FHA)10.0°
Tool Information
ShankQueue cylindrique DIN 1835 B / D
StandardDIN 850
Reference Numbers
EDP Number74633
EAN7320760074633
File Type Download
C82210.5X2.0 — Line Drawing PDF Download
