D74580.0X2.0
D74580.0X2.0
D74580.0X2.0

D74580.0X2.0

UGC DOR5985958
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$74.29 CAD - $74.29 CAD
$74.29 CAD
$74.29 CAD - $74.29 CAD
$74.29 CAD

Vendu en lots de : 1

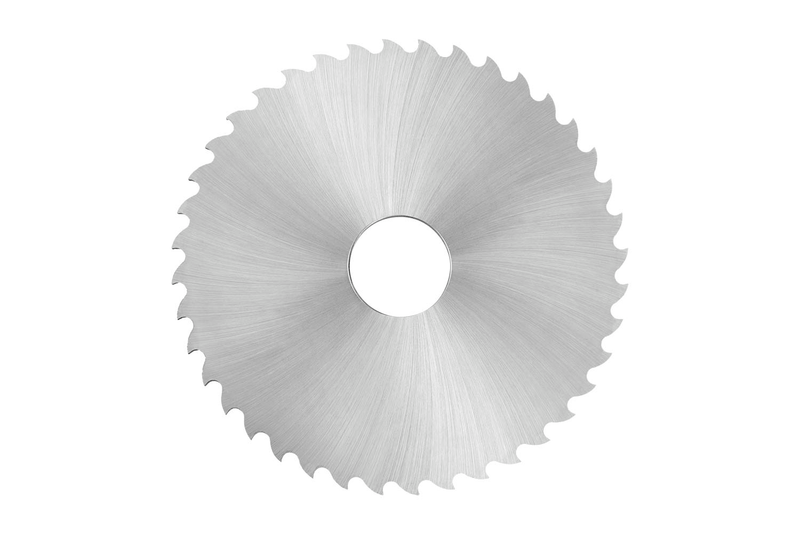

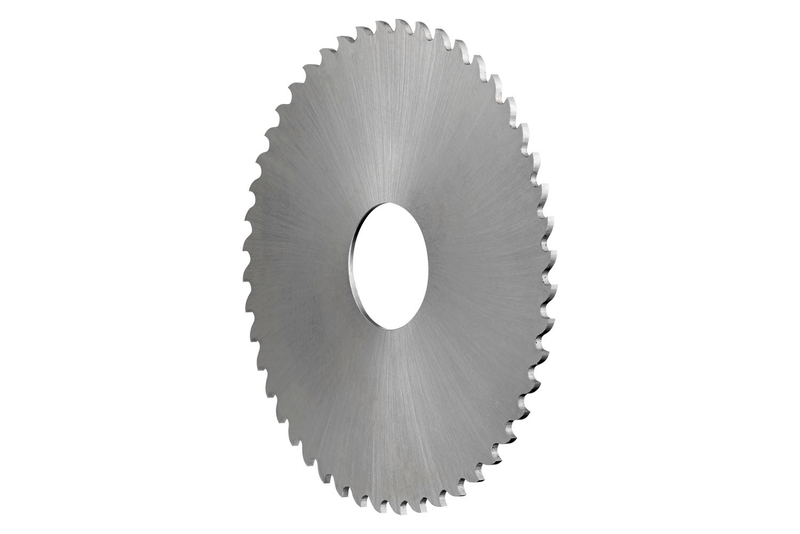

Scie circulaire à refendre avec pas gros et 40 dents, diamètre 80mm avec largeur de coupe 2mm, selon la norme DIN 1838 avec un alésage 22mm, HSS avec finition brillante, et angle de coupe 15° pour tronçonnage, rainurage peu profond et rainurage profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D74580.0X2.0
GradeLumineux
Product Number5985958
Product FamilyD745
Dimensions
Cutting Diameter — in (DC)3.1496"
Cutting Diameter — mm (DC)80.0 mm
Connection Dia. — in (DCON)0.8661"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)40
Tool Information
StandardDIN 1838
Reference Numbers
EDP Number283837
EAN7320760283837
File Type Download

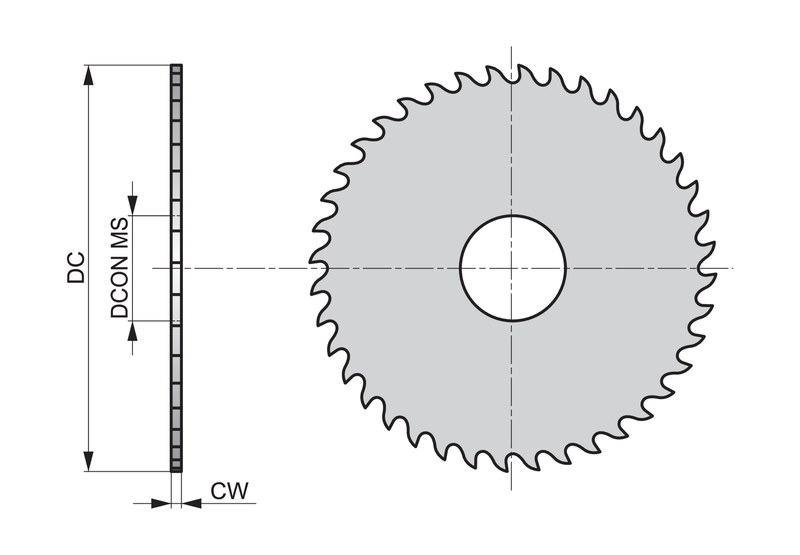

D74580.0X2.0 — Line Drawing PDF Download
