UGC DOR5985967
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$136.00 CAD - $136.00 CAD
$136.00 CAD
$136.00 CAD - $136.00 CAD
$136.00 CAD

Vendu en lots de : 1

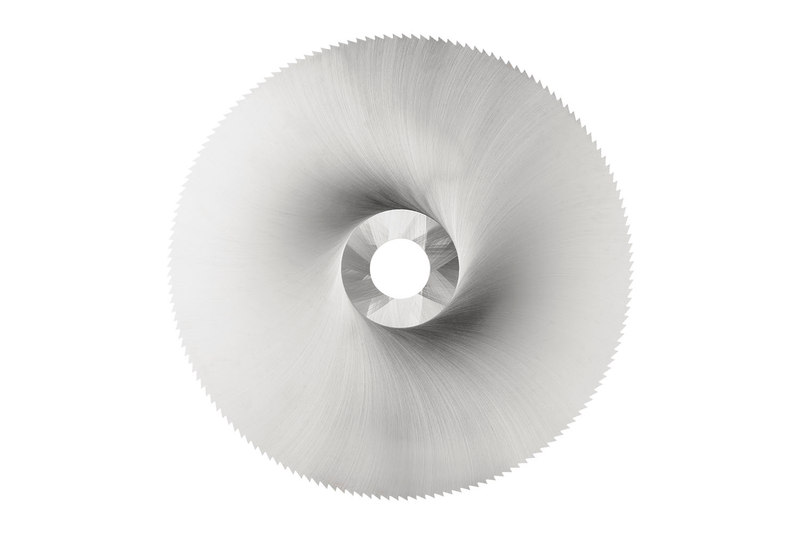

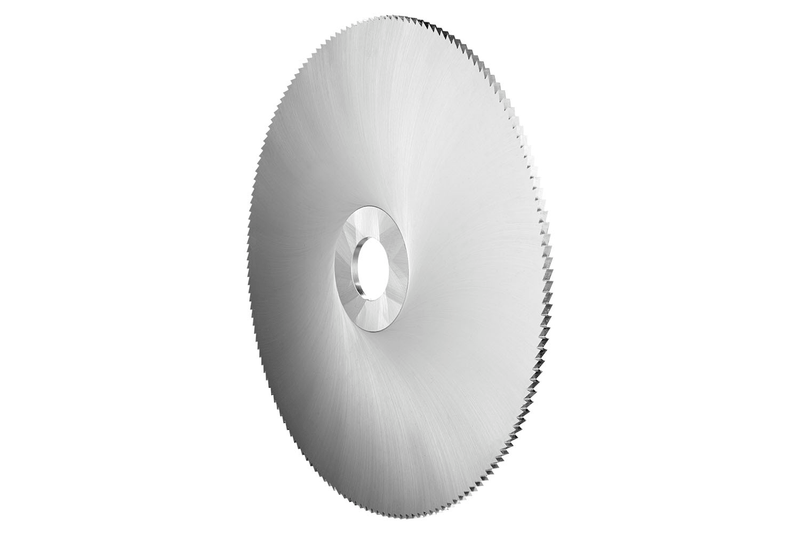

Scie à refendre en métal à pas fin et 160 dents, diamètre 160 mm avec 1 mm de largeur de coupe, selon la norme DIN 1837 avec un alésage de 32 mm, HSS avec finition brillante et un angle de coupe de 5° pour le sciage de tronçonnage, le sciage de tubes et le rainurage peu profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D747160.0X1.0
GradeLumineux
Product Number5985967
Product FamilyD747
Dimensions
Cutting Diameter — in (DC)6.2992"
Cutting Diameter — mm (DC)160.0 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)160
Tool Information
StandardDIN 1837
Reference Numbers
EDP Number285329
EAN7320760285329
File Type Download
D747160.0X1.0 — Line Drawing PDF Download
