C82216.5X3.0
C82216.5X3.0
C82216.5X3.0

C82216.5X3.0

UGC DOR5985968
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$201.39 CAD - $201.39 CAD
$201.39 CAD
$201.39 CAD - $201.39 CAD
$201.39 CAD

Vendu en lots de : 1

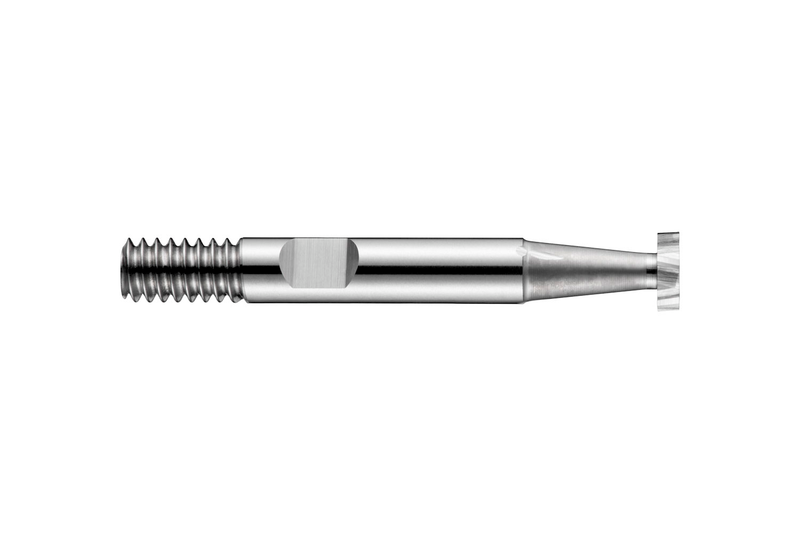

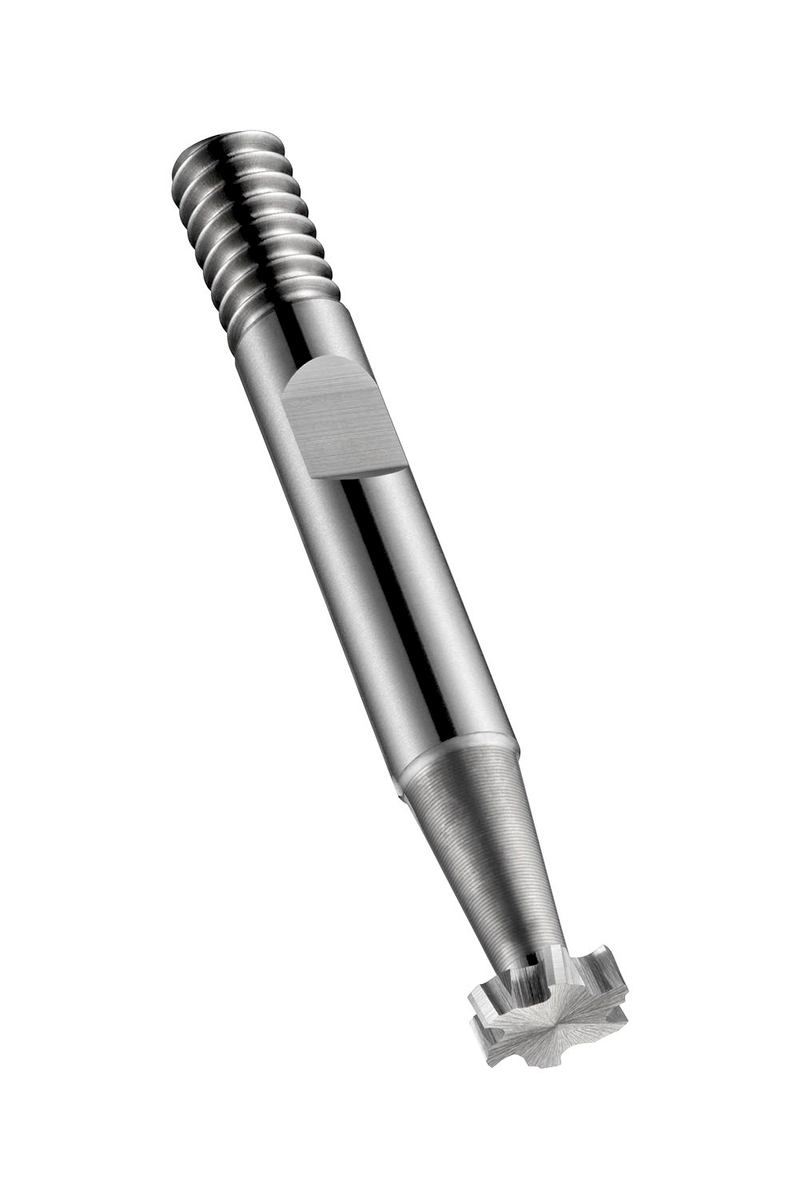

Fraise à rainure pour clavette de Woodruff avec 8 dents, diamètre 16,5mm avec 3mm de largeur de coupe et longueur totale de 56mm, selon la norme DIN 850 avec une queue combinée de 10mm avec méplat weldon et filetage, HSS-E à base de cobalt avec finition brillante, hélice de 10° et angle de coupe de 10° pour le fraisage de rainures de clavette dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C82216.5X3.0
GradeLumineux
Product Number5985968
Product FamilyC822

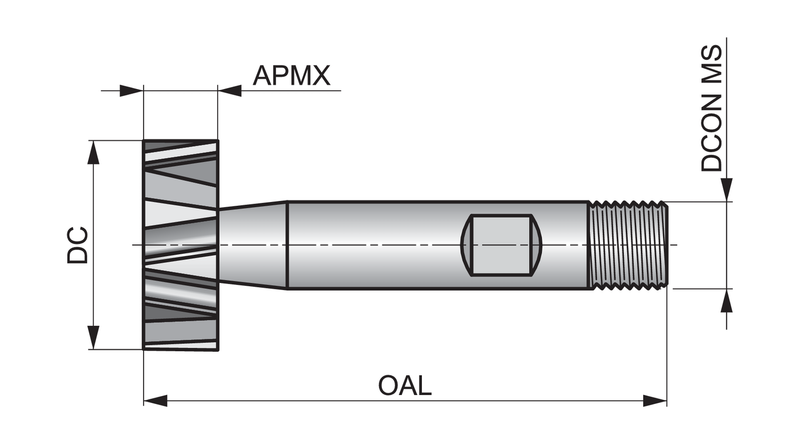

Insert Geometry
Depth of Cut Max — in (APMX)0.1181"
Depth of Cut Max — mm (APMX)3.0 mm
Dimensions
Cutting Diameter — in (DC)0.6496"
Cutting Diameter — mm (DC)16.5 mm
Overall Length — in (OAL)2.2047"
Overall Length — mm (OAL)56.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)8
Helix Angle (FHA)10.0°
Tool Information
ShankQueue cylindrique DIN 1835 B / D
StandardDIN 850
Reference Numbers
EDP Number74671
EAN7320760074671
File Type Download
C82216.5X3.0 — Line Drawing PDF Download
