D74763.0X.5
D74763.0X.5
D74763.0X.5

D74763.0X.5

UGC DOR5985969
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$48.74 CAD - $48.74 CAD
$48.74 CAD
$48.74 CAD - $48.74 CAD
$48.74 CAD

Vendu en lots de : 5

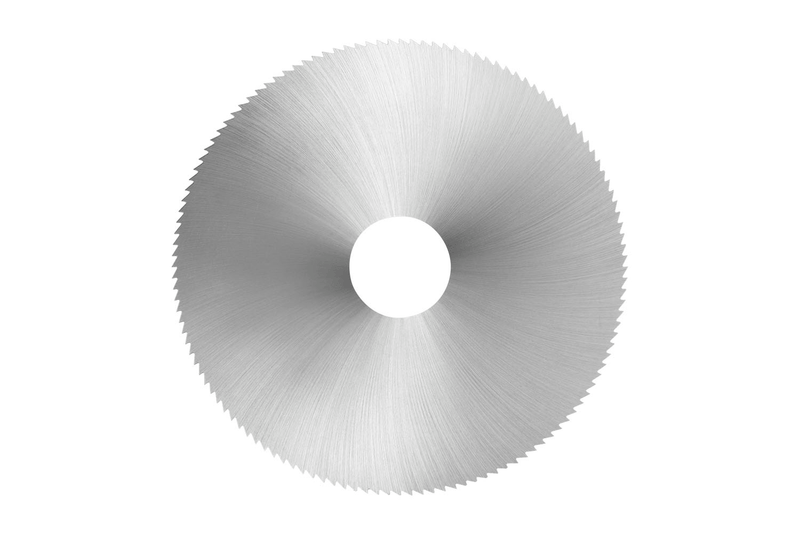

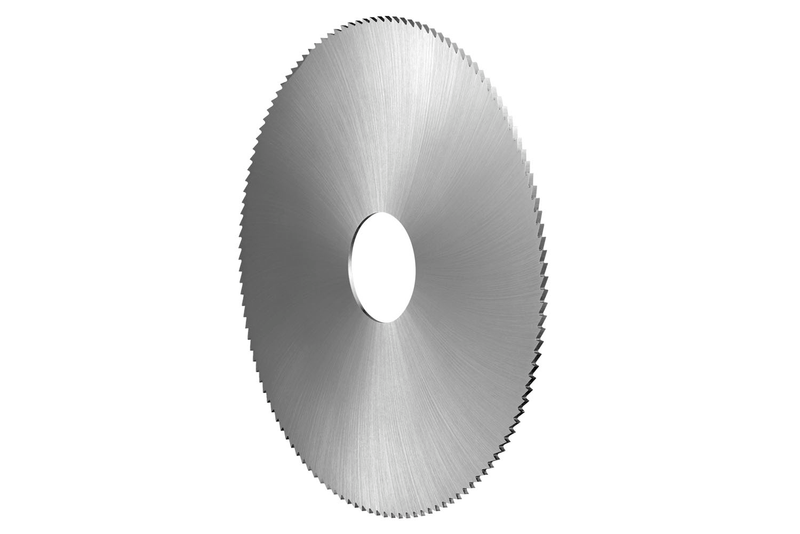

Scie à refendre en acier rapide à denture fine et à 128 dents, diamètre 63 mm avec une épaisseur de coupe de 0,5 mm, selon la norme DIN 1837 avec un alésage de 16 mm, HSS avec finition brillante et un angle d'attaque de 5° pour le sciage de tronçonnage, le sciage de tubes et le rainurage peu profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D74763.0X.5
GradeLumineux
Product Number5985969
Product FamilyD747

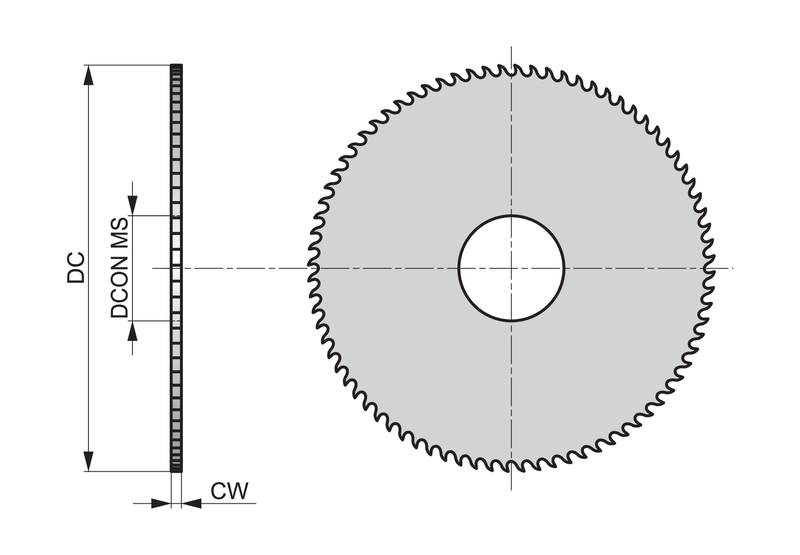

Dimensions
Cutting Diameter — in (DC)2.4803"
Cutting Diameter — mm (DC)63.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)128
Tool Information
StandardDIN 1837
Reference Numbers
EDP Number284827
EAN7320760284827
File Type Download
D74763.0X.5 — Line Drawing PDF Download
