D747160.0X1.5
D747160.0X1.5
D747160.0X1.5

D747160.0X1.5

UGC DOR5985973
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$145.14 CAD - $145.14 CAD
$145.14 CAD
$145.14 CAD - $145.14 CAD
$145.14 CAD

Vendu en lots de : 1

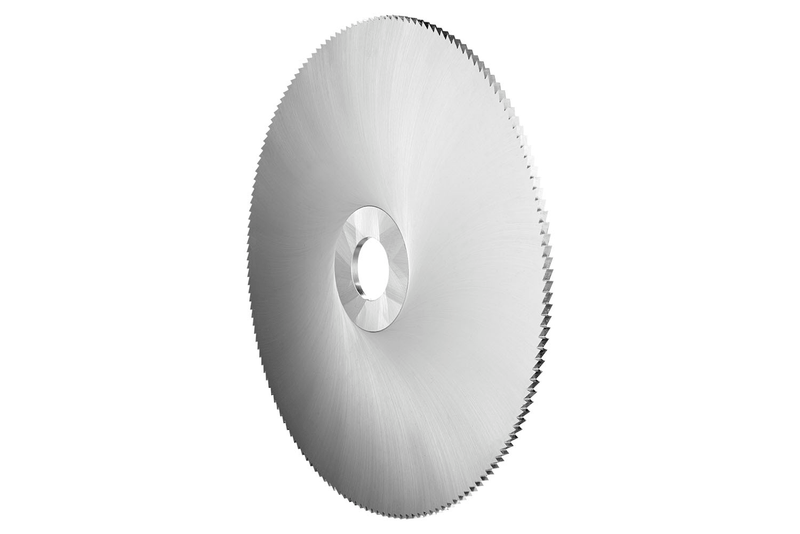

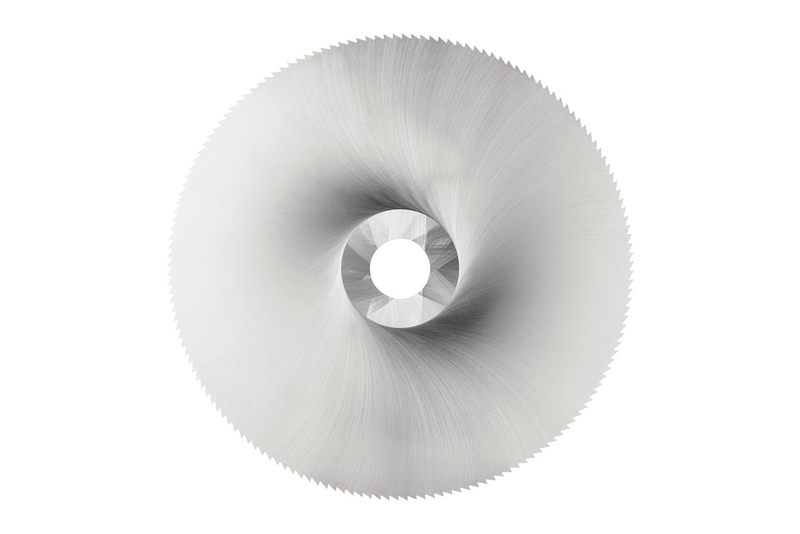

Scie à refendre en acier rapide avec denture fine et 160 dents, diamètre 160 mm avec une largeur de coupe de 1,5 mm, selon la norme DIN 1837 avec alésage de 32 mm, HSS avec finition brillante et angle de coupe de 5° pour le tronçonnage, le sciage de tubes et le rainurage peu profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D747160.0X1.5
GradeLumineux
Product Number5985973
Product FamilyD747
Dimensions
Cutting Diameter — in (DC)6.2992"
Cutting Diameter — mm (DC)160.0 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)160
Tool Information
StandardDIN 1837
Reference Numbers
EDP Number285343
EAN7320760285343
File Type Download
D747160.0X1.5 — Line Drawing PDF Download
