C82216.5X5.0
C82216.5X5.0
C82216.5X5.0

C82216.5X5.0

UGC DOR5985974
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$201.39 CAD - $201.39 CAD
$201.39 CAD
$201.39 CAD - $201.39 CAD
$201.39 CAD

Vendu en lots de : 1

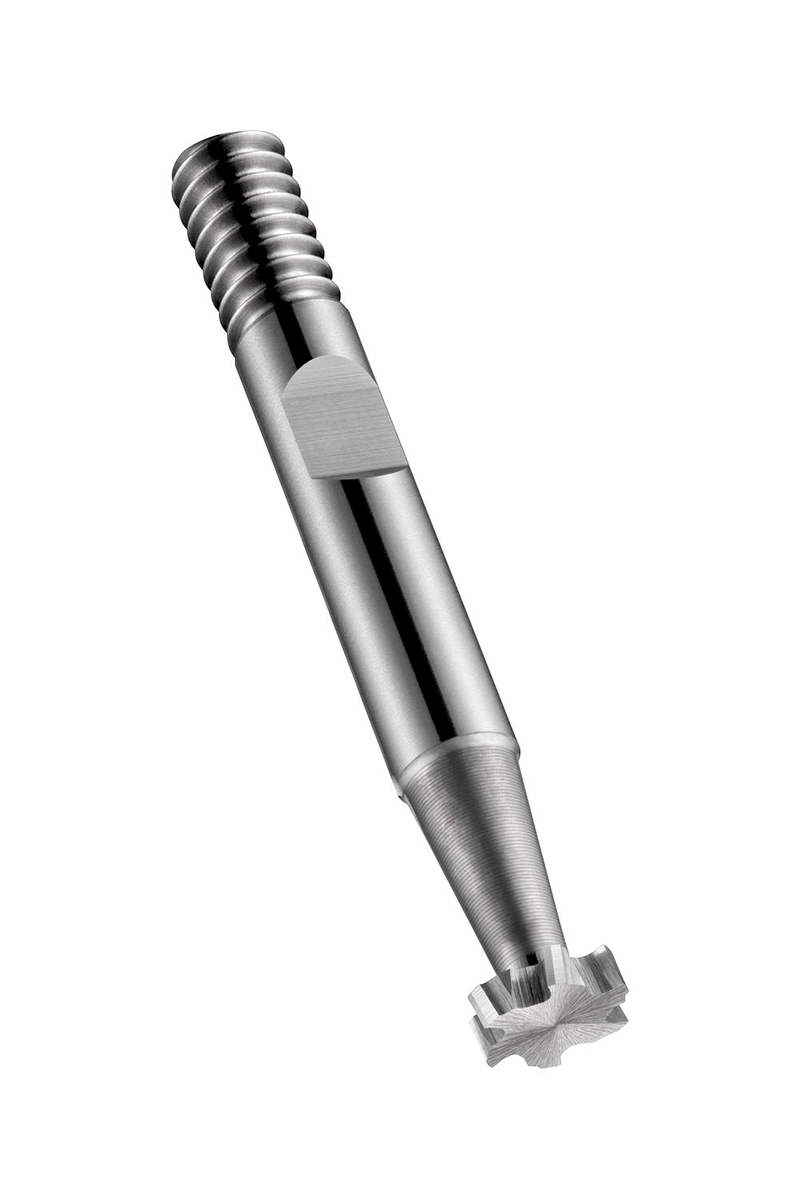

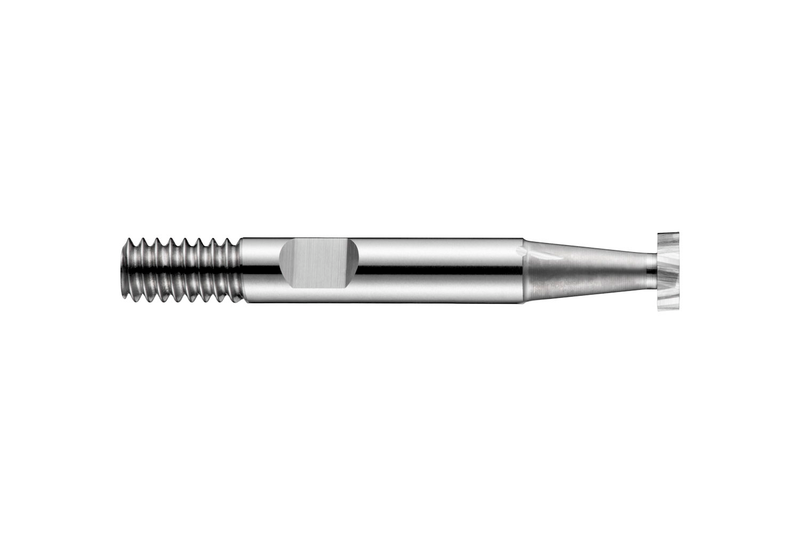

Fraise à rainurer Woodruff à 8 dents, diamètre 16,5mm avec une largeur de coupe de 5mm et une longueur totale de 56mm, conforme à la norme DIN 850 avec une queue combinée de 10mm avec méplat weldon et filetage, HSS-E à base de cobalt avec finition brillante, hélice de 10° et angle de dépouille de 10° pour le fraisage de rainures de clavette dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C82216.5X5.0
GradeLumineux
Product Number5985974
Product FamilyC822
Insert Geometry
Depth of Cut Max — in (APMX)0.1969"
Depth of Cut Max — mm (APMX)5.0 mm

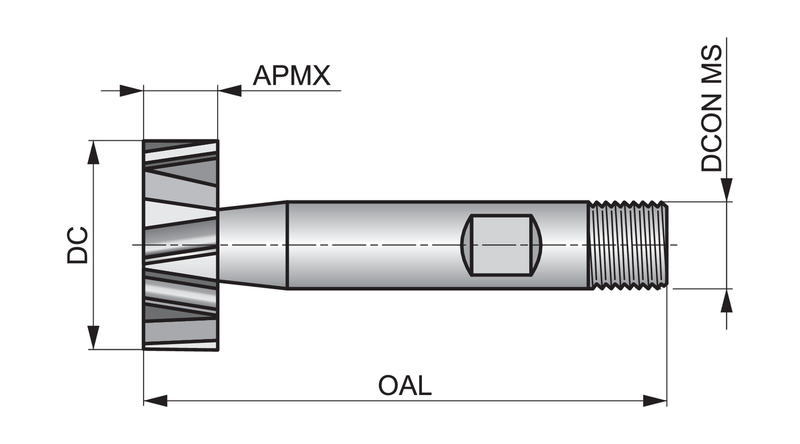

Dimensions
Cutting Diameter — in (DC)0.6496"
Cutting Diameter — mm (DC)16.5 mm
Overall Length — in (OAL)2.2047"
Overall Length — mm (OAL)56.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)8
Helix Angle (FHA)10.0°
Tool Information
ShankQueue cylindrique DIN 1835 B / D
StandardDIN 850
Reference Numbers
EDP Number74695
EAN7320760074695
File Type Download
C82216.5X5.0 — Line Drawing PDF Download
