UGC DOR5985977
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$208.26 CAD - $208.26 CAD
$208.26 CAD
$208.26 CAD - $208.26 CAD
$208.26 CAD

Vendu en lots de : 1

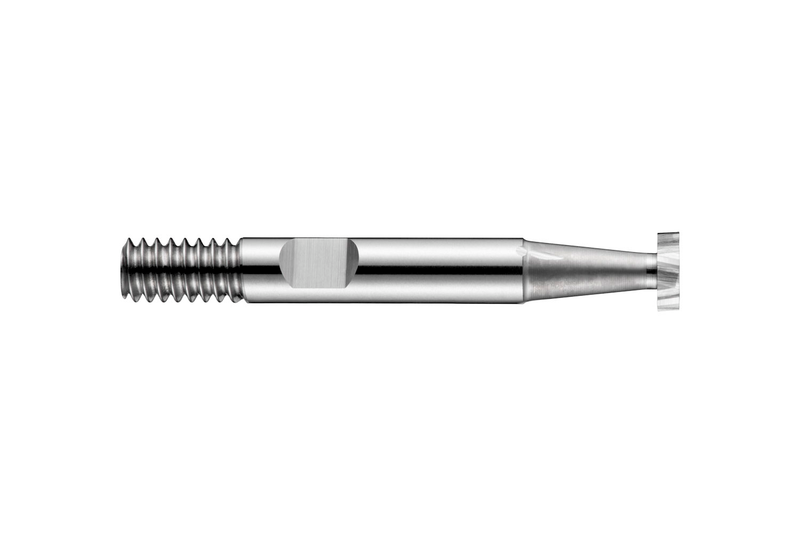

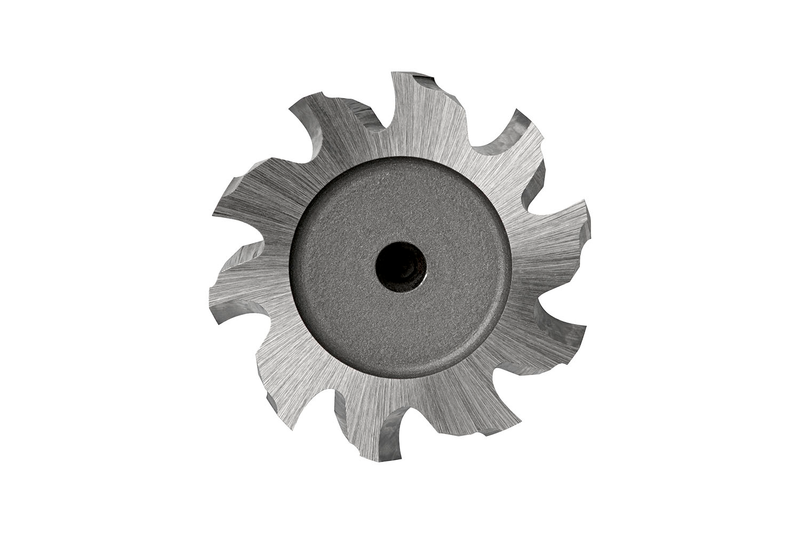

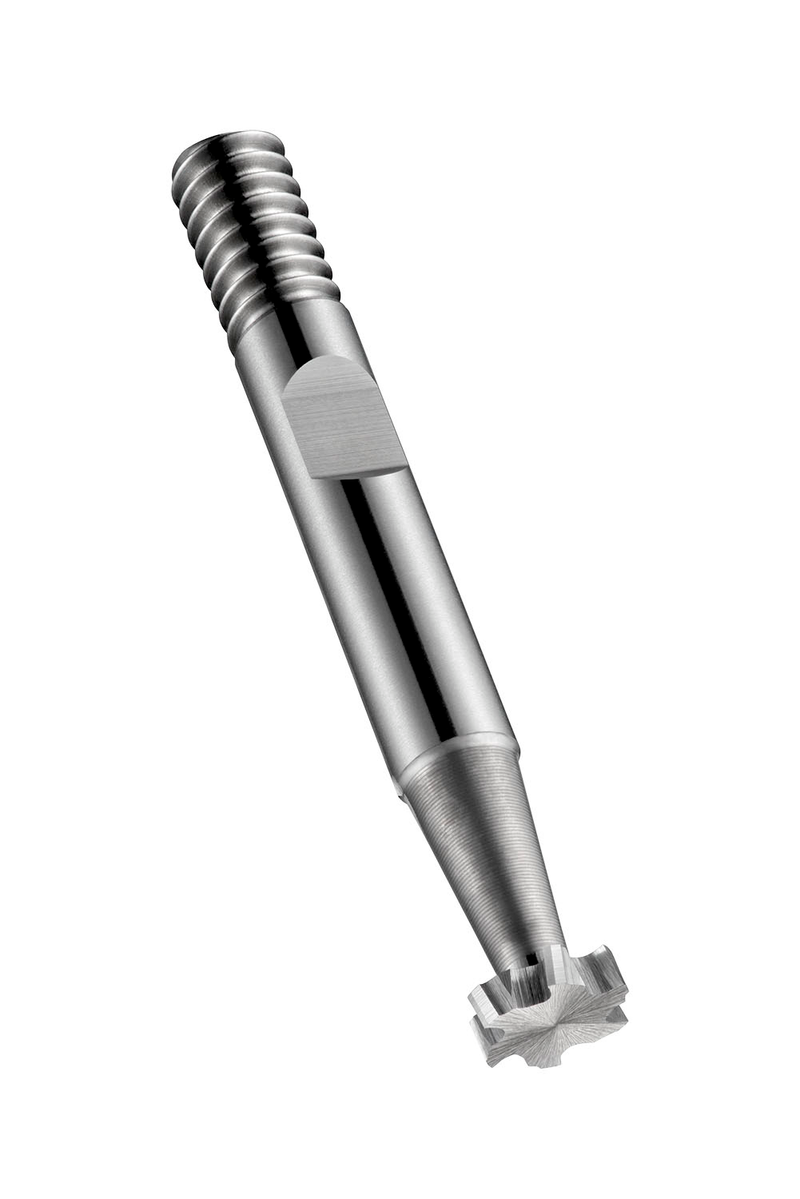

Fraise à rainurer Woodruff à 10 dents, diamètre de 19,5 mm avec largeur de coupe de 3 mm et longueur totale de 63 mm, selon la norme DIN 850 avec une queue combinée de 10 mm avec méplat Weldon et filetage, en HSS-E à base de cobalt avec finition brillante, hélice de 10° et angle de dépouille de 10° pour le fraisage de clavettes dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C82219.5X3.0
GradeLumineux
Product Number5985977
Product FamilyC822
Insert Geometry
Depth of Cut Max — in (APMX)0.1181"
Depth of Cut Max — mm (APMX)3.0 mm

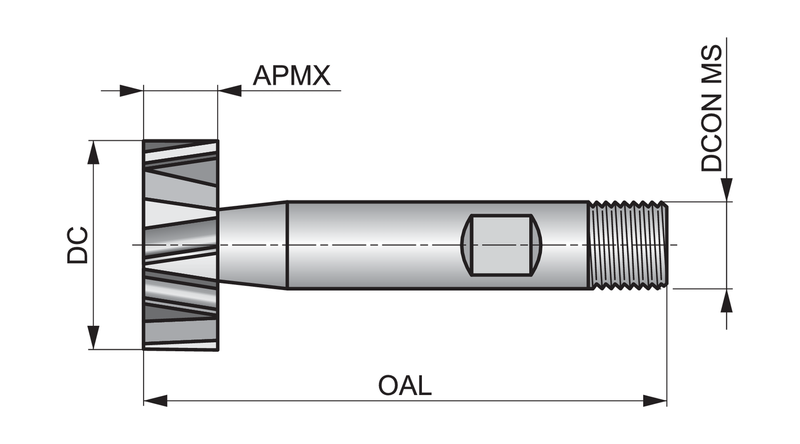

Dimensions
Cutting Diameter — in (DC)0.7677"
Cutting Diameter — mm (DC)19.5 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)10
Helix Angle (FHA)10.0°
Tool Information
ShankQueue cylindrique DIN 1835 B / D
StandardDIN 850
Reference Numbers
EDP Number74701
EAN7320760074701
File Type Download
C82219.5X3.0 — Line Drawing PDF Download
