UGC DOR5985989
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$210.37 CAD - $210.37 CAD
$210.37 CAD
$210.37 CAD - $210.37 CAD
$210.37 CAD

Vendu en lots de : 1

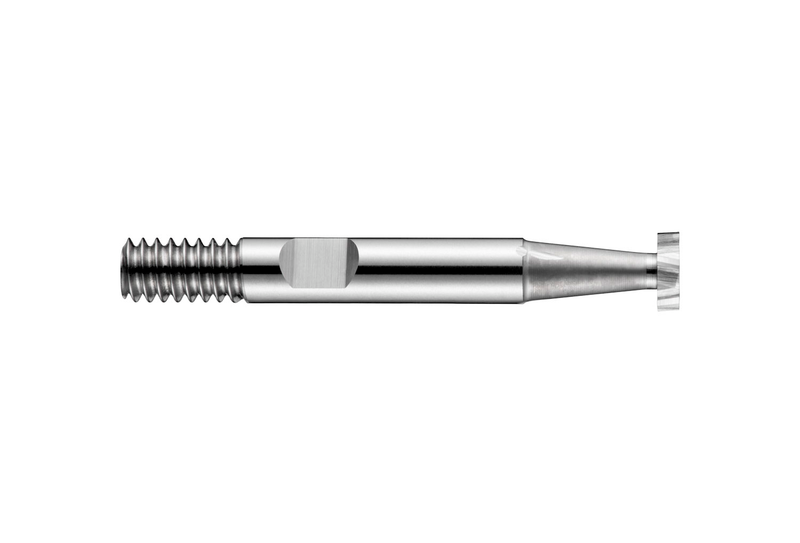

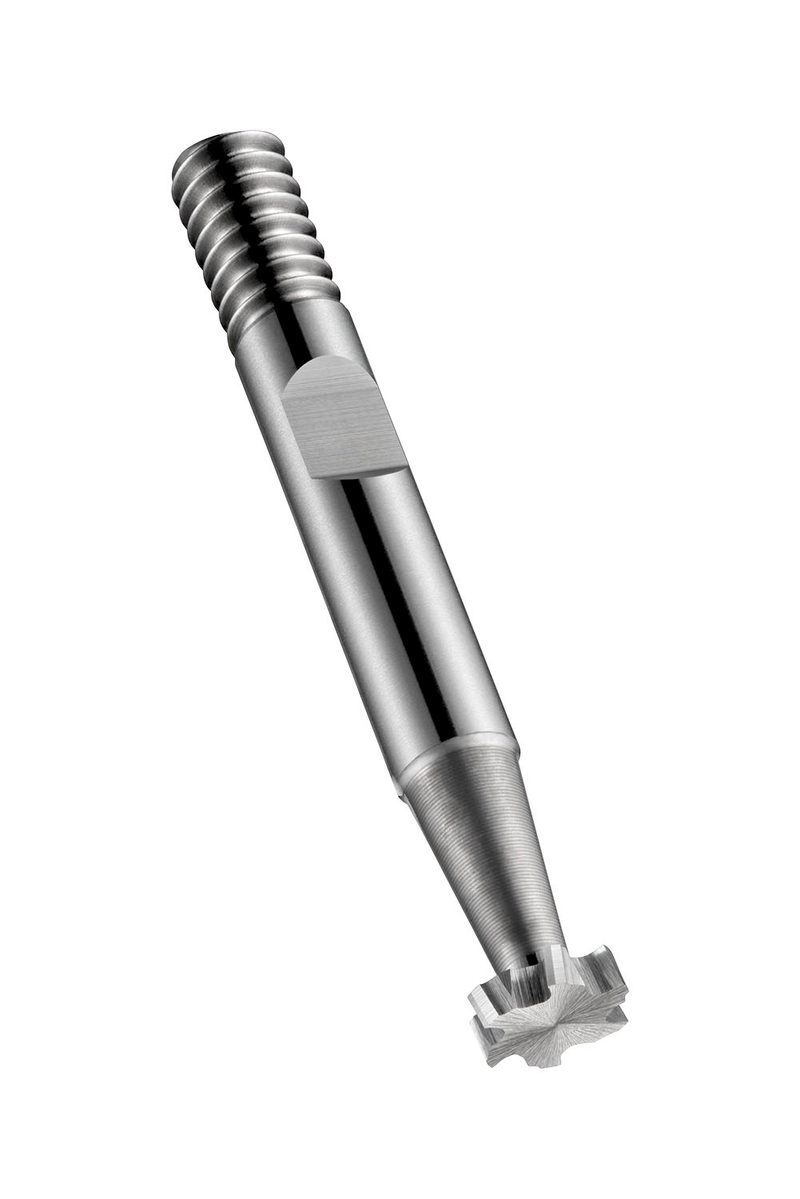

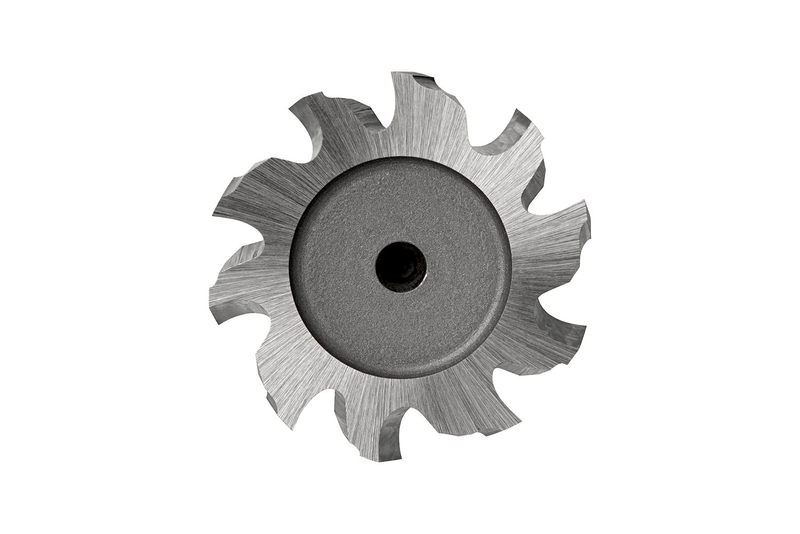

Fraise-disque à queue Woodruff avec 10 dents, diamètre de 22,5 mm, largeur de coupe de 6 mm et longueur totale de 63 mm, conforme à la norme DIN 850 avec une queue combinée de 10 mm avec méplat Weldon et filetage, en HSS-E à base de cobalt avec finition brillante, hélice à 10° et angle de dépouille à 10° pour le fraisage de rainures de clavette dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C82222.5X6.0
GradeLumineux
Product Number5985989
Product FamilyC822
Insert Geometry
Depth of Cut Max — in (APMX)0.2362"
Depth of Cut Max — mm (APMX)6.0 mm

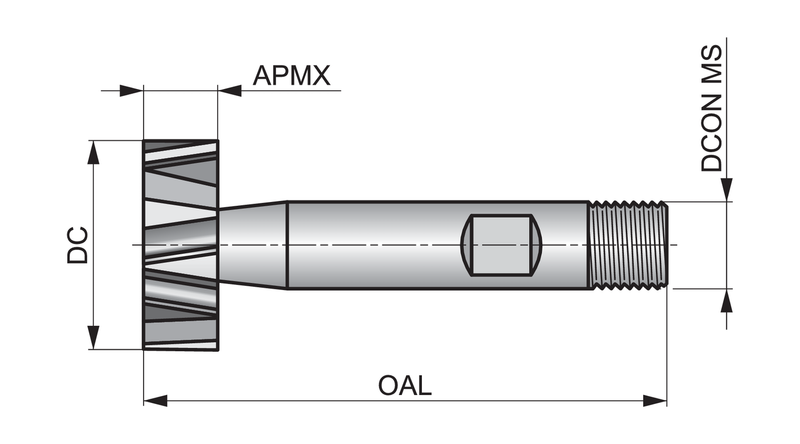

Dimensions
Cutting Diameter — in (DC)0.8858"
Cutting Diameter — mm (DC)22.5 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)10
Helix Angle (FHA)10.0°
Tool Information
ShankQueue cylindrique DIN 1835 B / D
StandardDIN 850
Reference Numbers
EDP Number74749
EAN7320760074749
File Type Download
C82222.5X6.0 — Line Drawing PDF Download
