UGC DOR5986001
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$293.36 CAD - $293.36 CAD
$293.36 CAD
$293.36 CAD - $293.36 CAD
$293.36 CAD

Vendu en lots de : 1

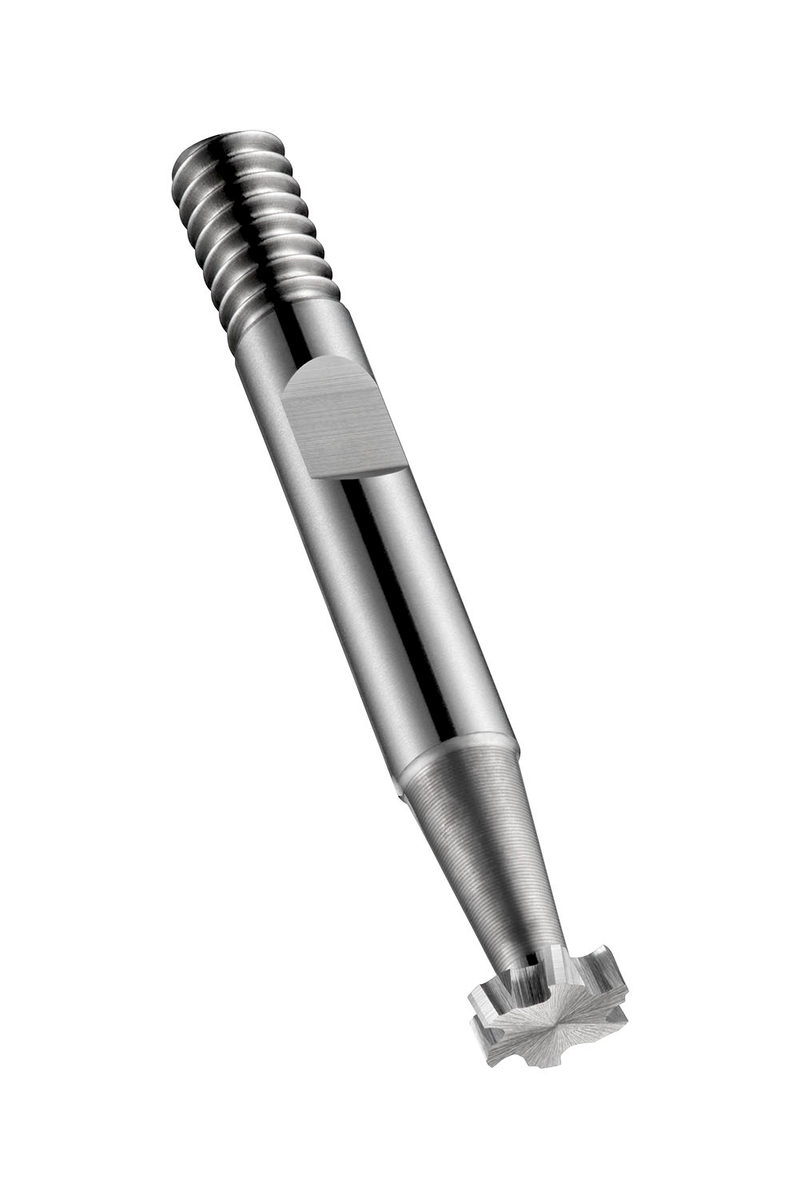

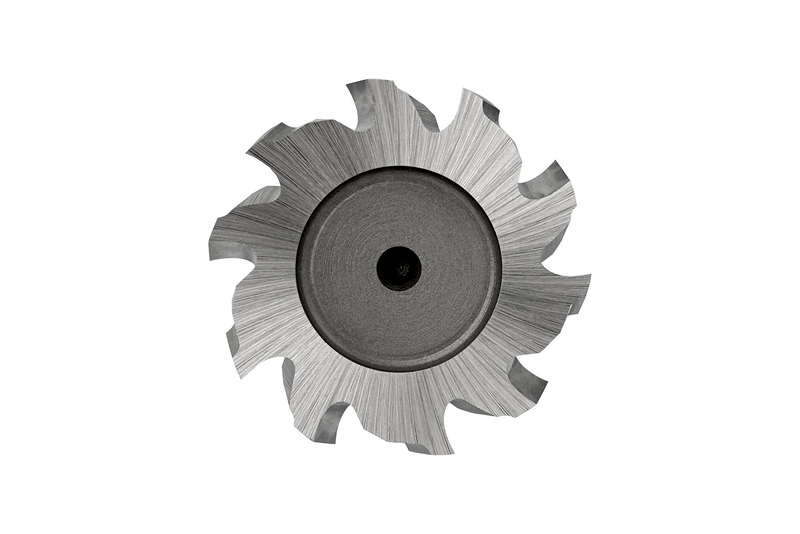

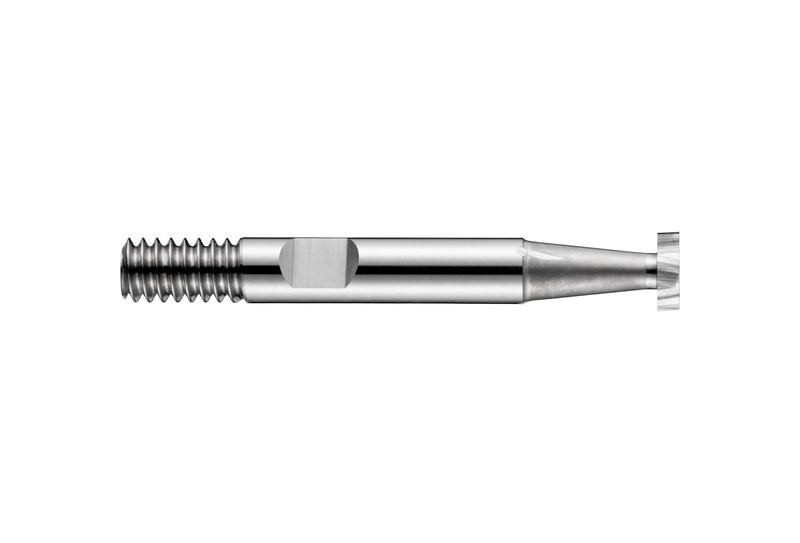

Fraise à rainurer Woodruff à 12 dents, diamètre 28,5 mm avec une largeur de coupe de 10 mm et une longueur totale de 71 mm, selon la norme DIN 850 avec une queue combinée de 12 mm avec méplat Weldon et filetage, HSS-E à base de cobalt avec finition brillante, hélice de 10° et angle de dépouille de 10° pour le fraisage de rainures de clavette dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C82228.5X10.0
GradeLumineux
Product Number5986001
Product FamilyC822

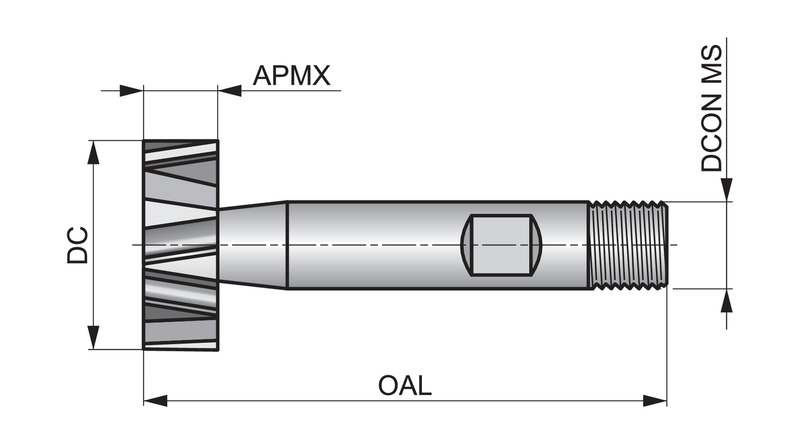

Insert Geometry
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — in (DC)1.122"
Cutting Diameter — mm (DC)28.5 mm
Overall Length — in (OAL)2.7953"
Overall Length — mm (OAL)71.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)12
Helix Angle (FHA)10.0°
Tool Information
ShankQueue cylindrique DIN 1835 B / D
StandardDIN 850
Reference Numbers
EDP Number74770
EAN7320760074770
File Type Download
C82228.5X10.0 — Line Drawing PDF Download
