C82228.5X6.0
C82228.5X6.0
C82228.5X6.0
C82228.5X6.0

C82228.5X6.0

UGC DOR5986004
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$353.61 CAD - $353.61 CAD
$353.61 CAD
$353.61 CAD - $353.61 CAD
$353.61 CAD

Vendu en lots de : 1

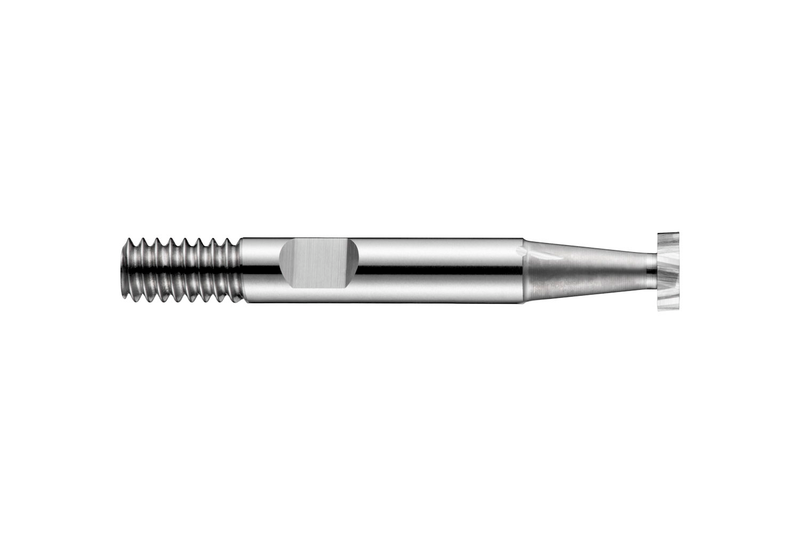

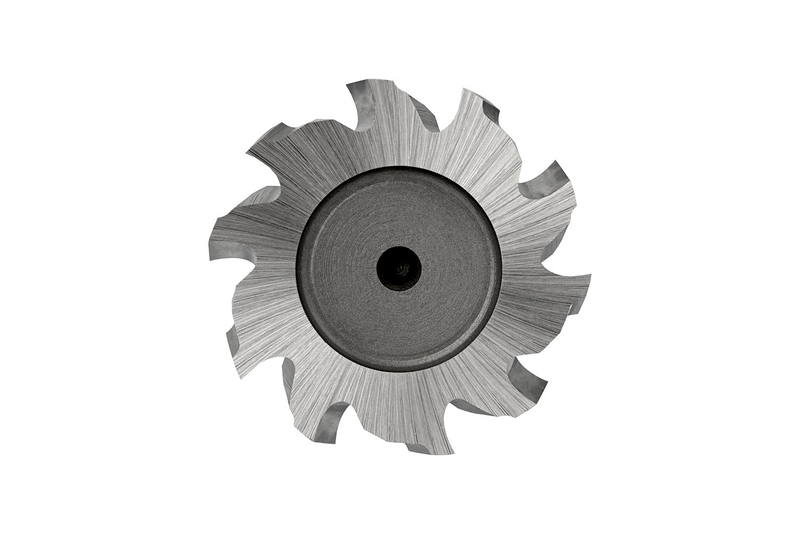

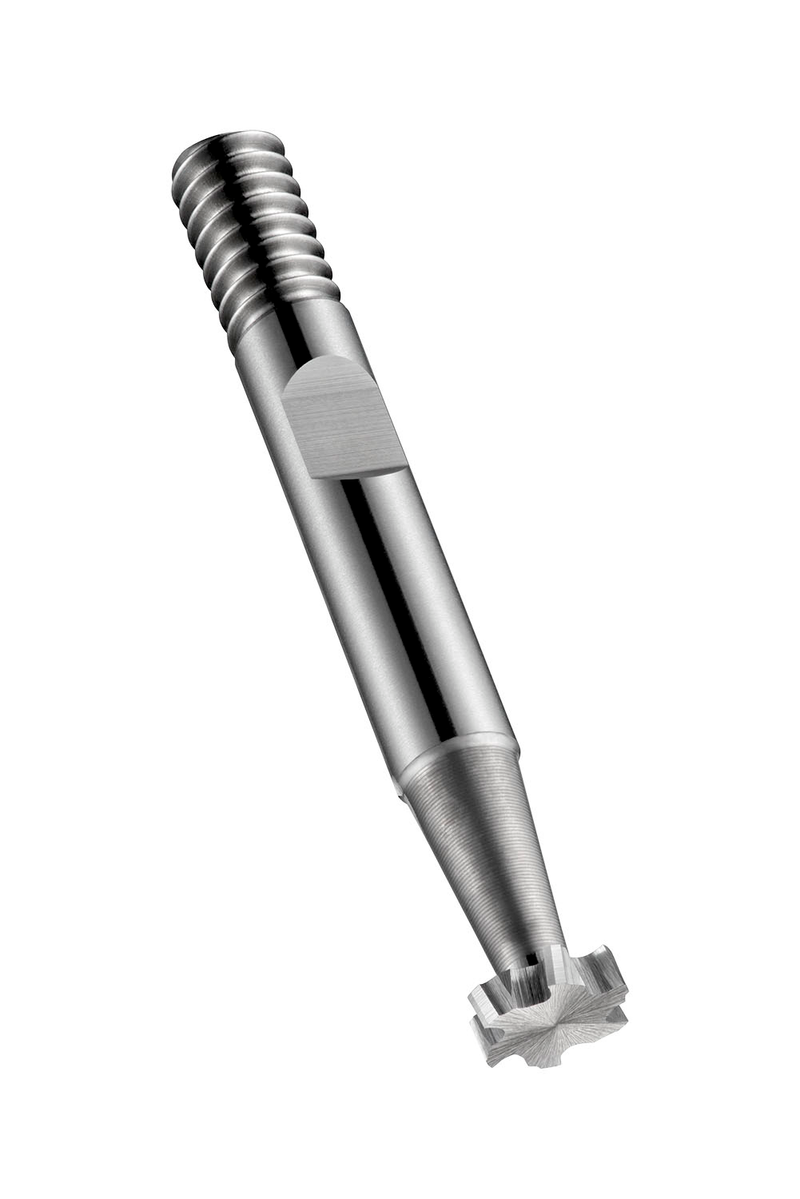

Fraise-scie à rainurer Woodruff 12 dents, diamètre 28,5mm, largeur de coupe 6mm et longueur totale 63mm, conforme à la norme DIN 850 avec une queue combinée de 10mm avec méplat Weldon et filetage, en HSS-E au cobalt avec finition brillante, hélice à 10° et angle de dépouille à 10° pour le fraisage de clavettes dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C82228.5X6.0
GradeLumineux
Product Number5986004
Product FamilyC822
Insert Geometry
Depth of Cut Max — in (APMX)0.2362"
Depth of Cut Max — mm (APMX)6.0 mm

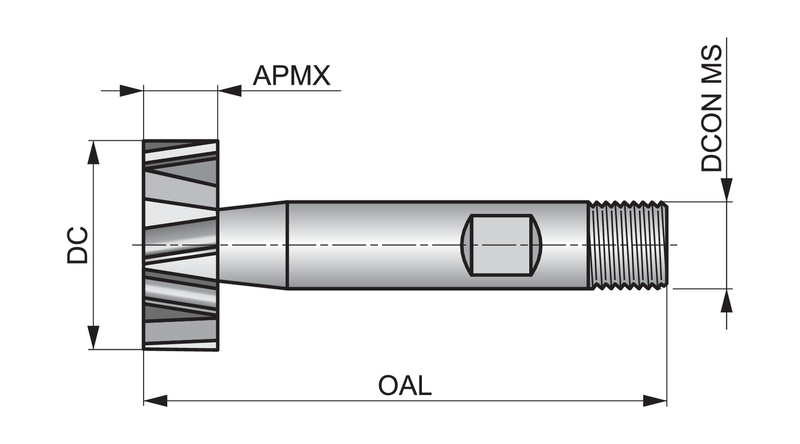

Dimensions
Cutting Diameter — in (DC)1.122"
Cutting Diameter — mm (DC)28.5 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)12
Helix Angle (FHA)10.0°
Tool Information
ShankQueue cylindrique DIN 1835 B / D
StandardDIN 850
Reference Numbers
EDP Number74787
EAN7320760074787
File Type Download
C82228.5X6.0 — Line Drawing PDF Download
