UGC DOR5986007
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$353.61 CAD - $353.61 CAD
$353.61 CAD
$353.61 CAD - $353.61 CAD
$353.61 CAD

Vendu en lots de : 1

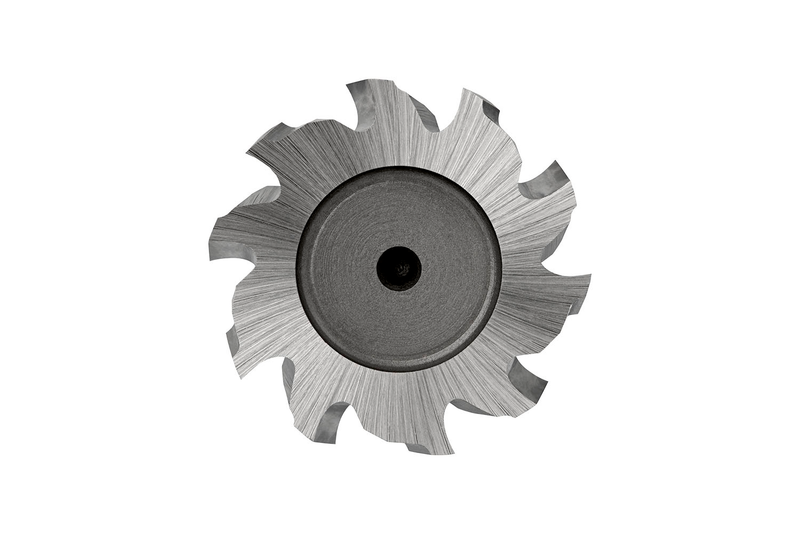

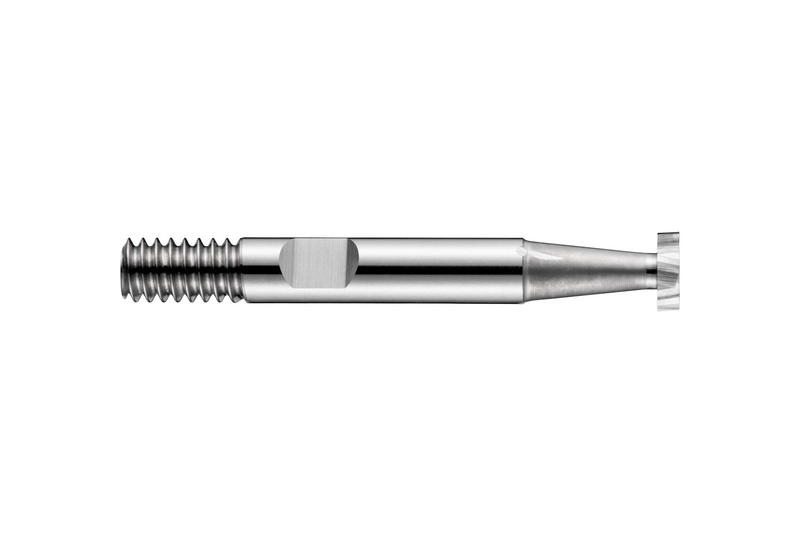

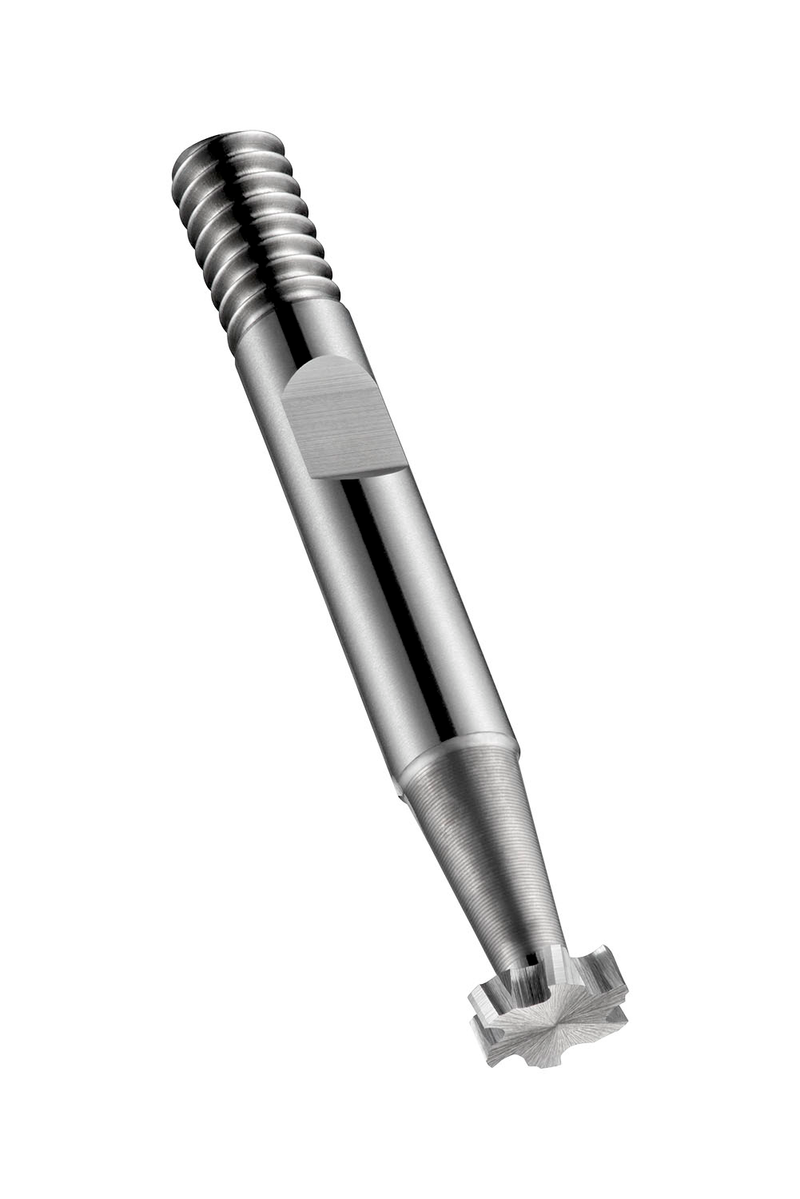

Fraise à rainurer à 12 dents, diamètre de 28,5 mm avec une largeur de coupe de 8 mm et une longueur totale de 63 mm, conforme à la norme DIN 850 avec une queue combinée de 10 mm avec méplat Weldon et filetage, en HSS-E à base de cobalt avec finition brillante, hélice de 10° et angle de dépouille de 10° pour le fraisage de rainures de clavette dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C82228.5X8.0
GradeLumineux
Product Number5986007
Product FamilyC822

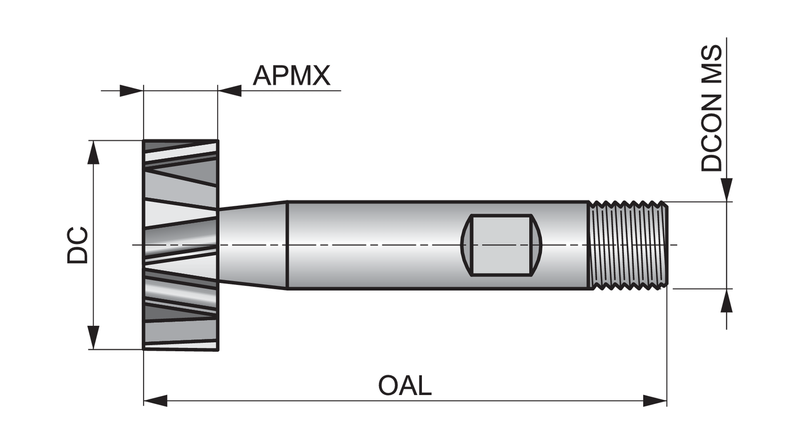

Insert Geometry
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)1.122"
Cutting Diameter — mm (DC)28.5 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)12
Helix Angle (FHA)10.0°
Tool Information
ShankQueue cylindrique DIN 1835 B / D
StandardDIN 850
Reference Numbers
EDP Number74794
EAN7320760074794
File Type Download
C82228,5X8,0 — Line Drawing PDF Download
