C82232,5X10,0
C82232,5X10,0
C82232,5X10,0
C82232,5X10,0

C82232,5X10,0

UGC DOR5986009
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$430.79 CAD - $430.79 CAD
$430.79 CAD
$430.79 CAD - $430.79 CAD
$430.79 CAD

Vendu en lots de : 1

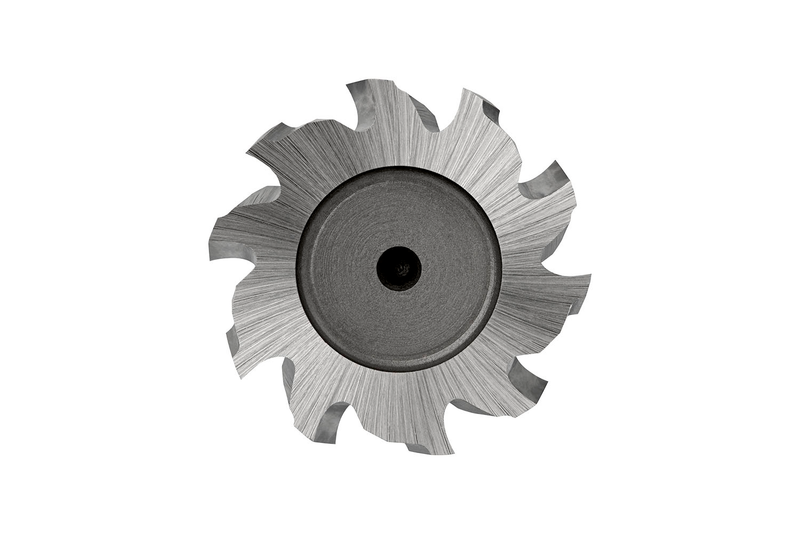

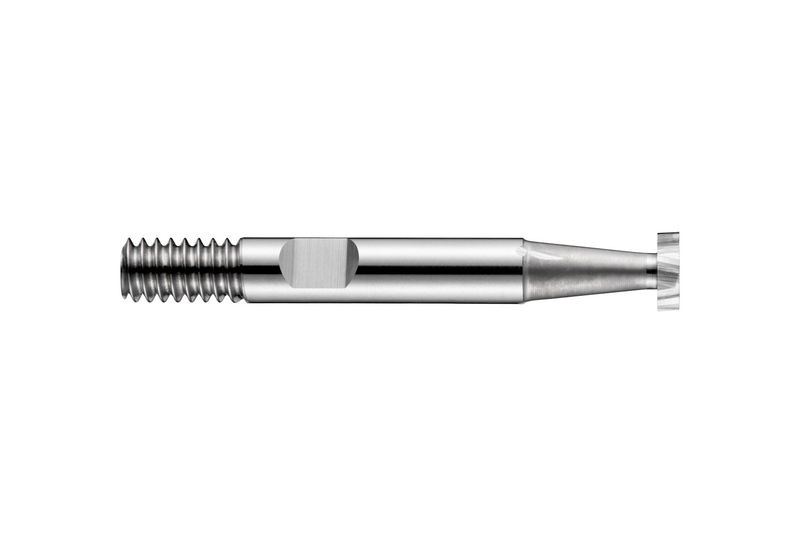

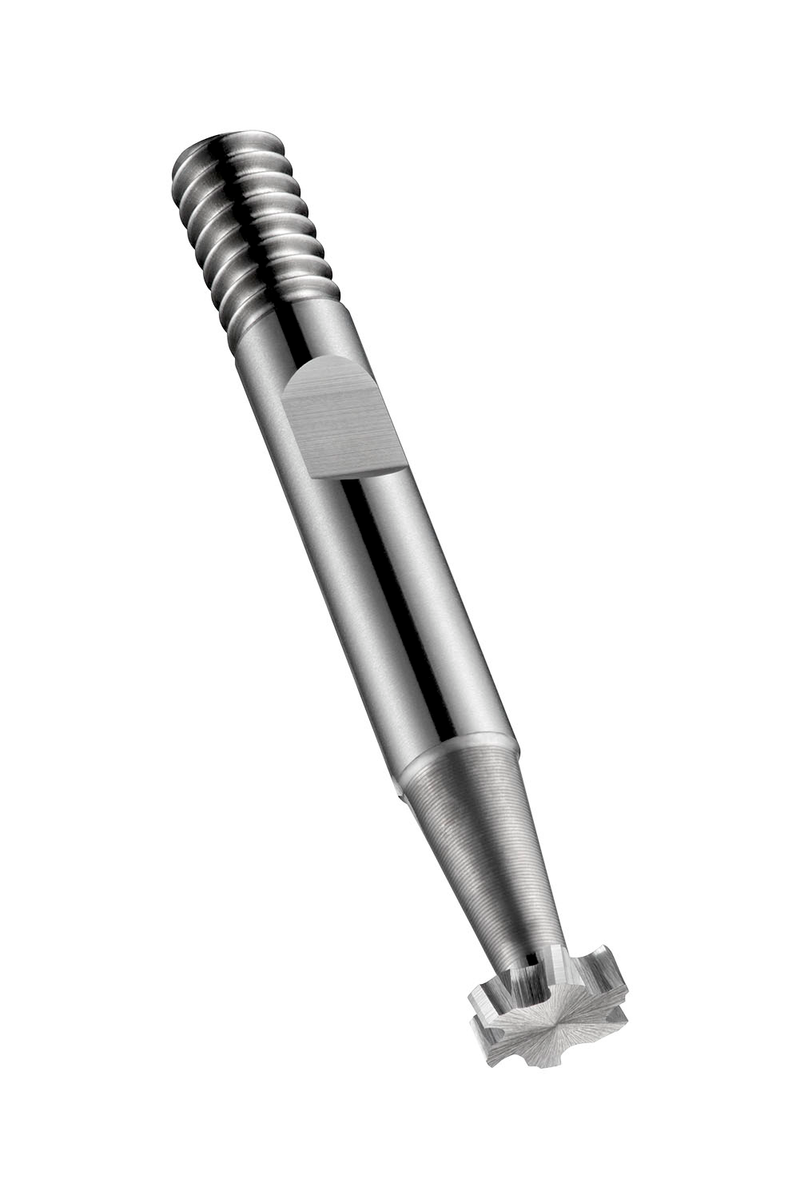

Fraise à rainurer Woodruff 12 dents, diamètre 32,5 mm, largeur de coupe 10 mm et longueur totale 71 mm, conforme à la norme DIN 850 avec une queue combinée de 12 mm avec méplat weldon et filetage, HSS-E à base de cobalt avec finition brillante, hélice de 10° et angle de dépouille de 10° pour le fraisage de rainures de clavette dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C82232.5X10.0
GradeLumineux
Product Number5986009
Product FamilyC822
Insert Geometry
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm

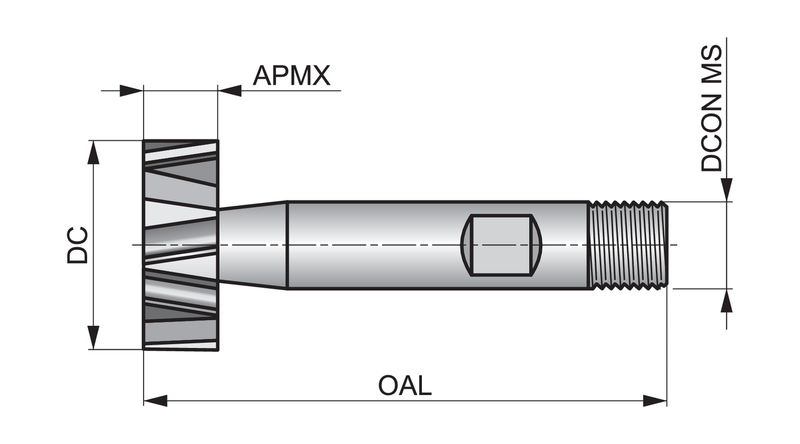

Dimensions
Cutting Diameter — in (DC)1.2795"
Cutting Diameter — mm (DC)32.5 mm
Overall Length — in (OAL)2.7953"
Overall Length — mm (OAL)71.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)12
Helix Angle (FHA)10.0°
Tool Information
ShankQueue cylindrique DIN 1835 B / D
StandardDIN 850
Reference Numbers
EDP Number74800
EAN7320760074800
File Type Download
C82232,5X10,0 — Line Drawing PDF Download
