C82232.5X8.0
C82232.5X8.0
C82232.5X8.0
C82232.5X8.0

C82232.5X8.0

UGC DOR5986012
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$411.23 CAD - $411.23 CAD
$411.23 CAD
$411.23 CAD - $411.23 CAD
$411.23 CAD

Vendu en lots de : 1

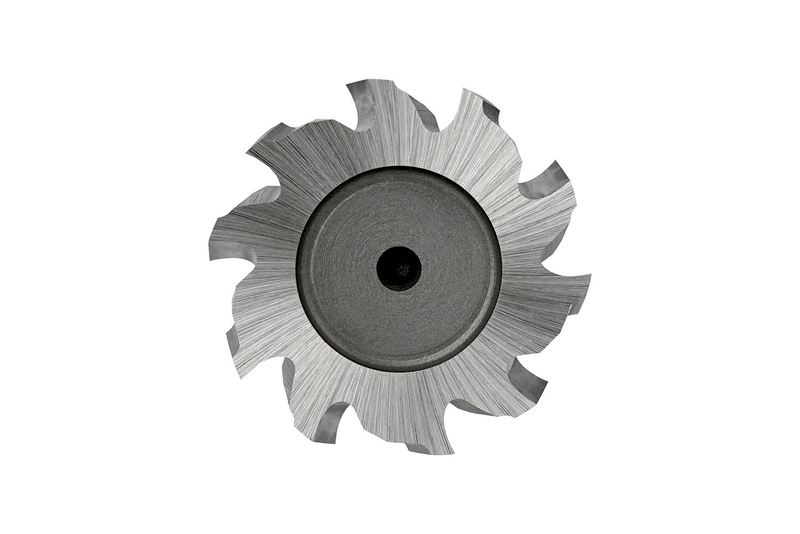

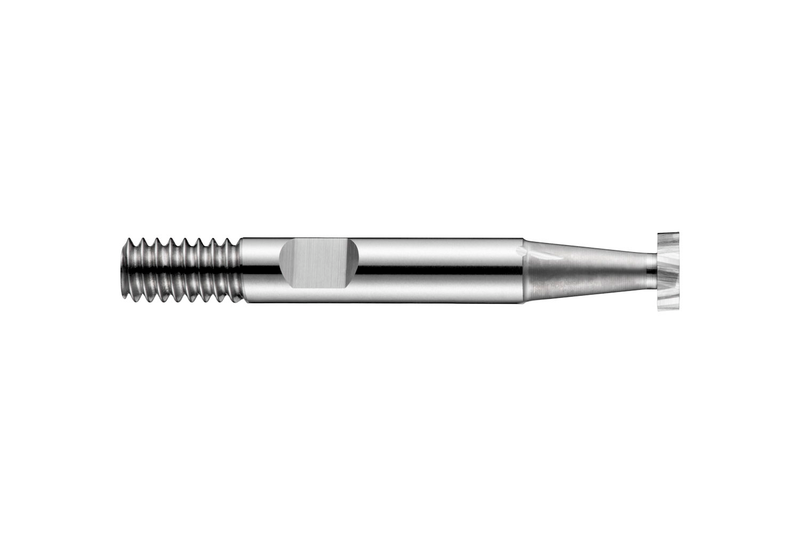

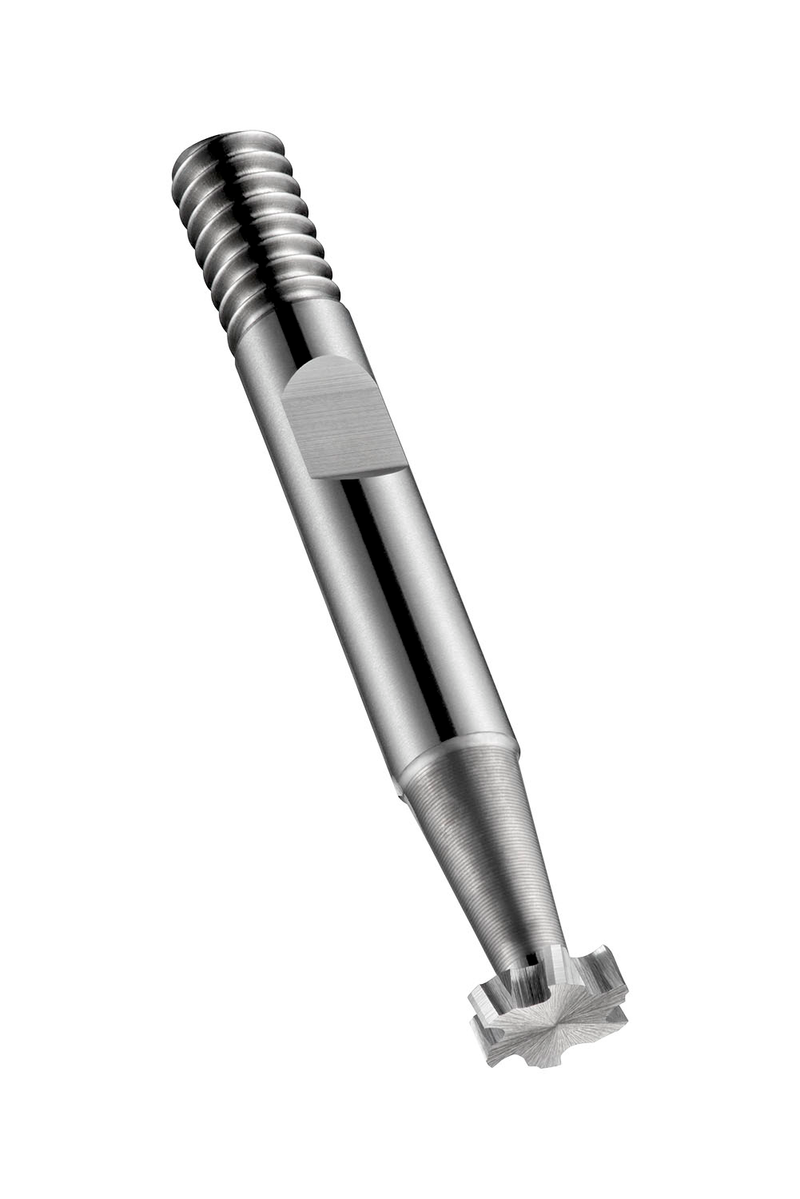

Fraise à clavette Woodruff à 12 dents, diamètre 32,5 mm, largeur de coupe 8 mm et longueur totale 71 mm, selon la norme DIN 850 avec une queue combinée de 12 mm avec méplat Weldon et filetage, HSS-E à base de cobalt avec finition brillante, hélice de 10° et angle de coupe de 10° pour le fraisage de clavettes dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C82232.5X8.0
GradeLumineux
Product Number5986012
Product FamilyC822
Insert Geometry
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm

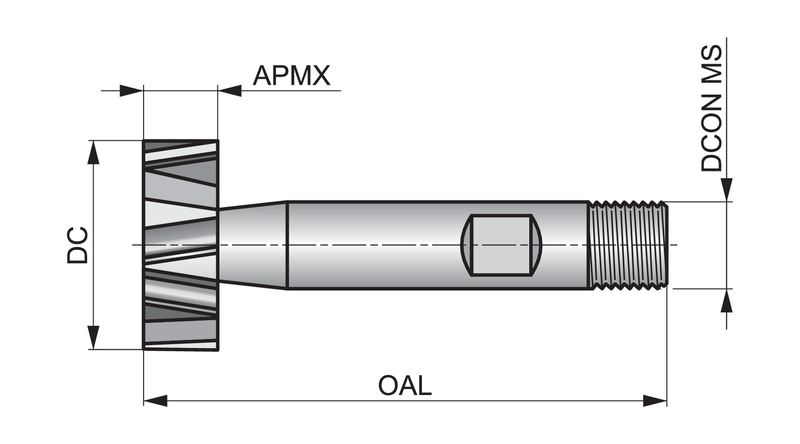

Dimensions
Cutting Diameter — in (DC)1.2795"
Cutting Diameter — mm (DC)32.5 mm
Overall Length — in (OAL)2.7953"
Overall Length — mm (OAL)71.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)12
Helix Angle (FHA)10.0°
Tool Information
ShankQueue cylindrique DIN 1835 B / D
StandardDIN 850
Reference Numbers
EDP Number74817
EAN7320760074817
File Type Download
C82232.5X8.0 — Line Drawing PDF Download
