UGC DOR5986015
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$391.67 CAD - $391.67 CAD
$391.67 CAD
$391.67 CAD - $391.67 CAD
$391.67 CAD

Vendu en lots de : 1

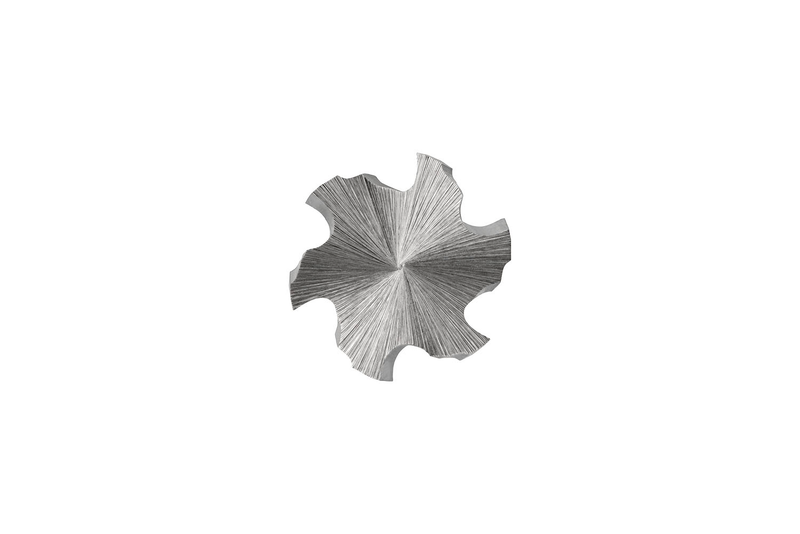

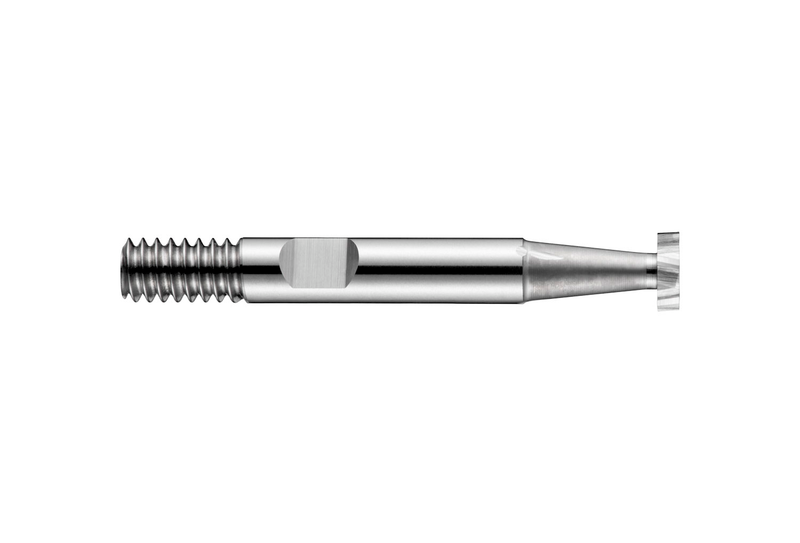

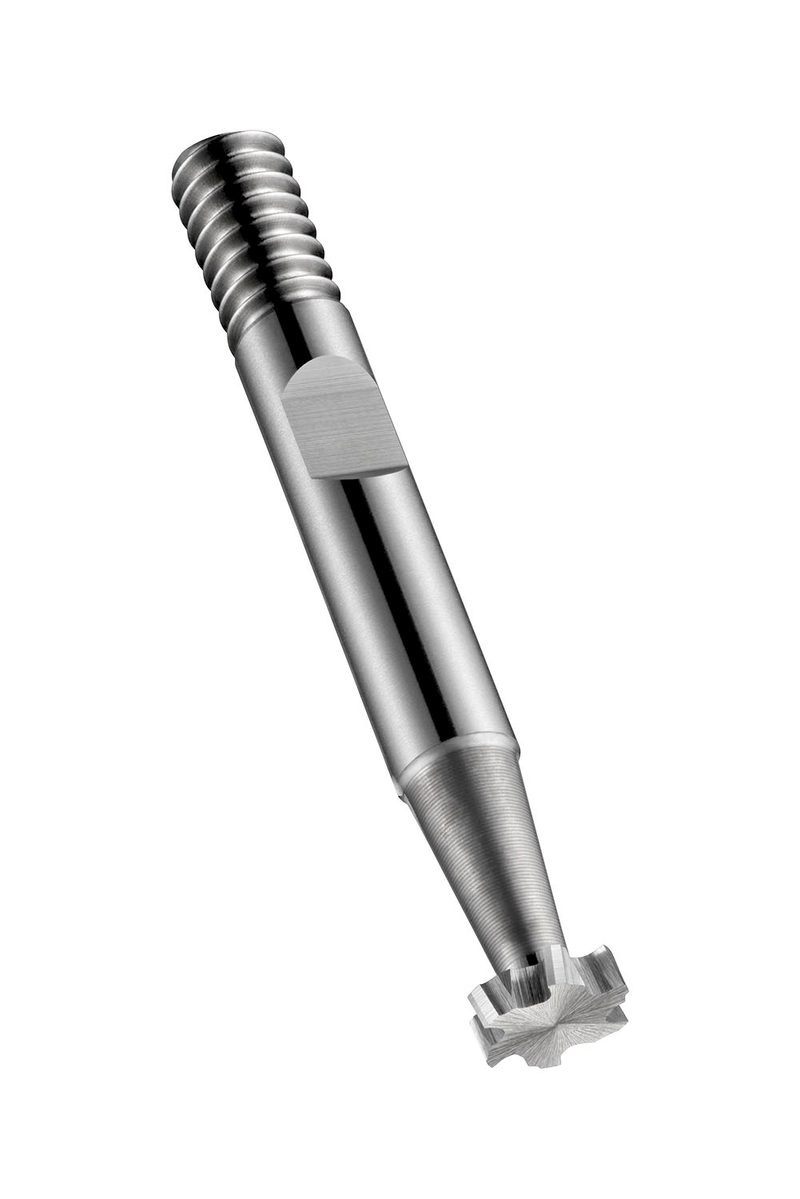

Fraise à rainurer Woodruff 6 dents, diamètre 4,5 mm avec largeur de coupe de 1 mm et longueur totale de 50 mm, selon la norme DIN 850 avec une queue combinée de 6 mm avec méplat Weldon et filetage, en HSS-E à base de cobalt avec finition brillante, hélice de 10° et angle de dépouille de 10° pour le fraisage de rainures de clavette dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C8224.5X1.0
GradeLumineux
Product Number5986015
Product FamilyC822

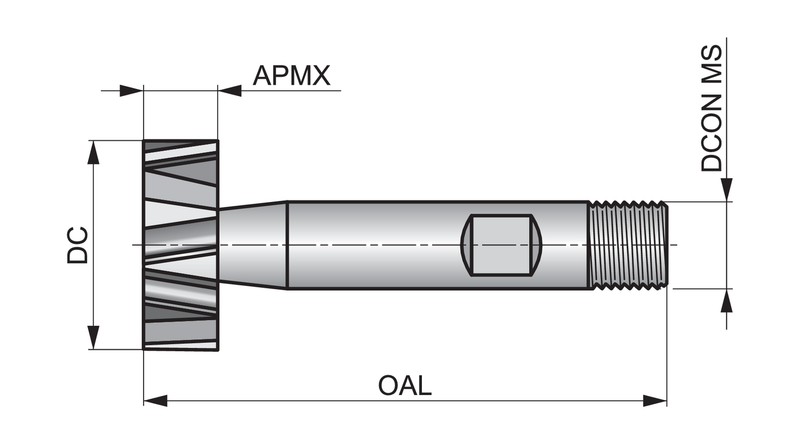

Insert Geometry
Depth of Cut Max — in (APMX)0.0394"
Depth of Cut Max — mm (APMX)1.0 mm
Dimensions
Cutting Diameter — in (DC)0.1772"
Cutting Diameter — mm (DC)4.5 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)10.0°
Tool Information
ShankQueue cylindrique DIN 1835 B / D
StandardDIN 850
Reference Numbers
EDP Number74824
EAN7320760074824
File Type Download
C8224.5X1.0 — Line Drawing PDF Download
