UGC DOR5986018
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$464.09 CAD - $464.09 CAD
$464.09 CAD
$464.09 CAD - $464.09 CAD
$464.09 CAD

Vendu en lots de : 1

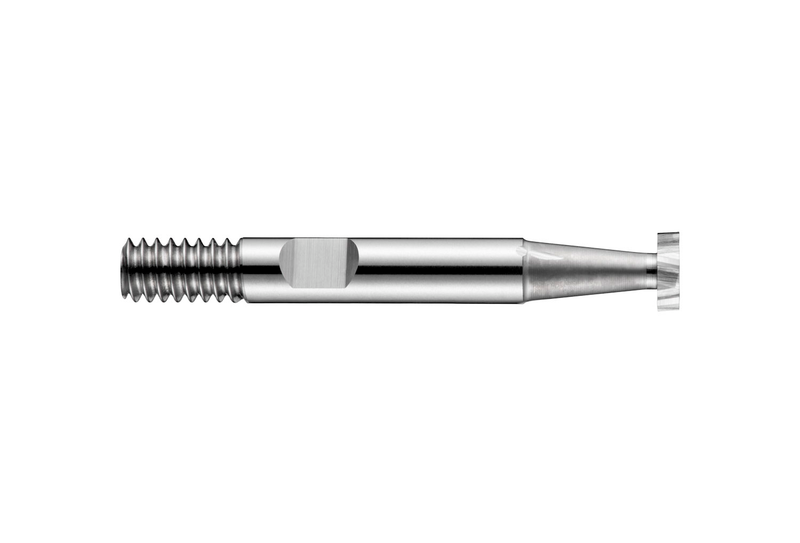

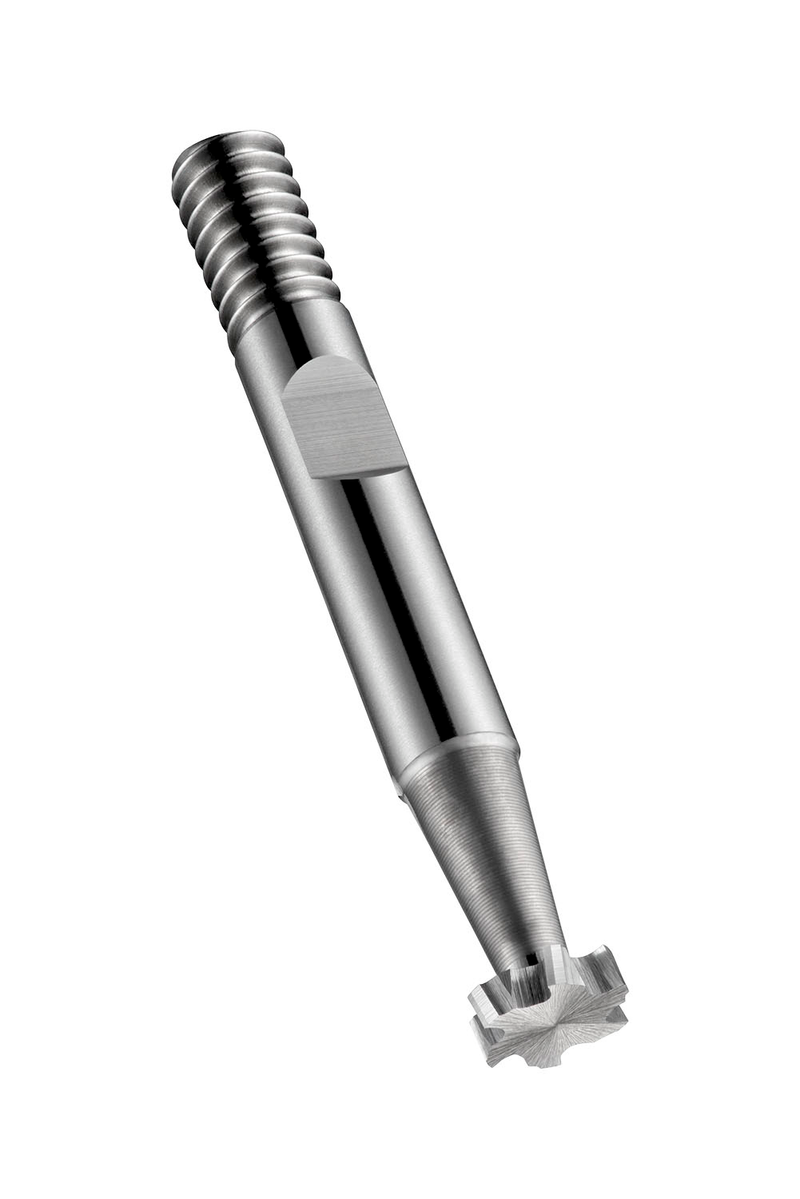

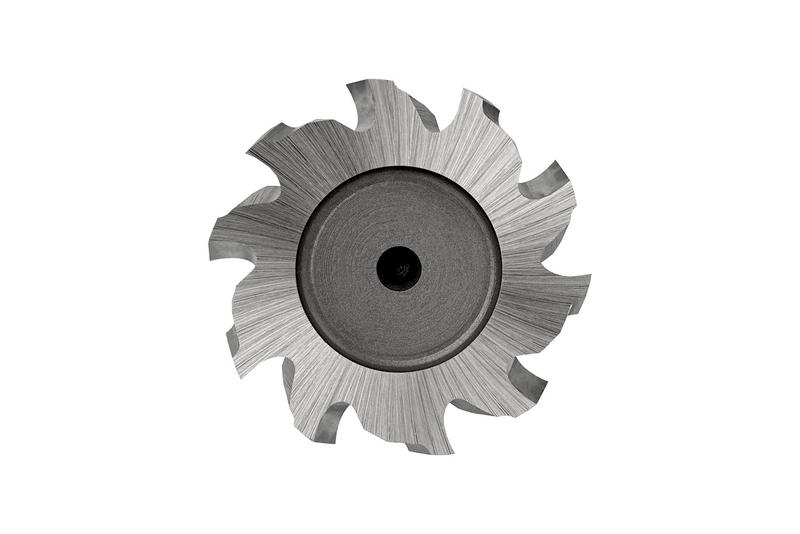

Fraise à Woodruff à 12 dents, diamètre 45,5 mm avec largeur de coupe de 10 mm et longueur totale de 71 mm, selon la norme DIN 850 avec une queue combinée de 12 mm avec méplat et filetage Weldon, en HSS-E à base de cobalt avec finition brillante, hélice de 10° et angle de dépouille de 10° pour le fraisage de clavettes dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C82245.5X10.0
GradeLumineux
Product Number5986018
Product FamilyC822
Insert Geometry
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm

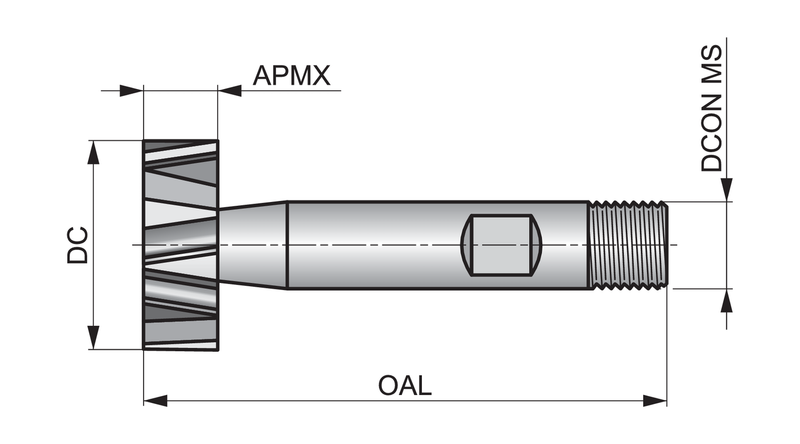

Dimensions
Cutting Diameter — in (DC)1.7913"
Cutting Diameter — mm (DC)45.5 mm
Overall Length — in (OAL)2.7953"
Overall Length — mm (OAL)71.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)12
Helix Angle (FHA)10.0°
Tool Information
ShankQueue cylindrique DIN 1835 B / D
StandardDIN 850
Reference Numbers
EDP Number74831
EAN7320760074831
File Type Download
C82245.5X10.0 — Line Drawing PDF Download
