C8227.5X1.5
C8227.5X1.5
C8227.5X1.5
C8227.5X1.5

C8227.5X1.5

UGC DOR5986019
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$332.47 CAD - $332.47 CAD
$332.47 CAD
$332.47 CAD - $332.47 CAD
$332.47 CAD

Vendu en lots de : 1

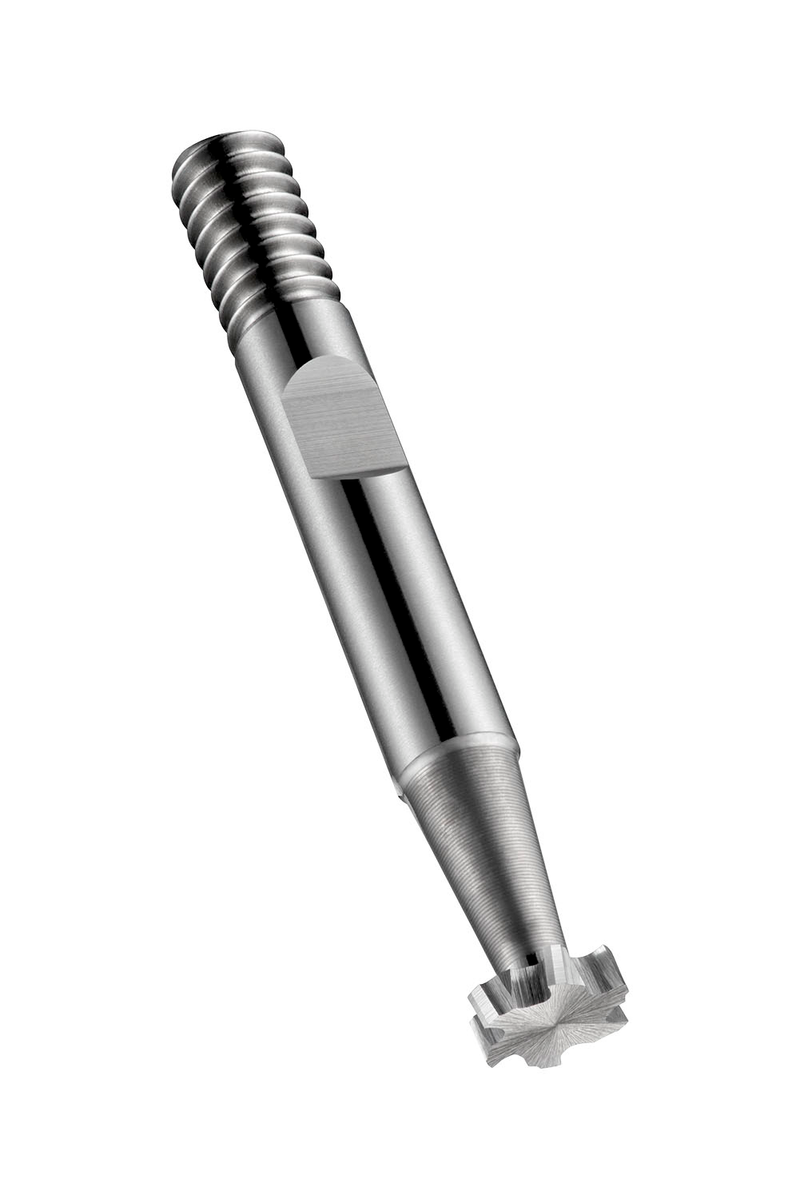

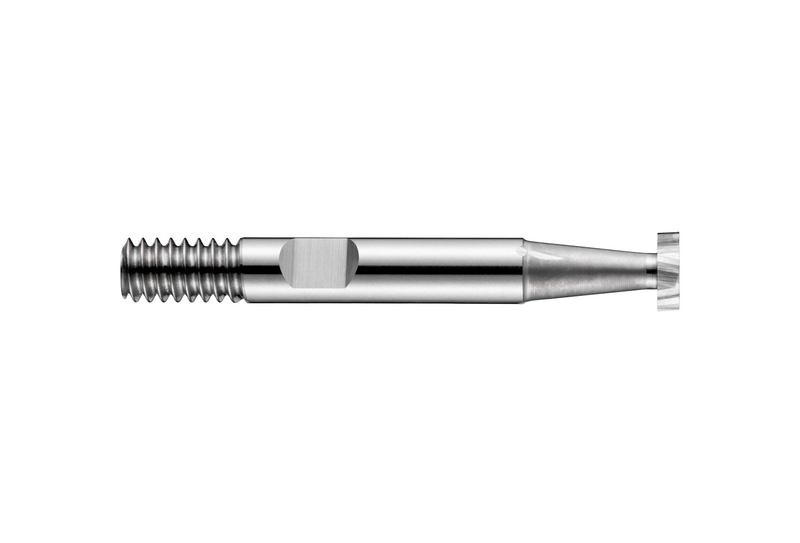

Fraise à rainurer Woodruff à 6 dents, diamètre 7,5 mm, largeur de coupe 1,5 mm et longueur totale 50 mm, conforme à la norme DIN 850, avec queue combinée de 6 mm avec méplat et filetage Weldon, HSS-E à base de cobalt avec finition brillante, hélice de 10° et angle de dépouille de 10° pour le fraisage de rainures de clavette dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C8227.5X1.5
GradeLumineux
Product Number5986019
Product FamilyC822

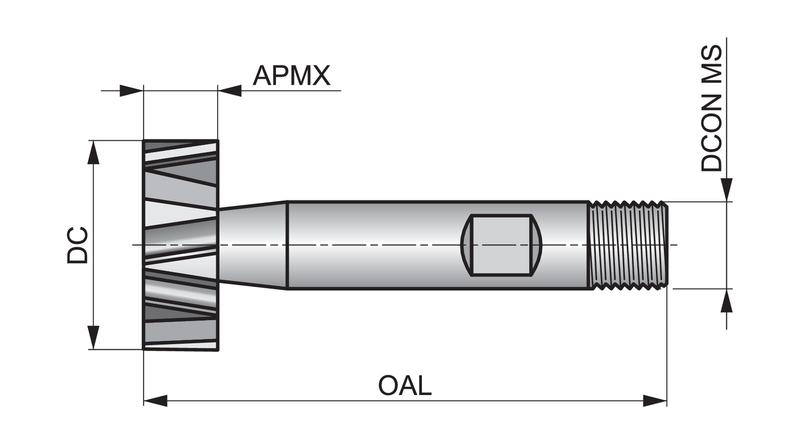

Insert Geometry
Depth of Cut Max — in (APMX)0.0591"
Depth of Cut Max — mm (APMX)1.5 mm
Dimensions
Cutting Diameter — in (DC)0.2953"
Cutting Diameter — mm (DC)7.5 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm

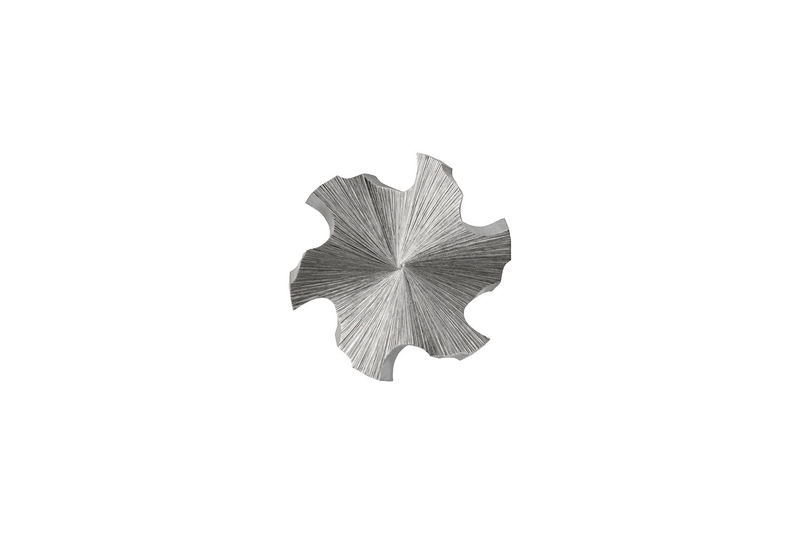

Number of Flutes (NOF)6
Helix Angle (FHA)10.0°
Tool Information
ShankQueue cylindrique DIN 1835 B / D
StandardDIN 850
Reference Numbers
EDP Number74848
EAN7320760074848
File Type Download
C8227.5X1.5 — Line Drawing PDF Download
