D74580.0X3.0
D74580.0X3.0
D74580.0X3.0

D74580.0X3.0

UGC DOR5986024
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$90.29 CAD - $90.29 CAD
$90.29 CAD
$90.29 CAD - $90.29 CAD
$90.29 CAD

Vendu en lots de : 1

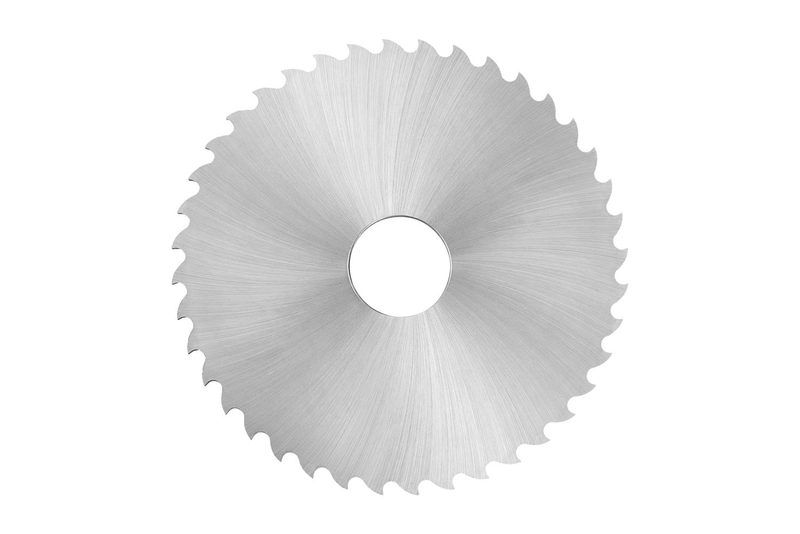

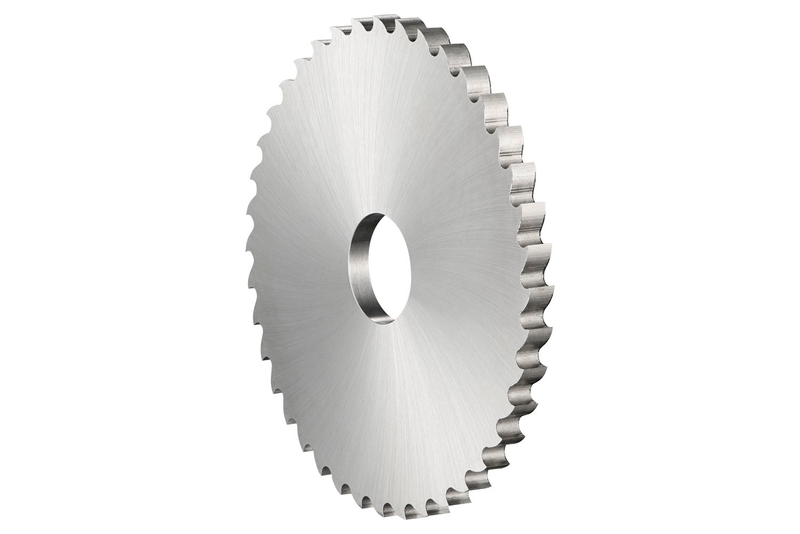

Fraise-scie à refendre en métal à pas gros et 40 dents, diamètre 80 mm avec une largeur de coupe de 3 mm, conforme à la norme DIN 1838 avec un alésage de 22 mm, HSS avec finition brillante et angle de coupe de 15° pour tronçonnage, rainurage peu profond et rainurage profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D74580.0X3.0
GradeLumineux
Product Number5986024
Product FamilyD745
Dimensions
Cutting Diameter — in (DC)3.1496"
Cutting Diameter — mm (DC)80.0 mm
Connection Dia. — in (DCON)0.8661"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)40
Tool Information
StandardDIN 1838
Reference Numbers
EDP Number283851
EAN7320760283851
File Type Download

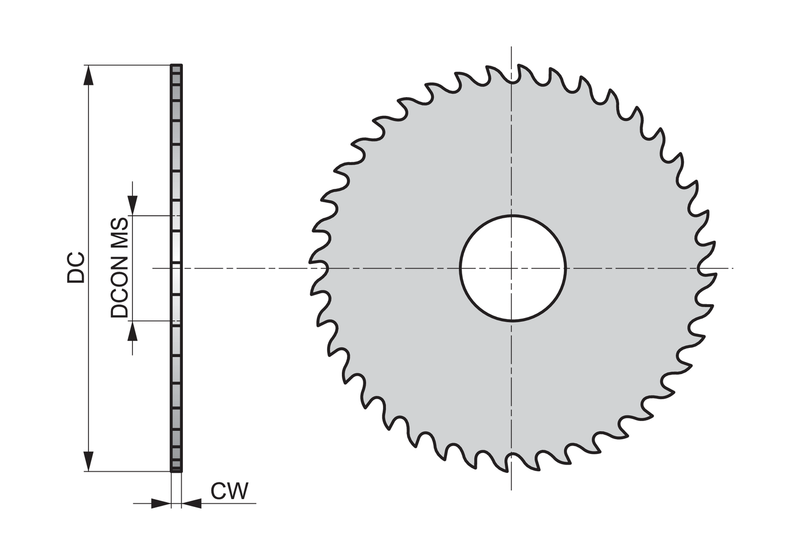

D74580.0X3.0 — Line Drawing PDF Download
