B1005.5

UGC DOR5986257
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
Prix d'origine $114.19 CAD - Prix d'origine $114.19 CAD
Prix d'origine
$114.19 CAD
$114.19 CAD - $114.19 CAD
Prix actuel $114.19 CAD

Vendu en lots de : 1

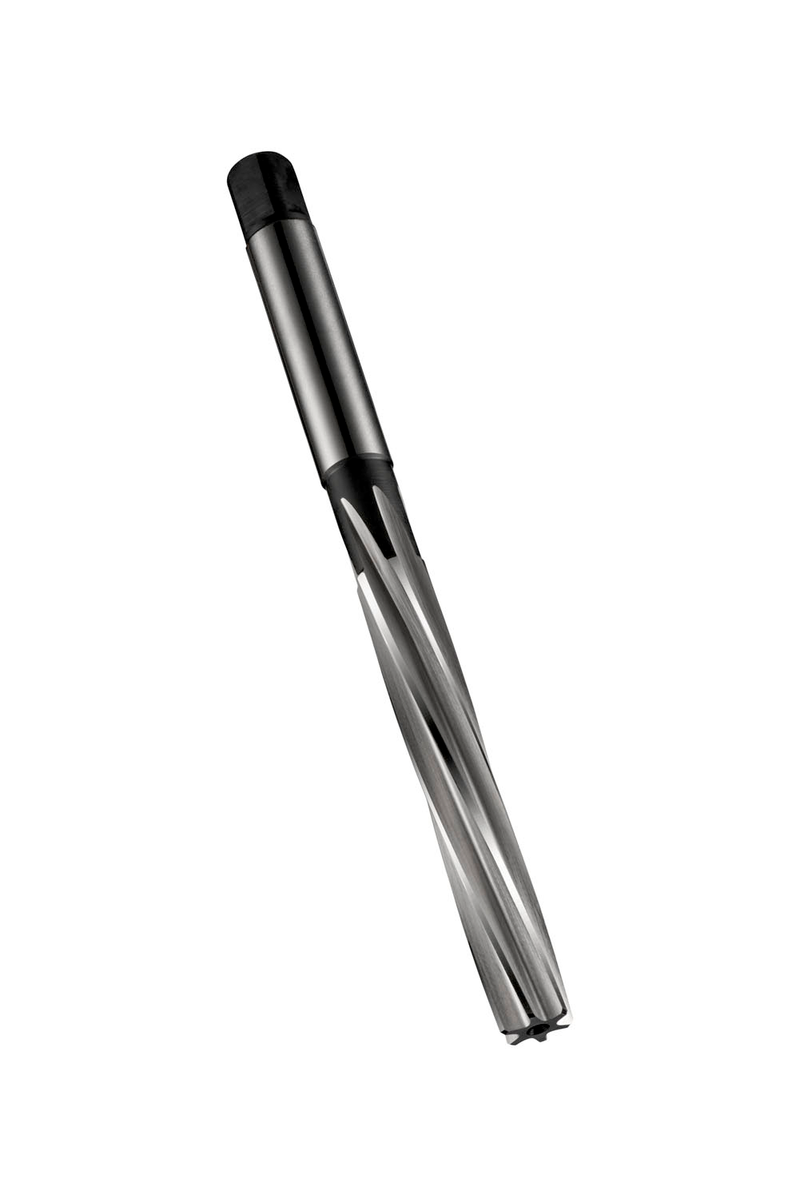

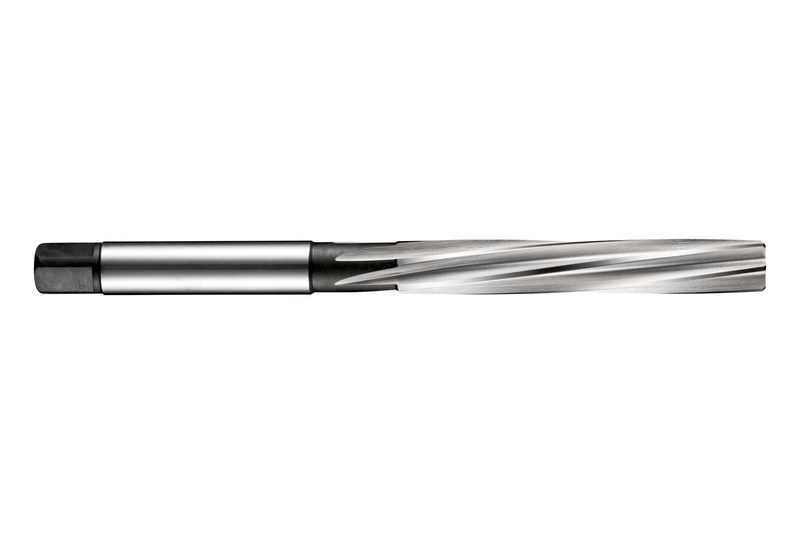

Alésoir à main avec goujures hélicoïdales lentes à gauche et entraînement carré, diamètre de 5,50 mm avec une longueur totale de 93 mm, une longueur de goujure de 47 mm et une amorce conique de 12 mm de long, conforme à la norme DIN 206 pour l'alésage de trous précis à la tolérance H7, en acier rapide avec finition brillante-trempée à la vapeur pour l'usinage des aciers de décolletage et au carbone ordinaire, des fontes grises et ductiles, de l'aluminium corroyé et moulé et du cuivre ou de ses alliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B1005.5
GradeLumineux/ST
Product Number5986257
Product FamilyB100
Dimensions
Cutting Diameter — in (DC)0.2165"
Cutting Diameter — mm (DC)5.5 mm
Overall Length — in (OAL)3.6614"
Overall Length — mm (OAL)93.0 mm
Flute Length — mm (LCF)47.0 mm
Connection Dia. — in (DCON)0.2165"
Connection Dia. — mm (DCON)5.5 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 206
Reference Numbers
EDP Number48894
EAN7320760048894
File Type Download

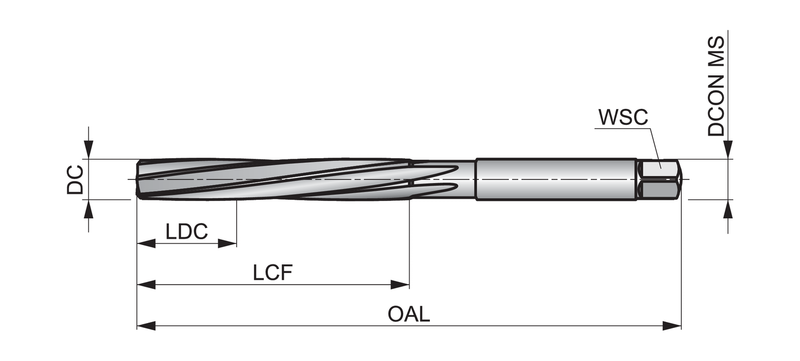

B1005.5 — Line Drawing PDF Download
