B10014.5

UGC DOR5986278
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
Prix d'origine $120.11 CAD - Prix d'origine $120.11 CAD
Prix d'origine
$120.11 CAD
$120.11 CAD - $120.11 CAD
Prix actuel $120.11 CAD

Vendu en lots de : 1

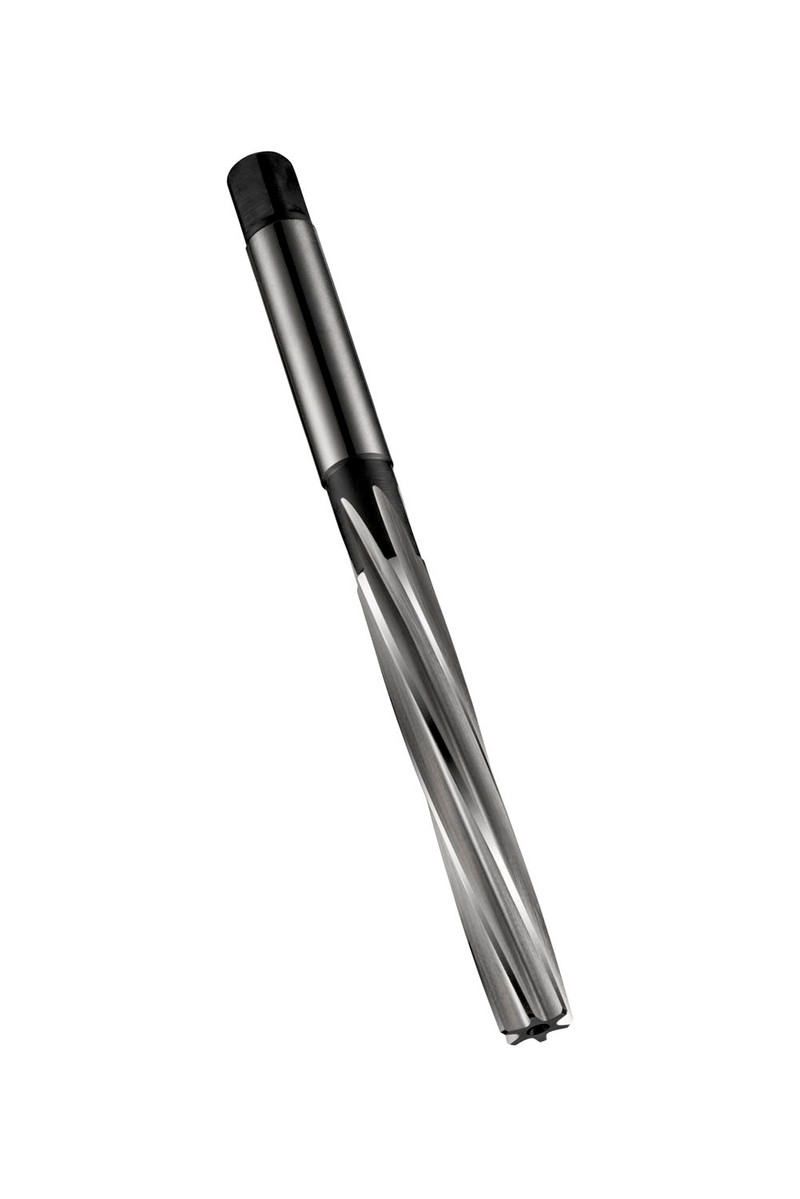

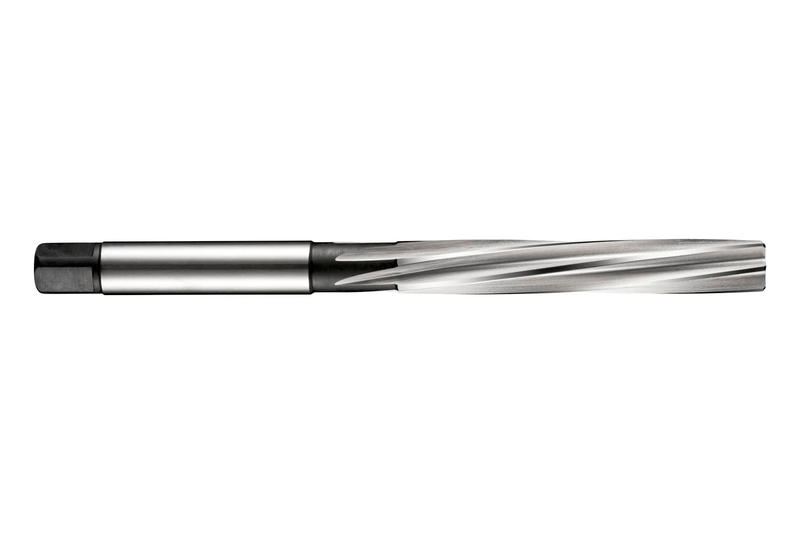

Alésoir à main avec goujures hélicoïdales lentes à gauche et entraînement carré, diamètre 14,50 mm avec une longueur totale de 163 mm, une longueur de goujure de 81 mm et un cône d'entrée de 20 mm de long, conforme à la norme DIN 206 pour l'usinage de trous précis à la tolérance H7, en acier rapide HSS avec finition brillante trempée à la vapeur pour l'usinage des aciers de décolletage et au carbone, de la fonte grise et ductile, de l'aluminium corroyé et moulé, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B10014.5
GradeLumineux/Court-Terme
Product Number5986278
Product FamilyB100

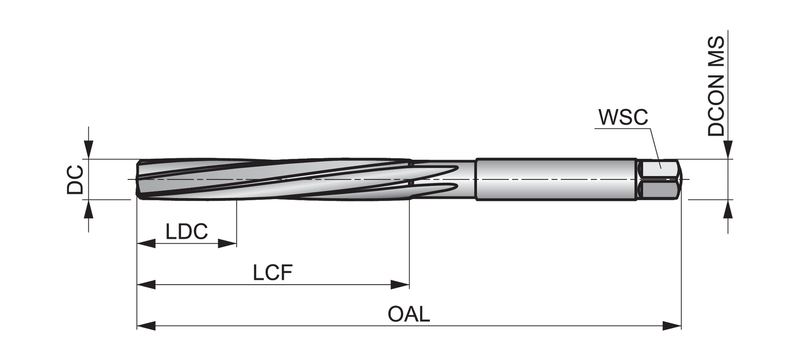

Dimensions
Cutting Diameter — in (DC)0.5709"
Cutting Diameter — mm (DC)14.5 mm
Overall Length — in (OAL)6.4173"
Overall Length — mm (OAL)163.0 mm
Flute Length — mm (LCF)81.0 mm
Connection Dia. — in (DCON)0.5709"
Connection Dia. — mm (DCON)14.5 mm
Number of Flutes (NOF)8
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
StandardDIN 206
Reference Numbers
EDP Number180044
EAN7320760180044
File Type Download
B10014.5 — Line Drawing PDF Download
