B1008.5

UGC DOR5986307
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
Prix d'origine $142.84 CAD - Prix d'origine $142.84 CAD
Prix d'origine
$142.84 CAD
$142.84 CAD - $142.84 CAD
Prix actuel $142.84 CAD

Vendu en lots de : 1

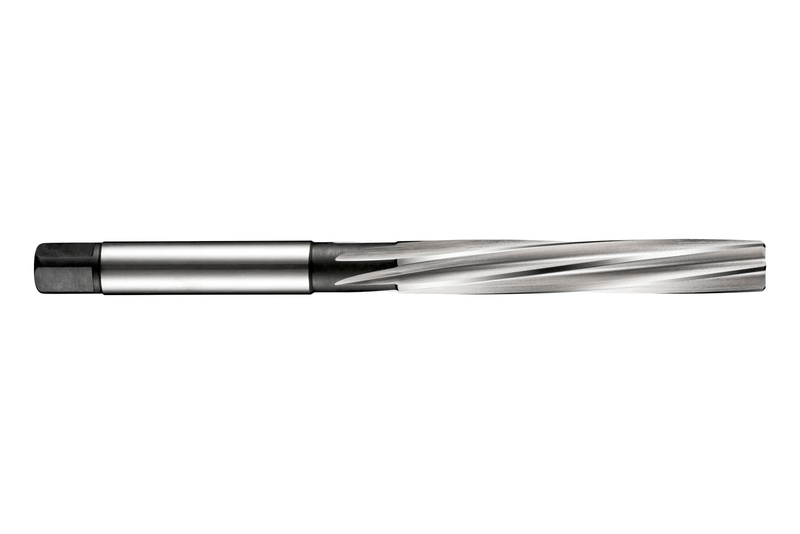

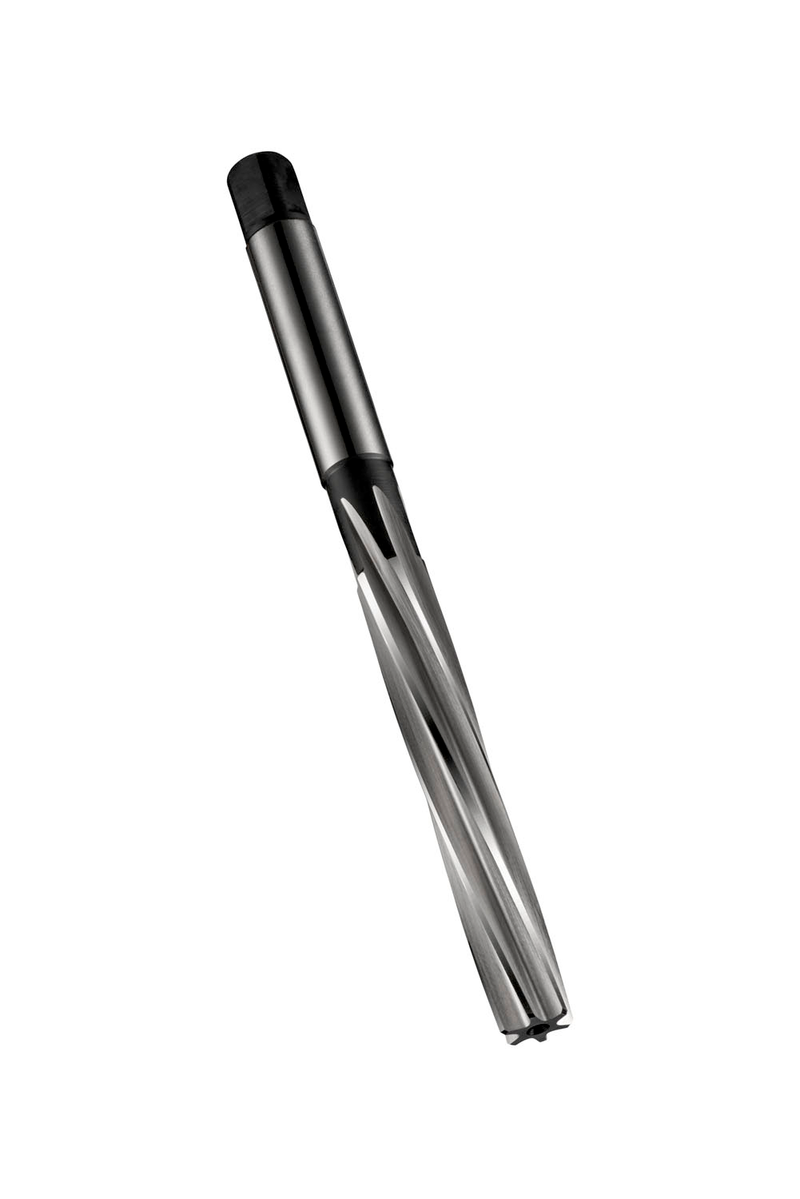

Alésoir à main avec goujures hélicoïdales lentes à gauche et entraînement carré, diamètre 8,50 mm avec une longueur totale de 115 mm, une longueur de goujure de 58 mm et un cône d'attaque de 15 mm, conforme à la norme DIN 206 pour l'alésage de trous précis à la tolérance H7, HSS avec finition brillante-trempée à la vapeur pour l'usinage de l'acier de décolletage et de l'acier au carbone non allié, de la fonte grise et ductile, de l'aluminium et du cuivre ou des alliages de cuivre corroyés et coulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B1008.5
GradeLumineux/ST
Product Number5986307
Product FamilyB100

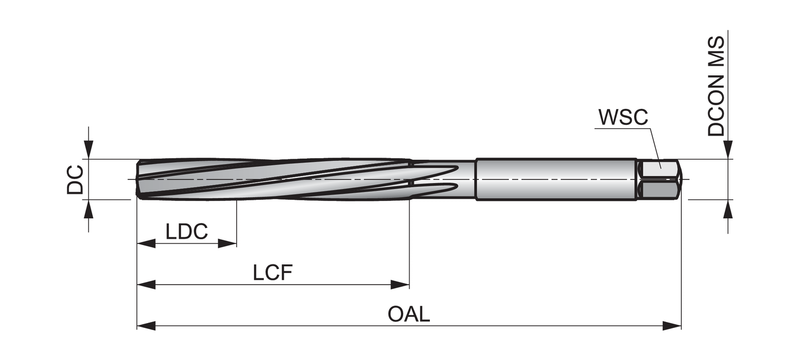

Dimensions
Cutting Diameter — in (DC)0.3346"
Cutting Diameter — mm (DC)8.5 mm
Overall Length — in (OAL)4.5276"
Overall Length — mm (OAL)115.0 mm
Flute Length — mm (LCF)58.0 mm
Connection Dia. — in (DCON)0.3346"
Connection Dia. — mm (DCON)8.5 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardDIN 206
Reference Numbers
EDP Number140338
EAN7320760140338
File Type Download
B1008.5 — Line Drawing PDF Download
