B1011.1/4
B1011.1/4
B1011.1/4
B1011.1/4

B1011.1/4

UGC DOR5986336
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$360.33 CAD - $360.33 CAD
$360.33 CAD
$360.33 CAD - $360.33 CAD
$360.33 CAD

Vendu en lots de : 1

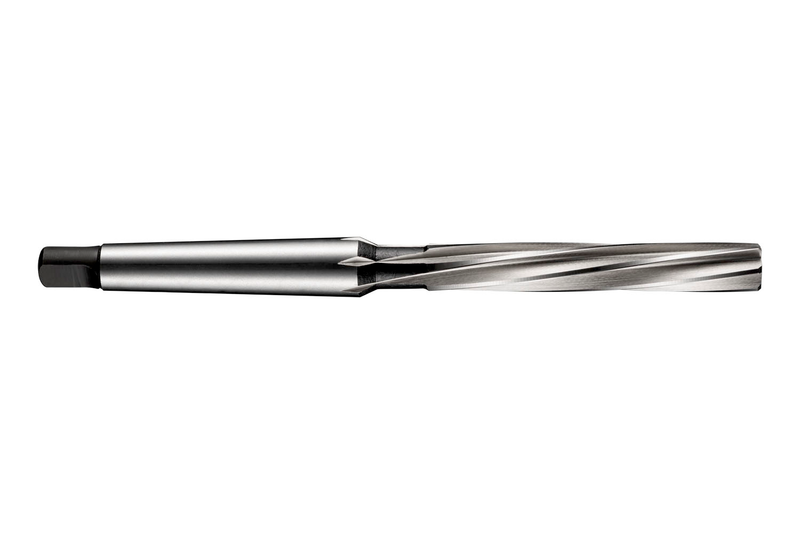

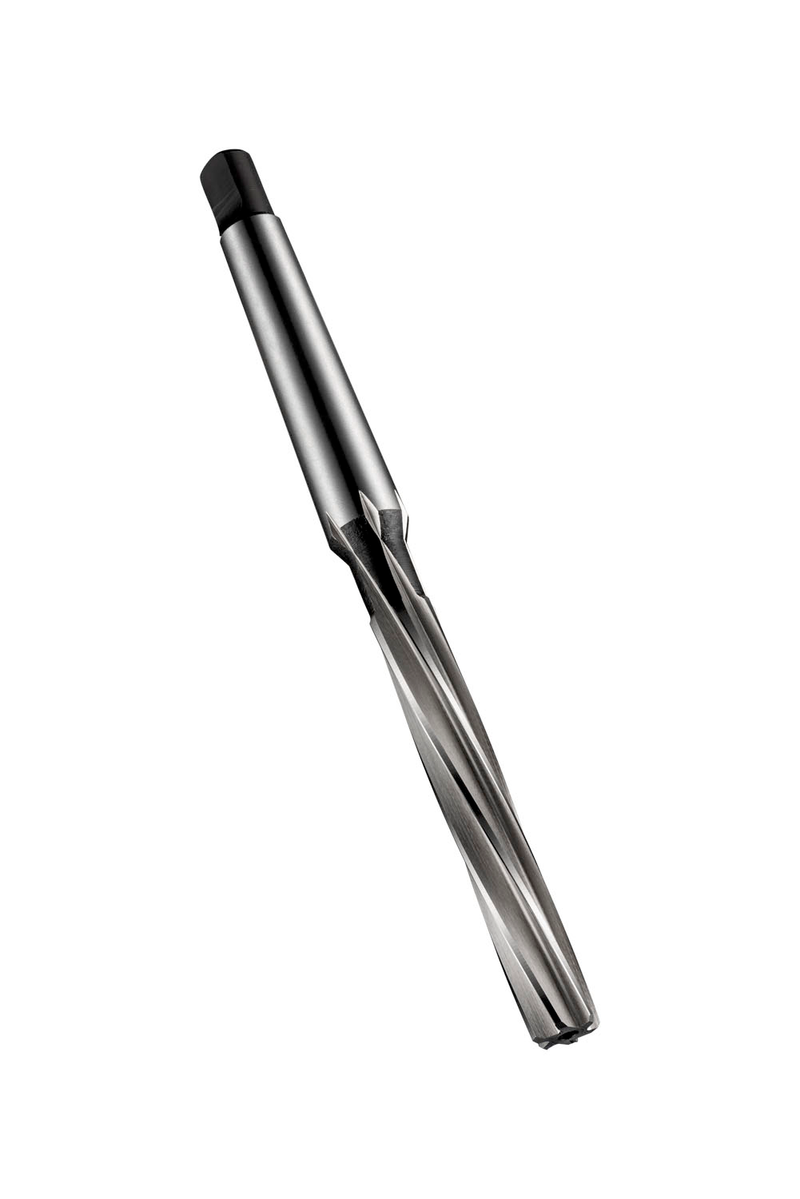

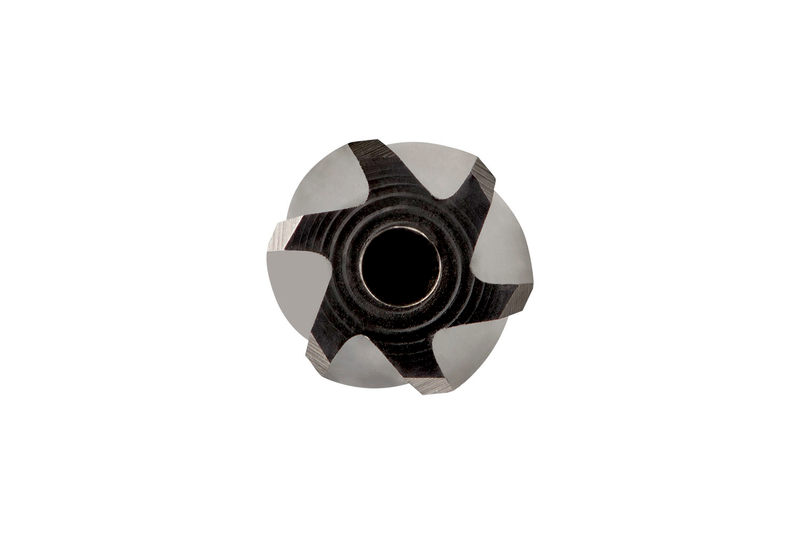

Alésoir machine à spirale lente à gauche et queue cône Morse, diamètre 31,75 mm (1,1/4") avec une longueur totale de 260 mm et une longueur de coupe de 133 mm, selon la norme BS 328 pour l'alésage de trous précis à la tolérance H7, HSS-E à base de cobalt avec finition brillante étuvée pour l'usinage des aciers de décolletage, aciers au carbone et aciers alliés, fontes grises et malléables, aluminium corroyé et moulé et cuivre ou alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B1011.1/4
GradeBrillant/ST
Product Number5986336
Product FamilyB101
Dimensions
Cutting Diameter — in (DC)1.25"
Cutting Diameter — mm (DC)31.75 mm
Cutting Diameter — Fractional1,1/4
Overall Length — in (OAL)10.2362"
Overall Length — mm (OAL)260.0 mm
Flute Length — mm (LCF)133.0 mm
Number of Flutes (NOF)10
Tool Information
ShankQueue conique Morse
Direction of ToolD'accord
StandardNF 328
Reference Numbers
EDP Number181461
EAN7320760181461
File Type Download

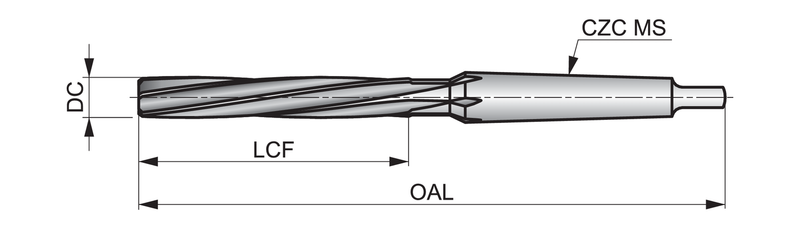

B1011.1/4 — Line Drawing PDF Download
