B10024.0

UGC DOR5986349
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
Prix d'origine $324.26 CAD - Prix d'origine $324.26 CAD
Prix d'origine
$324.26 CAD
$324.26 CAD - $324.26 CAD
Prix actuel $324.26 CAD

Vendu en lots de : 1

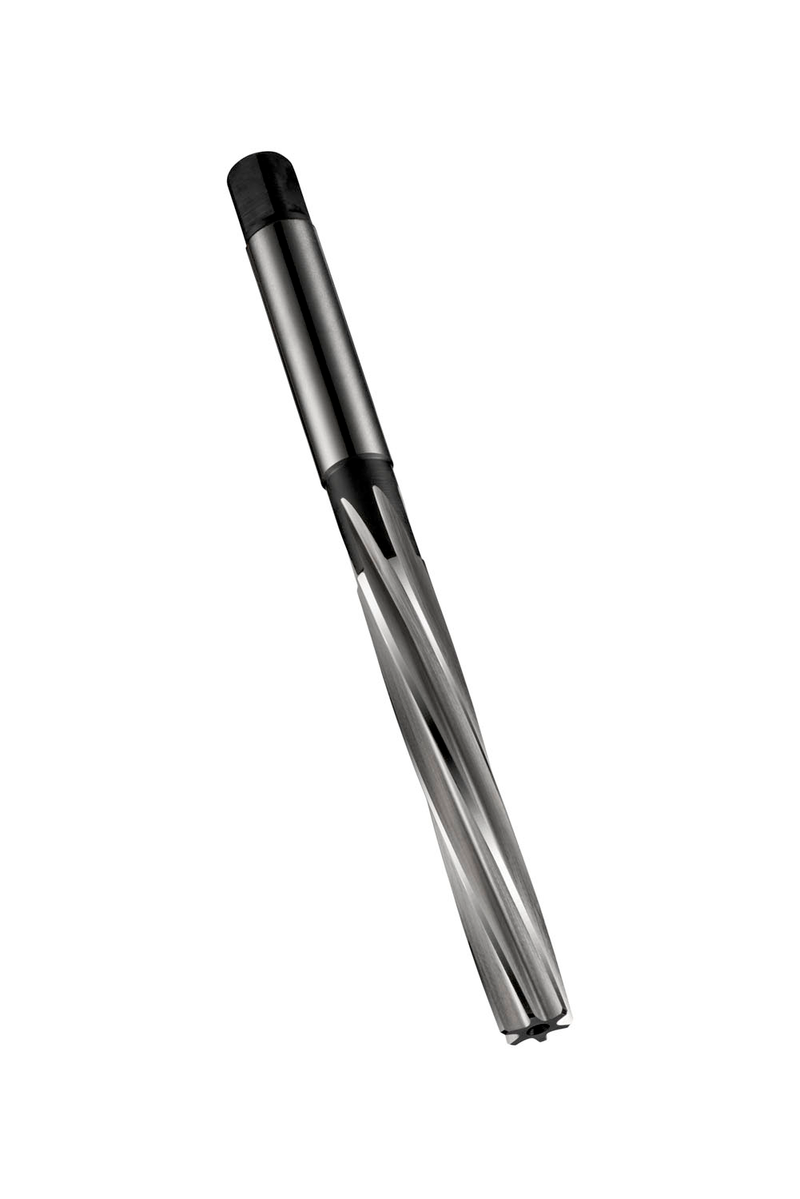

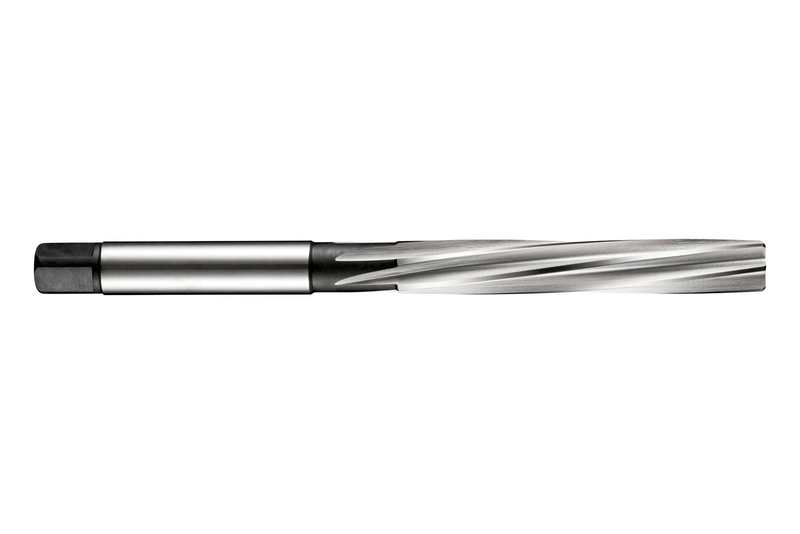

Alésoir à main avec goujures hélicoïdales lentes à gauche et entraînement carré, diamètre 24,00 mm avec une longueur totale de 231 mm, une longueur de goujure de 115 mm et un cône d'entrée de 29 mm, conforme à la norme DIN 206 pour l'alésage de trous précis à la tolérance H7, en HSS avec finition brillante trempée à la vapeur pour l'usinage de l'acier de décolletage et de l'acier au carbone non allié, de la fonte grise et ductile, de l'aluminium forgé et moulé et du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B10024.0
GradeLumineux/ST
Product Number5986349
Product FamilyB100

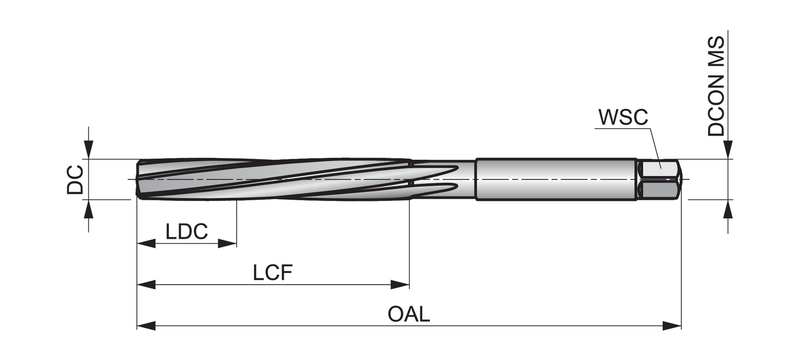

Dimensions
Cutting Diameter — in (DC)0.9449"
Cutting Diameter — mm (DC)24.0 mm
Overall Length — in (OAL)9.0945"
Overall Length — mm (OAL)231.0 mm
Flute Length — mm (LCF)115.0 mm
Connection Dia. — in (DCON)0.9449"
Connection Dia. — mm (DCON)24.0 mm
Number of Flutes (NOF)8
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardDIN 206
Reference Numbers
EDP Number48672
EAN7320760048672
File Type Download
B10024.0 — Line Drawing PDF Download
