B9011.5
B9011.5
B9011.5

B9011.5

UGC DOR5986427
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$78.10 CAD - $78.10 CAD
$78.10 CAD
$78.10 CAD - $78.10 CAD
$78.10 CAD

Vendu en lots de : 1

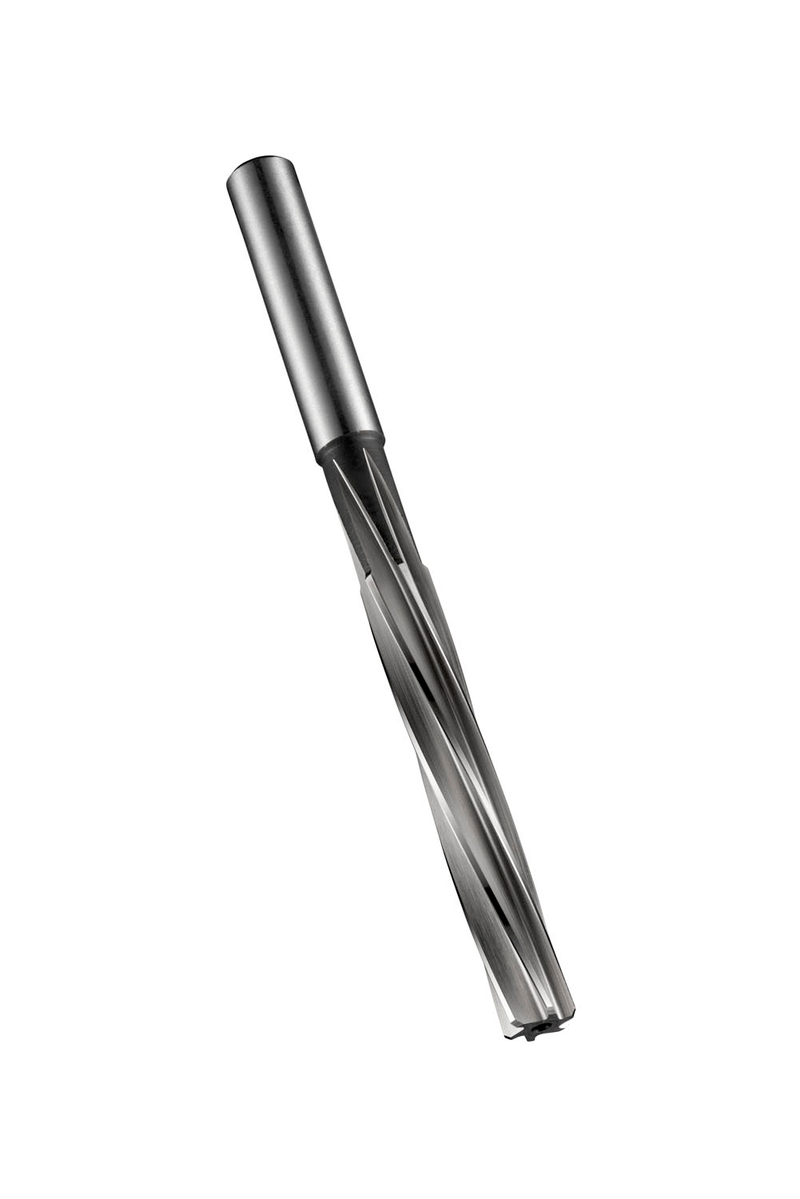

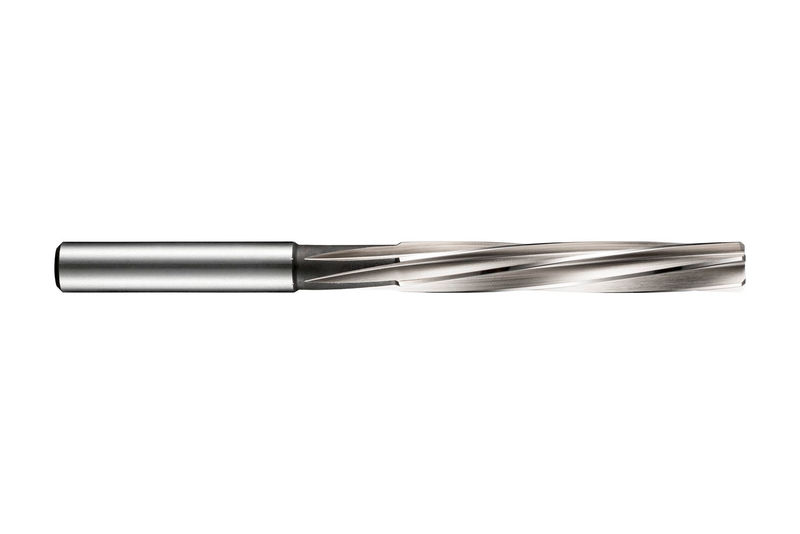

Alésoir machine à spirale lente à gauche et queue cylindrique, diamètre 1,50 mm, longueur totale 44 mm et longueur de coupe 21 mm, selon la norme BS 328 pour l'alésage de trous précis à la tolérance H7, en HSS-E à base de cobalt avec finition brillante trempée à la vapeur pour l'usinage des aciers de décolletage, aciers au carbone non alliés et alliés, fontes grises et malléables, aluminium corroyé et moulé, cuivre ou alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B9011.5
GradeLumineux/ST
Product Number5986427
Product FamilyB901
Dimensions
Cutting Diameter — in (DC)0.0591"
Cutting Diameter — mm (DC)1.5 mm
Overall Length — in (OAL)1.7323"
Overall Length — mm (OAL)44.0 mm
Flute Length — mm (LCF)21.0 mm
Connection Dia. — in (DCON)0.0591"
Connection Dia. — mm (DCON)1.5 mm
Number of Flutes (NOF)4
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number180808
EAN7320760180808
File Type Download
B9011.5 — Line Drawing PDF Download
