B1221/2
B1221/2
B1221/2

B1221/2

UGC DOR5986446
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$121.60 CAD - $121.60 CAD
$121.60 CAD
$121.60 CAD - $121.60 CAD
$121.60 CAD

Vendu en lots de : 1

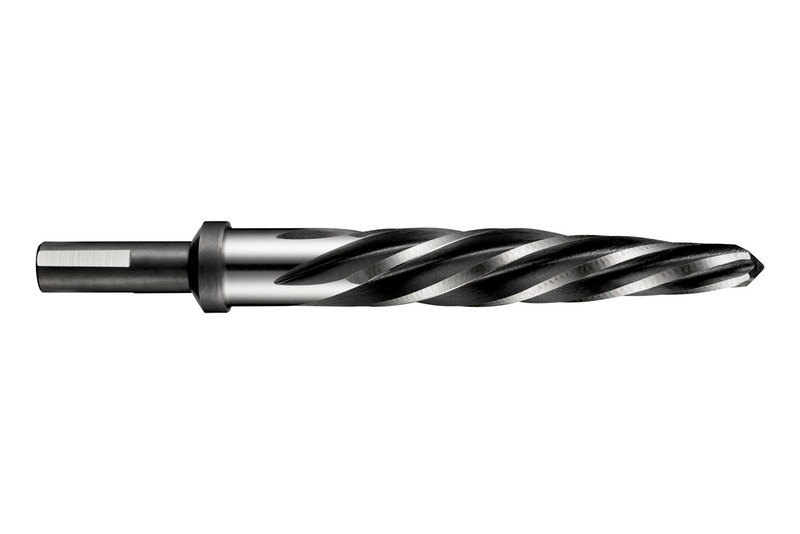

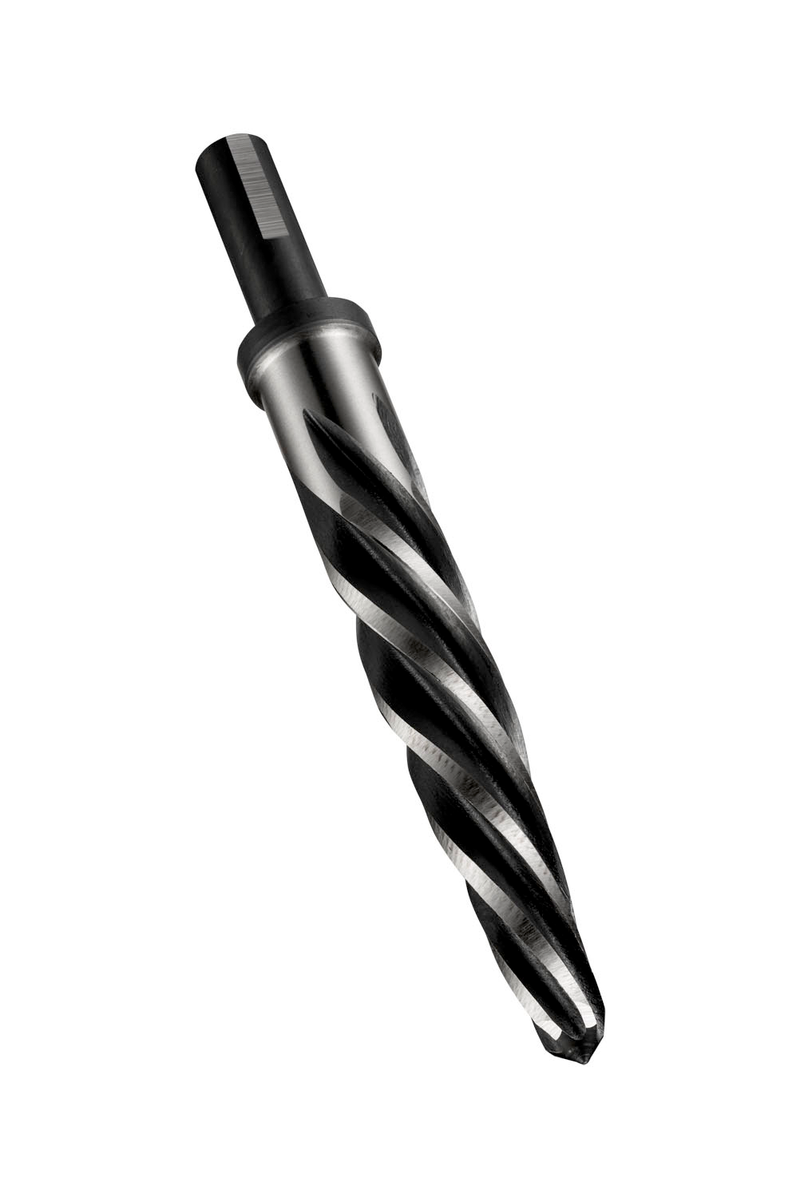

Alésoir automobile à goujures hélicoïdales lentes à gauche et queue Tri-flats réduite, diamètre nominal 0,5000" (1/2") avec une longueur totale de 5,7/8", une longueur de coupe de 3,3/4" et une amorce de 2,5/8", selon la norme ANSI pour l'alésage de trous ou la correction de désalignements, HSS avec finition bronze trempé à la vapeur pour l'usinage d'acier au carbone à usinage libre et ordinaire, de cuivre ou d'alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B1221/2
GradeST/Bronze
Product Number5986446
Product FamilyB122

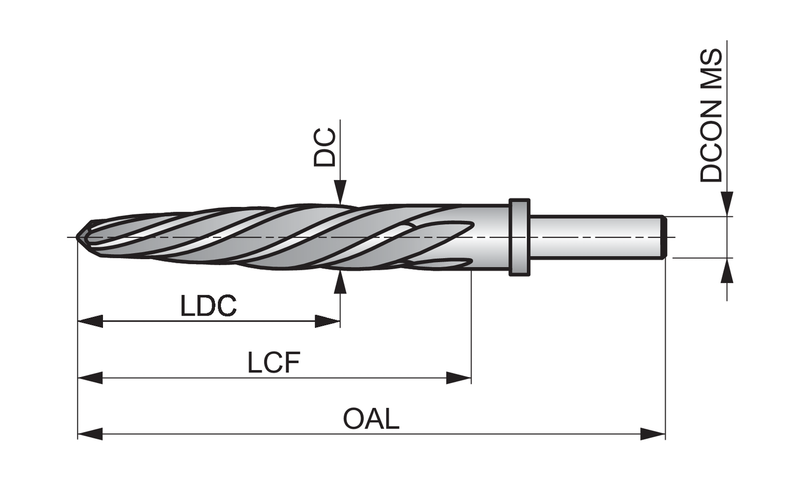

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)5.875"
Overall Length — mm (OAL)149.23 mm
Flute Length — in (LCF)3.75"
Flute Length — mm (LCF)95.25 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)5
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number252376
EAN7320760252376
File Type Download
B1221/2 — Line Drawing PDF Download
