B90110.0
B90110.0
B90110.0

B90110.0

UGC DOR5986448
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$54.37 CAD - $54.37 CAD
$54.37 CAD
$54.37 CAD - $54.37 CAD
$54.37 CAD

Vendu en lots de : 1

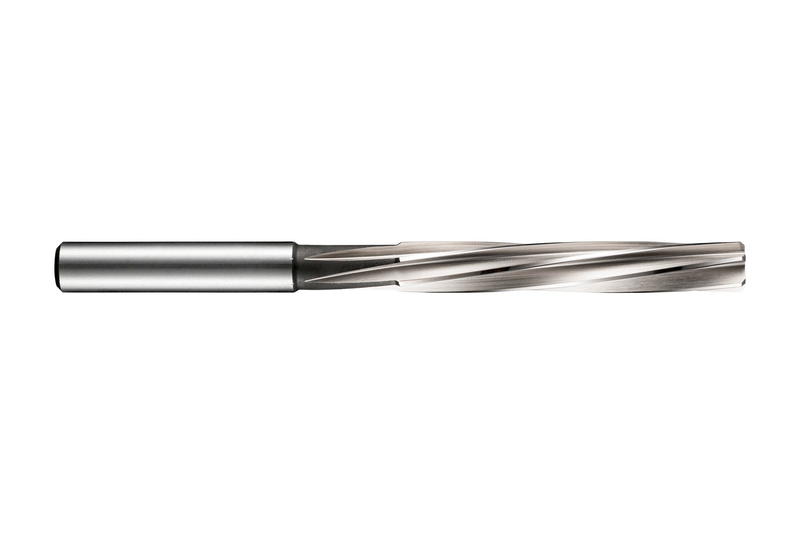

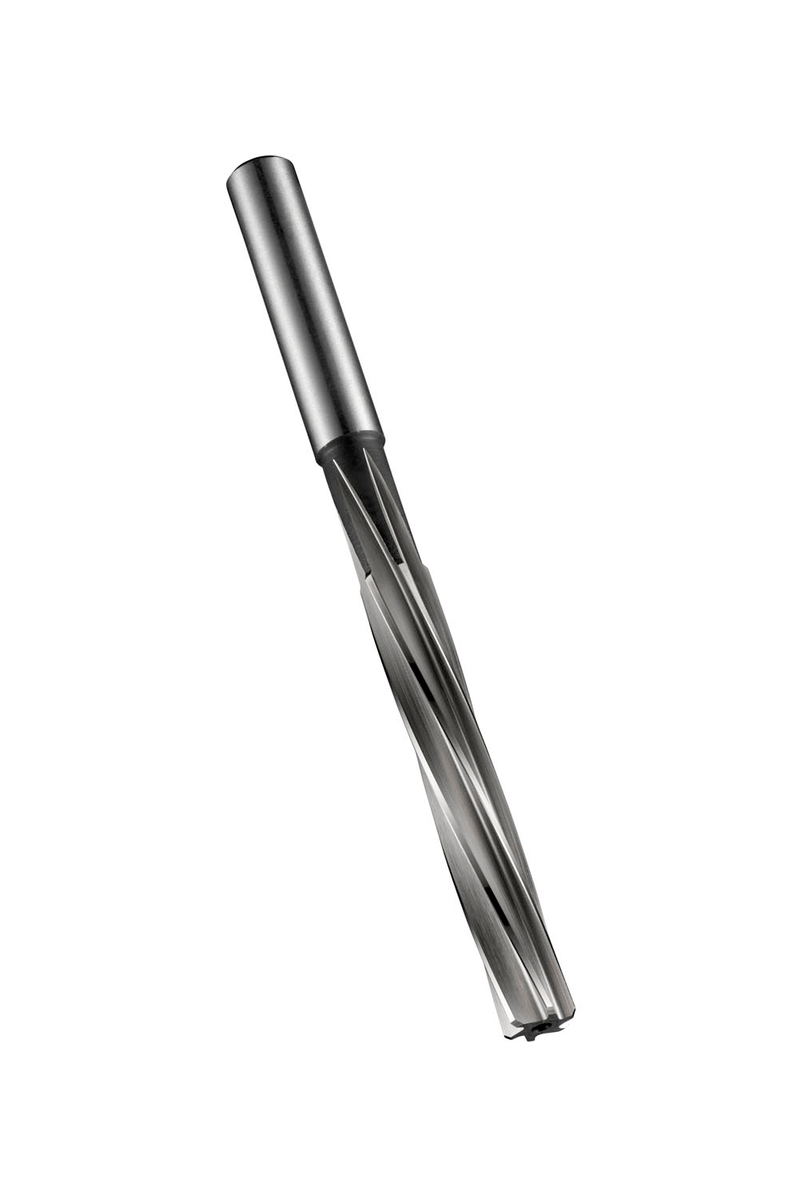

Alésoir machine à spirale lente à gauche et queue cylindrique, diamètre 10.00mm, longueur totale 133mm et longueur de coupe 66mm, conforme à la norme BS 328 pour l'aléser des trous de précision dans la tolérance H7, en HSS-E au cobalt avec finition brillante trempée à la vapeur pour l'usinage des aciers de décolletage, aciers au carbone et alliés, fontes grises et malléables, aluminium et cuivre ou alliages de cuivre corroyés et coulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B90110.0
GradeLumineux/ST
Product Number5986448
Product FamilyB901
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)5.2362"
Overall Length — mm (OAL)133.0 mm
Flute Length — mm (LCF)66.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)6
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardBS 328
Reference Numbers
EDP Number181089
EAN7320760181089
File Type Download
B90110.0 — Line Drawing PDF Download
