B12211/16
B12211/16
B12211/16

B12211/16

UGC DOR5986449
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$178.93 CAD - $178.93 CAD
$178.93 CAD
$178.93 CAD - $178.93 CAD
$178.93 CAD

Vendu en lots de : 1

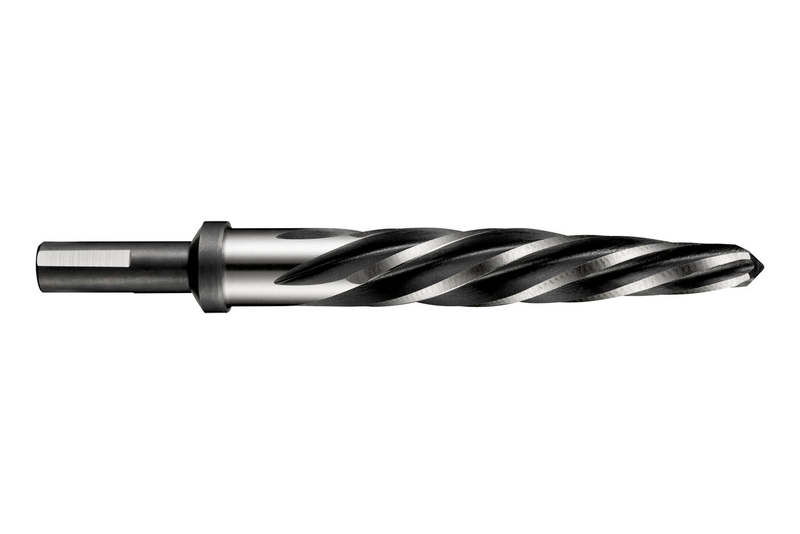

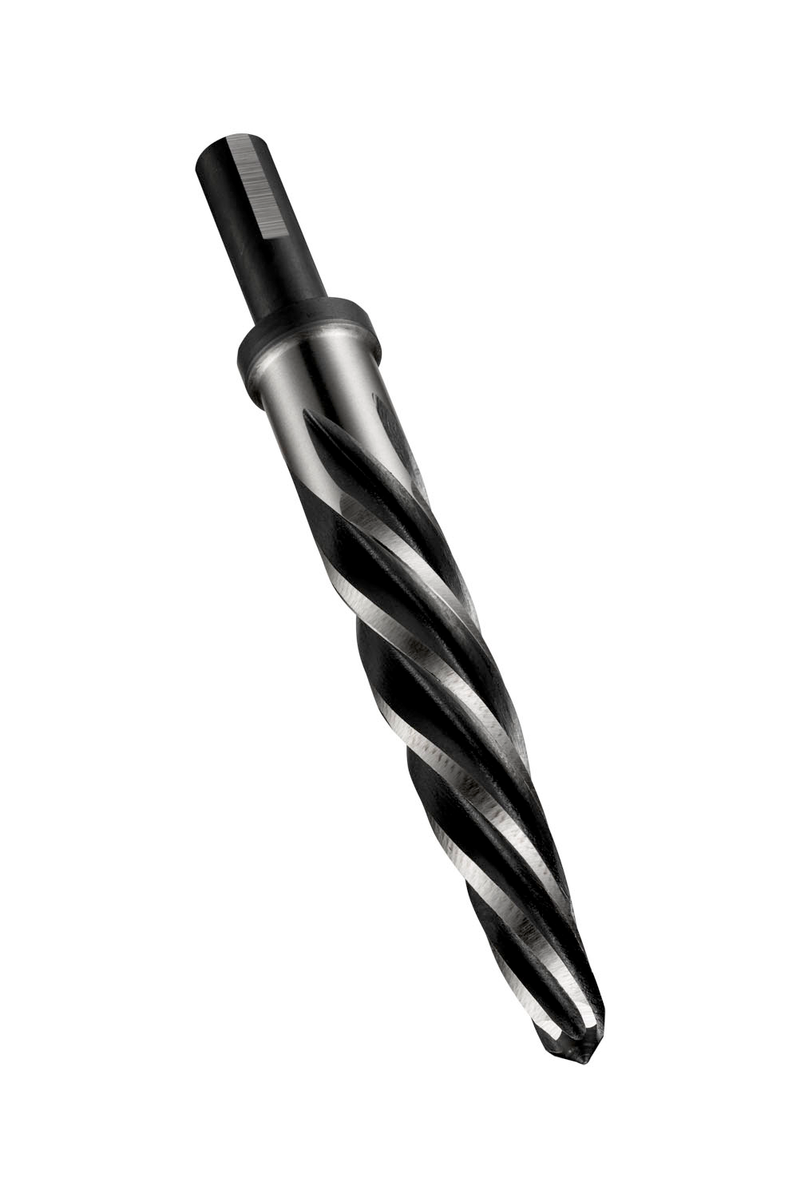

Alésoir automobile à goujures hélicoïdales lentes à gauche et à queue Tri-plats réduite, diamètre nominal 0,6875" (11/16") avec une longueur totale de 6,3/8", une longueur de goujure de 4,1/4" et un cône d'entrée de 3,9/16", conforme à la norme ANSI pour l'élargissement de trous ou la correction de désalignements, en HSS avec finition bronze trempé à la vapeur pour l'usinage des aciers de décolletage et au carbone ordinaire, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B12211/16
GradeST/Bronze
Product Number5986449
Product FamilyB122
Dimensions
Cutting Diameter — in (DC)0.6875"
Cutting Diameter — mm (DC)17.46 mm
Cutting Diameter — Fractional16/11
Overall Length — in (OAL)6.375"
Overall Length — mm (OAL)161.93 mm
Flute Length — in (LCF)4.25"
Flute Length — mm (LCF)107.95 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)5
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number252369
EAN7320760252369
File Type Download

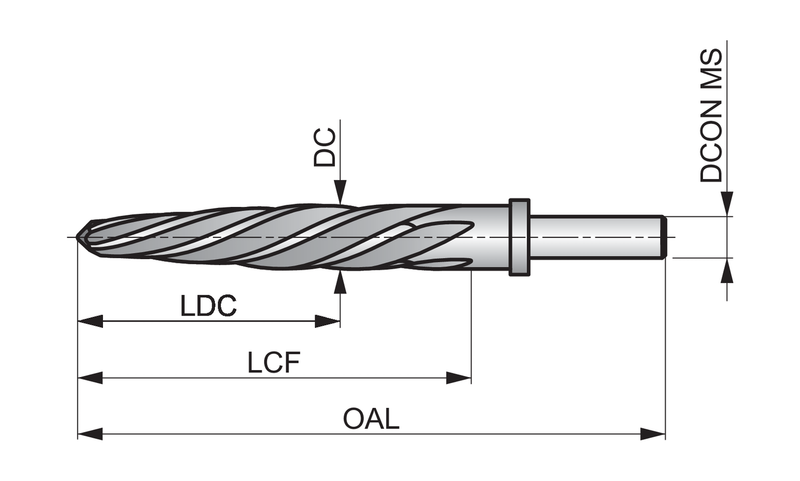

B12211/16 — Line Drawing PDF Download
