B12215/16
B12215/16
B12215/16

B12215/16

UGC DOR5986454
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$235.77 CAD - $235.77 CAD
$235.77 CAD
$235.77 CAD - $235.77 CAD
$235.77 CAD

Vendu en lots de : 1

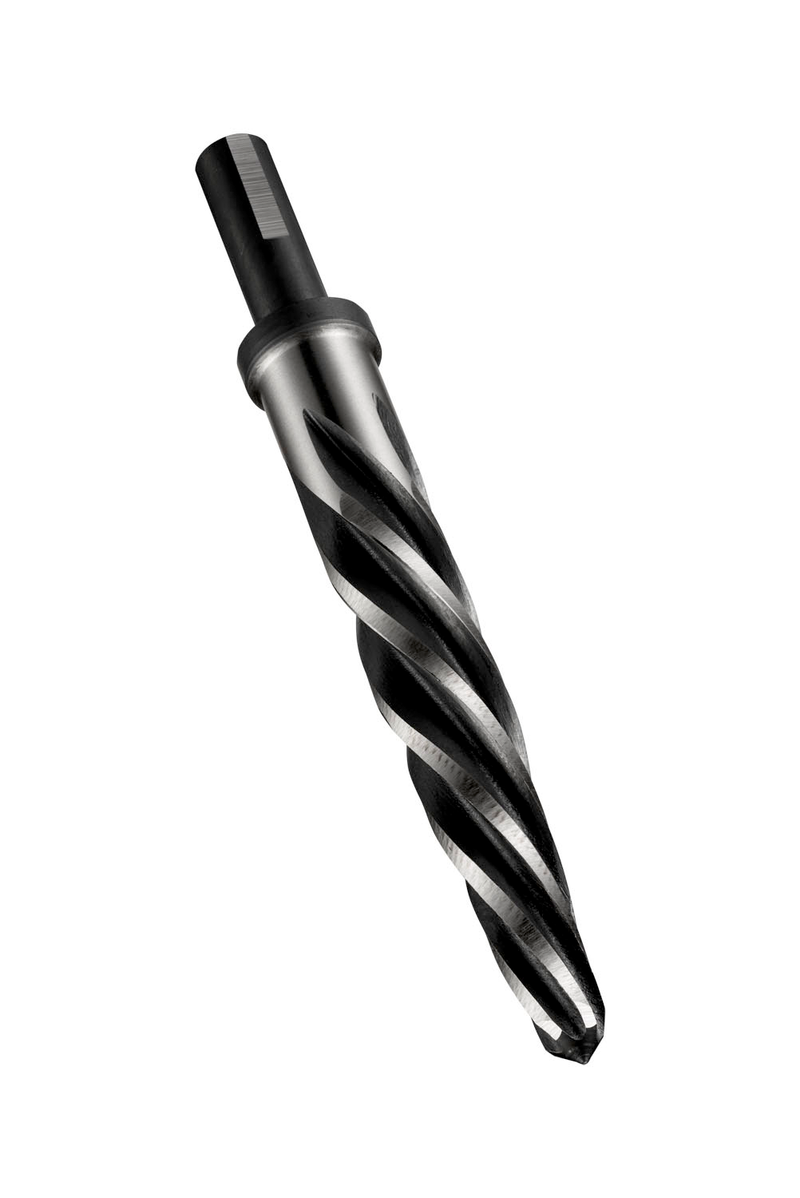

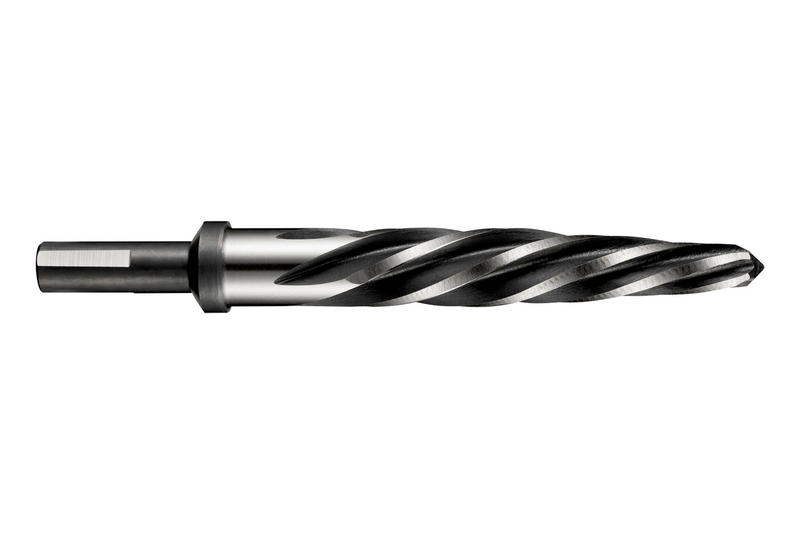

Alésoir automobile avec des goujures hélicoïdales lentes à gauche et une queue réduite à trois pans, diamètre nominal 0,9375" (15/16") avec une longueur totale de 6,7/8", une longueur de goujure de 4,1/2" et un cône de départ de 3,7/8", selon la norme ANSI pour l'élargissement de trous ou la correction de désalignements, HSS avec finition bronze trempé à la vapeur pour l'usinage de l'acier au carbone à usinage facile et ordinaire, du cuivre ou des alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)B12215/16
GradeST/Bronze
Product Number5986454
Product FamilyB122
Dimensions
Cutting Diameter — in (DC)0.9375"
Cutting Diameter — mm (DC)23.81 mm
Cutting Diameter — Fractional15/16
Overall Length — in (OAL)6.875"
Overall Length — mm (OAL)174.63 mm
Flute Length — in (LCF)4.5"
Flute Length — mm (LCF)114.3 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)5
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number252390
EAN7320760252390
File Type Download

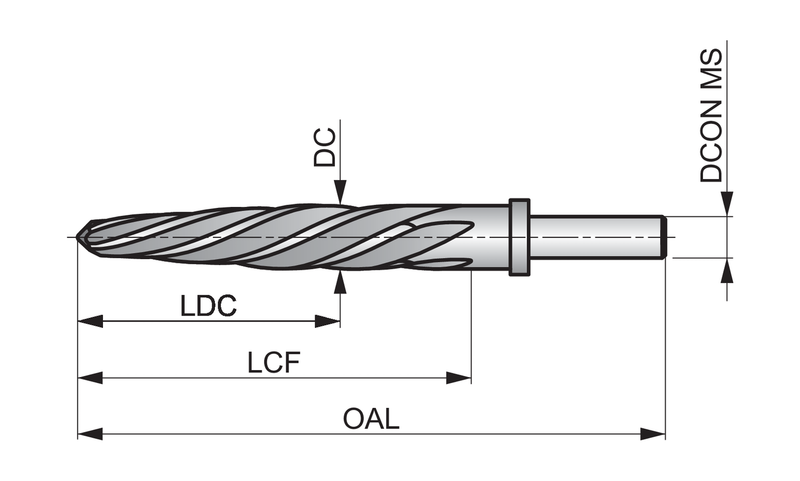

B12215/16 — Line Drawing PDF Download
